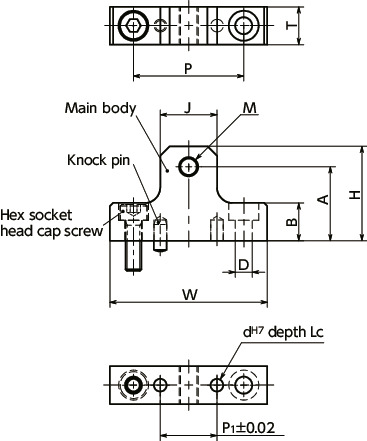

Dimension Drawing
＊： Check the A dimension based on the distance from the mounting surface to the top surface of the table and select accordingly.
Specs/CAD
Unit : mm
| Part Number | W | H | A | B | J | P | P1 | T | M (Fine) Nominal of Thread |
Pitch | D | d | Lc | Hex Socket Head Cap Screw | Knock Pin (Knock Pin Diameter Tolerance m6) |
Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NLSCNS-01-N | 50 | 30 | 23.5 | 12 | 18 | 35 | 18 | 12 | M6 | 0.75 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 83.9 | 68.82 | CAD | Cart |
| NLSCNS-02-N | 50 | 38 | 31.5 | 12 | 18 | 35 | 18 | 12 | M6 | 0.75 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 97.6 | 68.82 | CAD | Cart |
| NLSCNS-03-N | 50 | 43 | 35.5 | 12 | 18 | 35 | 18 | 12 | M6 | 0.75 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 106.1 | 71.85 | CAD | Cart |
| NLSCNS-04-N | 50 | 35 | 27.5 | 12 | 20 | 35 | 18 | 12 | M8 | 1.0 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 94.7 | 68.82 | CAD | Cart |
| NLSCNS-05-N | 50 | 43 | 35.5 | 12 | 20 | 35 | 18 | 12 | M8 | 1.0 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 109.6 | 71.85 | CAD | Cart |
| NLSCNS-06-N | 50 | 45 | 37.5 | 12 | 20 | 35 | 18 | 12 | M8 | 1.0 | 5.5 | 4 | 6 | M5×16 | φ4×10 | 113.5 | 71.85 | CAD | Cart |
| NLSCNS-07-N | 50 | 40 | 32.5 | 16 | 20 | 35 | 18 | 16 | M8 | 1.0 | 6.6 | 4 | 6 | M6×20 | φ4×10 | 152.6 | 77.64 | CAD | Cart |
| NLSCNS-08-N | 50 | 48 | 40.5 | 16 | 20 | 35 | 18 | 16 | M8 | 1.0 | 6.6 | 4 | 6 | M6×20 | φ4×10 | 172.7 | 77.64 | CAD | Cart |
| NLSCNS-09-N | 50 | 51 | 43.5 | 16 | 20 | 35 | 18 | 16 | M8 | 1.0 | 6.6 | 4 | 6 | M6×20 | φ4×10 | 181.3 | 77.64 | CAD | Cart |
| NLSCNS-10-N | 65 | 57 | 49.5 | 16 | 24 | 45 | 20 | 16 | M8 | 1.0 | 9 | 5 | 8 | M8×20 | φ5×12 | 247 | 86.19 | CAD | Cart |
| NLSCNS-11-N | 65 | 63 | 55.5 | 16 | 24 | 45 | 20 | 16 | M8 | 1.0 | 9 | 5 | 8 | M8×20 | φ5×12 | 265.1 | 90.79 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| NLSCNS-N | |
|---|---|
| Main Body | SUS304 |
| Hex Socket Head Cap Screw | SUSXM7 |
| Knock Pin | SUS303 |

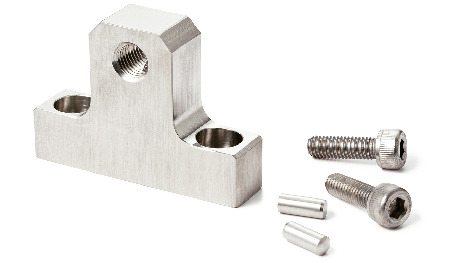

Characteristics
- Stoppers for linear guides with threaded holes (fine) and knock pin mounting holes machined.
- In combination with fine screw thread stopper bolts＊1, fine adjustment of the screw-in depth is easy.
- Knock pins enable easy main body positioning.
- Made of stainless steel. Suitable for environments where corrosion resistance is required.
- Supported rail sizes are 15 mm/20 mm/25 mm/30 mm/35 mm.
- Hex socket head cap screws and knock pins for mounting are provided with all products.
＊1： Stopper bolts are not provided. The customer is asked to prepare them.
Application
Table position adjustmentTable retention and fall prevention
Stoppers for emergencies

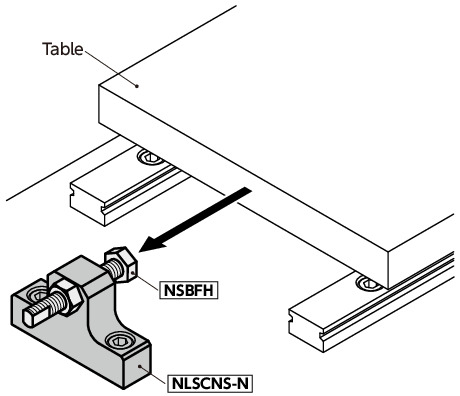

Usage Example
Use the lock nut on the opposite side of the side that receives the force.
