Specs/CAD

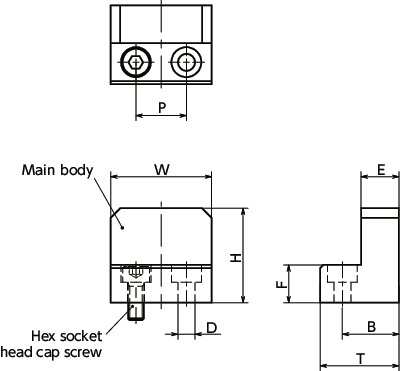

Part Number | W | H | B | E | F | P | T | D | Hex Socket Head Cap Screw | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NLSD-01 | 32 | 30 | 18 | 12 | 12 | 16 | 25 | 5.5 | M5×12 | 126.5 | 33.69 | CAD | Cart |
NLSD-02 | 32 | 38 | 18 | 12 | 12 | 16 | 25 | 5.5 | M5×12 | 150.6 | 33.69 | CAD | Cart |
NLSD-03 | 32 | 45 | 18 | 12 | 12 | 16 | 25 | 5.5 | M5×12 | 171.9 | 35.27 | CAD | Cart |
NLSD-04 | 32 | 35 | 18 | 12 | 12 | 16 | 25 | 5.5 | M5×12 | 141.7 | 33.69 | CAD | Cart |
NLSD-05 | 32 | 40 | 23 | 12 | 12 | 18 | 32 | 6.6 | M6×12 | 177.3 | 35.27 | CAD | Cart |
NLSD-06 | 32 | 50 | 23 | 12 | 12 | 18 | 32 | 6.6 | M6×12 | 209.8 | 38.16 | CAD | Cart |
NLSD-07 | 38 | 57 | 28 | 16 | 16 | 20 | 38 | 9 | M8×16 | 368.9 | 46.85 | CAD | Cart |
NLSD-08 | 45 | 63 | 31 | 16 | 16 | 25 | 45 | 9 | M8×16 | 511.9 | 57.11 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
NLSD | |
---|---|
Main Body | SS400 Ferrosoferric Oxide Film (Black) |
Hex Socket Head Cap Screw | SCM435 Ferrosoferric Oxide Film (Black) |

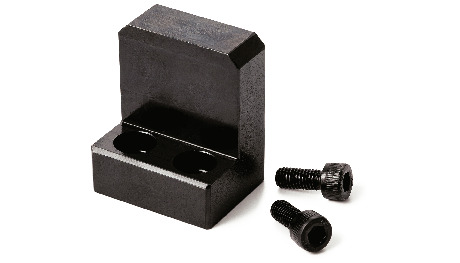

Characteristics
- Stoppers for linear guides.
- Supported rail sizes are 15 mm/20 mm/25 mm/30 mm/35 mm.
- Hex socket head cap screws for mounting are provided with all products.
Application

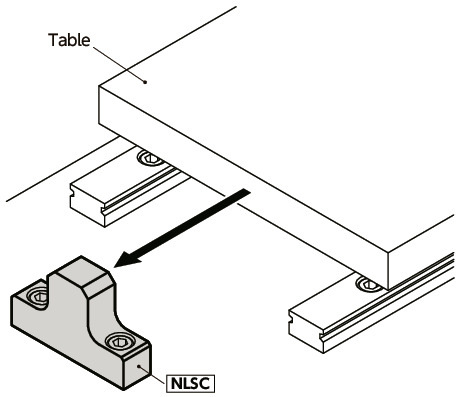

Table retention and fall preventionStoppers for emergencies
