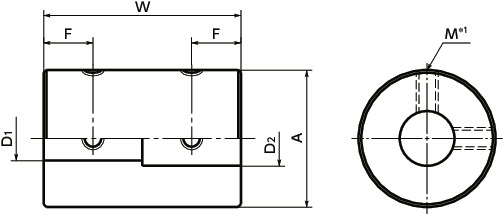

Dimension Drawing
*1: In a case where the bore diameter is φ 4 or less, the set screw is used in only one place.
| Part Number | Max. Bore Diameter (mm) |
Rated Torque＊1 (N・m) | |||
|---|---|---|---|---|---|
| MRG-32-12-12 | 16 | 10 | 19000 | 1.2×10-5 | 71 |
＊1： Correction of rated torque due to load fluctuation is not required.
＊2： These are values with max. bore diameter.
Additional Modification Service
Modified Part Number
Enter the desired bore diameter and then click [Check Modified Part Number].
| Standard bore diameter(D1) | Standard bore diameter(D2) | Modified Part Number | Price | Add to cart |
|---|---|---|---|---|
|
mm
in.
|
mm
in.
|
Cart |
| Applicable Bore Diameter D1D2 |
keyway | Key | |||||||
|---|---|---|---|---|---|---|---|---|---|
| b | t | Nominal Dimension b×h |
|||||||
| Standard Dimension | Allowance (JS9) |
Standard Dimension | Allowance | ||||||
| 6 | 7 | 2 | ±0.0125 | 1.0 | +0.1 0 |
2×2 | |||
| 8 | 9 | 10 | 3 | ±0.0125 | 1.4 | 3×3 | |||
| 11 | 12 | 4 | ±0.0150 | 1.8 | 4×4 | ||||
| 13 | 14 | 15 | 16 | 17 | 5 | ±0.0150 | 2.3 | 5×5 | |
| 18 | 19 | 20 | 22 | 6 | ±0.0150 | 2.8 | 6×6 | ||
| 24 | 25 | 28 | 30 | 8 | ±0.0180 | 3.3 | +0.2 0 |
8×7 | |
| 32 | 35 | 36 | 38 | 10 | ±0.0180 | 3.3 | 10×8 | ||
| 40 | 42 | 44 | 12 | ±0.0215 | 3.3 | 12×8 | |||
| 45 | 48 | 50 | 14 | ±0.0215 | 3.8 | 14×9 | |||
| 55 | 16 | ±0.0215 | 4.3 | 16×10 | |||||
| Standard Inch Bore Diameter D1D2 |
Keyway | |||
|---|---|---|---|---|
| Wk | T | |||
| Standard Dimension | Allowance | Standard Dimension | Allowance | |
| 1/2 | 1/8 | +0.002 0 |
0.560 | +0.01 0 |
| 9/16 | 1/8 | +0.002 0 |
0.623 | +0.01 0 |
| 5/8 | 3/16 | +0.002 0 |
0.709 | +0.01 0 |
| 11/16 | 3/16 | +0.002 0 |
0.773 | +0.01 0 |
| 3/4 | 3/16 | +0.002 0 |
0.837 | +0.01 0 |
| 13/16 | 3/16 | +0.002 0 |
0.900 | +0.01 0 |
| 7/8 | 3/16 | +0.002 0 |
0.964 | +0.01 0 |
| 15/16 | 1/4 | +0.002 0 |
1.051 | +0.01 0 |
| 1 | 1/4 | +0.002 0 |
1.114 | +0.01 0 |
| 1-1/8 | 1/4 | +0.002 0 |
1.241 | +0.01 0 |
| 1-1/4 | 1/4 | +0.002 0 |
1.367 | +0.01 0 |
| 1-3/8 | 5/16 | +0.002 0 |
1.518 | +0.01 0 |
| 1-1/2 | 3/8 | +0.002 0 |
1.669 | +0.01 0 |
| 1-5/8 | 3/8 | +0.002 0 |
1.796 | +0.01 0 |
| 1-3/4 | 3/8 | +0.002 0 |
1.922 | +0.01 0 |
- Refer to the "Couplicon Bore Diameter Additional Modification Service" for more information.
- BT： Additional modification of bore
- KT： Metric Keyway Modification (JIS Standard)
- KA： Inch Keyway Modification (AGMA Standard)
Characteristics
- Applicable motors
| MRG | MRGS | |
|---|---|---|
| Servomotor | ◎ | ◎ |
| Stepping Motor | ◎ | ◎ |
| General-purpose Motor | ● | ● |
- Property
| MRG | MRGS | |
|---|---|---|
| Zero Backlash | ◎ | ◎ |
| High Torque | ◎ | ○ |
| High Torsional Stiffness | ◎ | ◎ |
| Corrosion Resistance (All S.S.) | - | ◎ |
- This is a rigid type coupling.
- Light weight and ultra small moment of inertia. High response. High response.
- There are two types of units made of aluminum alloy or all stainless steel.
- There are three attachment methods: set screw type, clamping type, and split type.
Material/Finish
| MRG | |
|---|---|
| Main Body | A2017 Anodized |
| Hex Socket Set Screw | SCM435 Ferrosoferric Oxide Film (Black) |
| Hex Socket Head Cap Screw | SCM435 Ferrosoferric Oxide Film (Black) |
Structure

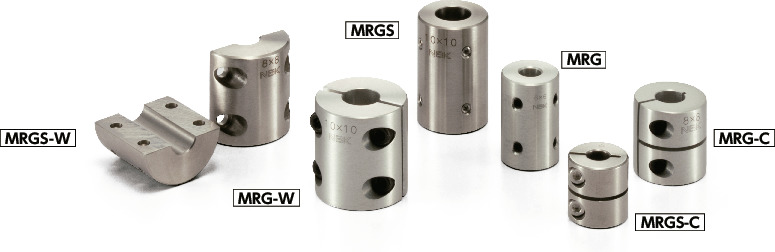

Set Screw Type
MRG Aluminum alloyMRGMRGS
Clamping Type
MRG-C Aluminum alloyMRG-CMRGS-C
Split Type
MRG-W Aluminum alloyMRG-WMRGS-W
Application
High precision XY stage / Machine tool / Cleaning equipmentSelection

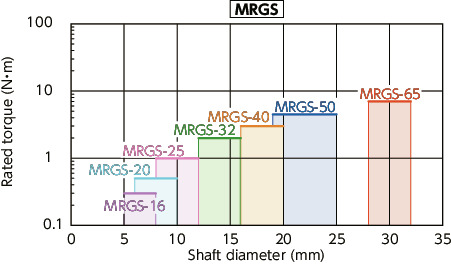

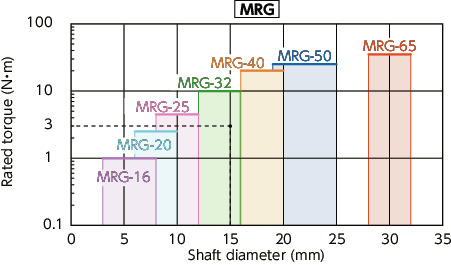

Selection Based on Shaft Diameter and Rated Torque
The area bounded by the shaft diameter and rated torque indicates the selection size.
