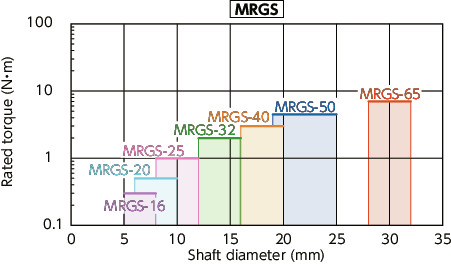

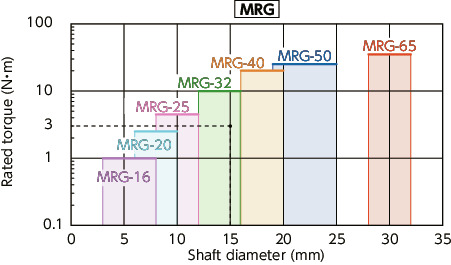

|Part Number||Max. Bore Diameter
|Max. Rotational Frequency
|Moment of |
＊1： Correction of rated torque due to load fluctuation is not required.
＊2： These are values with max. bore diameter.

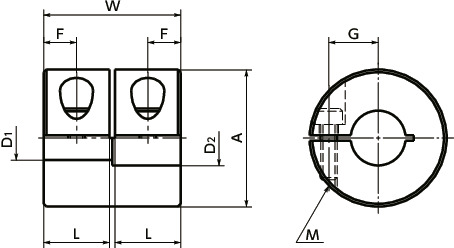

|Part Number||Standard Bore Diameter D1･D2|
● All products are provided with hex socket set screws.
● Recommended tolerance for shaft diameters is h6 and h7.
● Bore and keyway modifications are available on request. Please take advantage of our modification services.

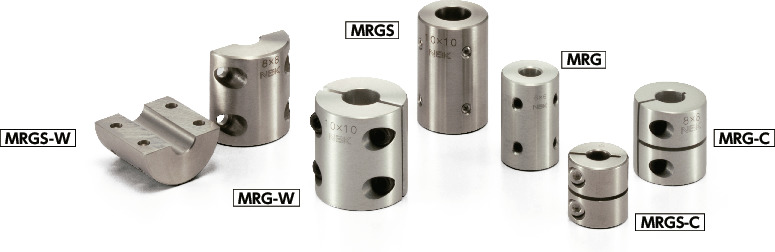

Set Screw TypeMRG Aluminum alloyMRGMRGS
MRGSMade of all stainless steelMRGMRGS
Clamping TypeMRG-C Aluminum alloyMRG-CMRGS-C
MRGS-CMade of all stainless steelMRG-CMRGS-C
Split TypeMRG-W Aluminum alloyMRG-WMRGS-W
MRGS-WMade of all stainless steelMRG-WMRGS-W
|Hex Socket Set Screw||SUSXM7|
|Hex Socket Head Cap Screw||SUSXM7|
- Recommended Applicable Motor
|High Torsional Stiffness||◎||◎|
|Corrosion Resistance (All S.S.)||-||◎|
- This is a rigid type coupling.
- Light weight and ultra small moment of inertia. High response. High response.
- There are two types of units made of aluminum alloy or all stainless steel.
- There are three attachment methods: set screw type, clamping type, and split type.
ApplicationHigh precision XY stage / Machine tool / Cleaning equipment
Precautions for UseIn case of mounting on D-cut shaft, be careful about the position of the D-cut surface of the shaft. ⇒Mounting and Maintenance
There are sizes where the hex socket head bolt exceeds the outer diameter of the coupling and the rotating diameter is larger than the outer diameter. Please be careful of the interference of coupling. Rotation Diameter
