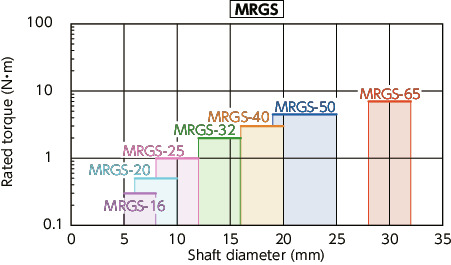

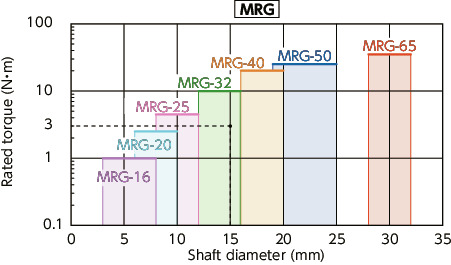

|Max. Bore Diameter
＊1： Correction of rated torque due to load fluctuation is not required.
＊2： These are values with max. bore diameter.
- Recommended Applicable Motor
|High Torsional Stiffness
|Corrosion Resistance (All S.S.)
- This is a rigid type coupling.
- Light weight and ultra small moment of inertia. High response. High response.
- There are two types of units made of aluminum alloy or all stainless steel.
- There are three attachment methods: set screw type, clamping type, and split type.
|Hex Socket Set Screw
|Hex Socket Head Cap Screw

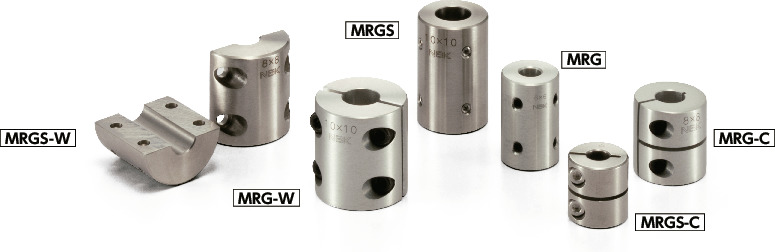

Set Screw TypeMRG Aluminum alloyMRGMRGSMRGSMade of all stainless steelMRGMRGS
Clamping TypeMRG-C Aluminum alloyMRG-CMRGS-CMRGS-CMade of all stainless steelMRG-CMRGS-C

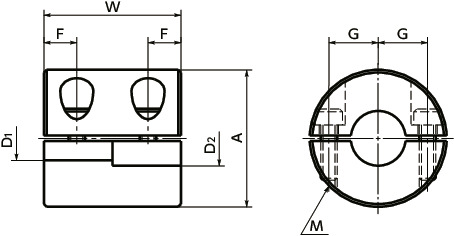

Split TypeMRG-W Aluminum alloyMRG-WMRGS-WMRGS-WMade of all stainless steelMRG-WMRGS-W
ApplicationHigh precision XY stage / Machine tool / Cleaning equipment
Precautions for UseIn case of mounting on D-cut shaft, be careful about the position of the D-cut surface of the shaft. ⇒Mounting and Maintenance
There are sizes where the hex socket head bolt exceeds the outer diameter of the coupling and the rotating diameter is larger than the outer diameter. Please be careful of the interference of coupling. Rotation Diameter
