• Couplings
  • Rigid Type

XRP

Rigid Couplings - Clamping Type

  • High-precision
  • Coaxiality 3 μm or less
  • Run out 50 μm or less

Part Number Standard Bore Diameter D1・D2
XRP-16C-5-5 5-5
5-6
6-6
XRP-16C-5-6 5-5
5-6
6-6
XRP-16C-6-6 5-5
5-6
6-6
XRP-19C-6-6 6-6
6-8
8-8
XRP-19C-6-8 6-6
6-8
8-8
XRP-19C-8-8 6-6
6-8
8-8
XRP-24C-8-8 8-8
8-10
10-10
XRP-24C-8-10 8-8
8-10
10-10
XRP-24C-10-10 8-8
8-10
10-10
XRP-34C-10-10 10-10
10-12
12-12
XRP-34C-10-12 10-10
10-12
12-12
XRP-34C-12-12 10-10
10-12
12-12
XRP-39C-12-12 12-12
12-14
15-15
XRP-39C-12-14 12-12
12-14
15-15
XRP-39C-15-15 12-12
12-14
15-15

● All products are provided with hex socket head cap screw.
● Recommended tolerance for shaft diameters is h6.
● Bore and keyway modifications are available on request. Please contact our customer service.

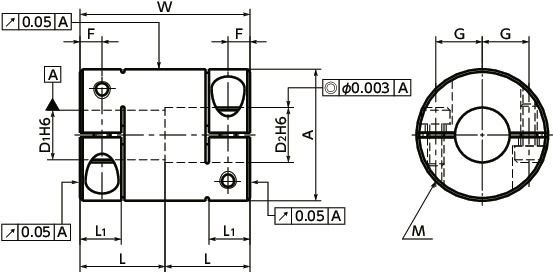

Dimension Drawing

XRPRigid Couplings - Clamping Type寸法図

Specs/CAD

Part Number ALL1WFGM Screw Tightening
Torque (N・m)
Standard Bore Diameter
D1-D2
Price
(USD)
CAD Add to Cart
XRP-16C 16 10 5 20 2.6 5 M2 0.5 86.91 CAD Cart
XRP-19C 19 13 6.5 26 3.5 6.25 M2.5 1 89.09 CAD Cart
XRP-24C 24 15 7 30 3.75 7.75 M3 1.5 103.14 CAD Cart
XRP-34C 34 20 8 40 4 12 M3 1.5 115.44 CAD Cart
XRP-39C 39 24 10 48 5 14.5 M4 2.5 130.91 CAD Cart

Part Number Max. Bore Diameter
(mm)
Rated
Torque*1
(N・m)
Max. Rotational Frequency
(min-1)
Moment of
Inertia
(kg・m2)*2
Mass
(g) *2
XRP-16C 6 1 39000 3.1×10-7 9
XRP-19C 8 2.5 33000 8.0×10-7 15
XRP-24C 10 4.5 26000 2.7×10-6 32
XRP-34C 15 7.5 18000 1.4×10-5 87
XRP-39C 18 10 16000 3.9×10-5 140

*1: Correction of rated torque due to load fluctuation is not required. For more detailed information, please refer to Selection Guidelines.
*2: These are values with max. bore diameter.

Part Number Standard Bore Diameter D1・D2
XRP-16C 5-5 5-6 6-6
XRP-19C 6-6 6-8 8-8
XRP-24C 8-8 8-10 10-10
XRP-34C 10-10 10-12 12-12
XRP-39C 12-12 12-14 15-15

● All products are provided with hex socket head cap screw.
● Recommended tolerance for shaft diameters is h6.
● Bore and keyway modifications are available on request. Please contact our customer service.

Material/Finish

XRP-C
Main Body A7075
Hex Socket Head Cap Screw SCM435
Ferrosoferric Oxide Film (Black)

Structure

Clamping Type

XRP-C XRP

XRP_CRigid Couplings


Characteristics

  • Recommended Applicable Motor
XRP-C
Servomotor
Stepping Motor
General-purpose Motor

◎: Excellent ○: Very good ●: Available

  • Property
XRP-C
Zero Backlash
High Torque
High Torsional Stiffness

◎: Excellent ○: Very good

  • This is a high precision rigid coupling.
  • Coaxiality, bore diameter, and run out have been pursued to the ultimate level.
  • An inspection report is attached to all products before shipment.
  • Light weight and ultra small moment of inertia. High response. High response.
  • This is a shaft fastening structure with consideration of rotational balance and unbalance is ultra small.
  • Extra super duralumin (A7075) featuring the highest strength among aluminum alloy is adopted.

Application

High precision measurement device / High precision XY stage / Encoder

Precautions for Use

In case of mounting on D-cut shaft, be careful about the position of the D-cut surface of the shaft. ⇒Mounting and Maintenance
There are sizes where the hex socket head bolt exceeds the outer diameter of the coupling and the rotating diameter is larger than the outer diameter. Please be careful of the interference of coupling.


Selection

Selection Based on Shaft Diameter and Rated Torque

The area bounded by the shaft diameter and rated torque indicates the selection size.

XRP_CRigid Couplings

Selection Example

In case of selected parameters of shaft diameter of φ14 and load torque of 9 N・m, the selected size is XRP-39C.

Commitment to high precision

  • The coaxiality of both bores is not more than 3 μm.
  • Bore diameter tolerance is H6.
  • Radial run out and run out of end face against bore are not more than 50μm.

XRP_CRigid Couplings

Precision assurance by total inspection that uses 3D measurement device

  • The inspection is conducted in an environment of constant temperature and humidity.
  • Inspection item:
    Bore diameters D1 and D2
    Coaxiality of bores D1 and D2
    Radial run out and run out of end face against bore


  • 3D measurement device:
    UPMC850CARAT SuperAcc made by Carl Zeiss
    Measurement precision Max. allowable instruction error 0.7+L/600μm
    Max. allowable probing error 0.6μm
    Measurement environment Temperature 20±1°C
    Humidity 50±10%

XRP_CRigid Couplings
