||Screw Tightening |
Torque (lbf in.)
||Add to Cart

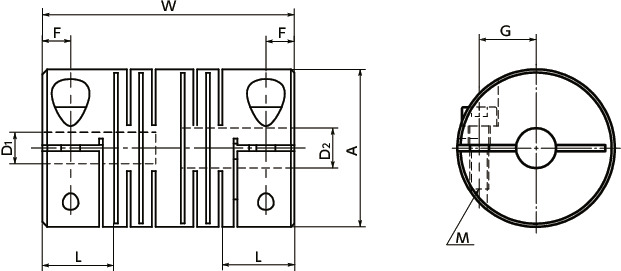

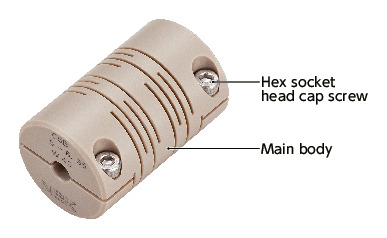

● All products are provided with hex socket head cap screw.
|Max. Rotational Frequency
|Moment of |
|Max. Lateral Misalignment|
|Max. Axial |
＊1： Correction of rated torque due to load fluctuation is not required. For more detailed information, please refer to Selection Guidelines.
|Main Body||PEEK (Polyether Ether Ketone)|
|Hex Socket Head Cap Screw||SUSXM7|

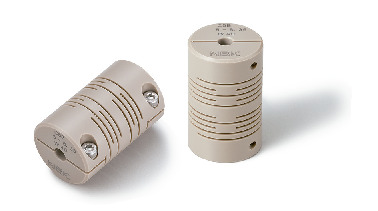

- This is a resin spring coupling with single-piece construction.
- PEEK superior in physical properties and electrical insulation is adopted.
- A plate spring formed by a slit allows eccentricity, angular misalignment, and end-play to be accepted.
|Allowable Operating Temperature||-20℃ to 120℃|
ApplicationHigh Frequency Power Supply / Matching Box
Precautions for Use
Mounting on a D-cut shaftAs a rule, use round shafts.
If a D-cut shaft is used, excessive load may be applied depending on the mounting position of the D-cut side due to hex socket head cap screw tightening, which may result in damage to the coupling.
When using a D-cut shaft, install it so that the D-cut surface of the shaft does not get caught in the coupling slit as much as possible as shown below.
