Stages
About Stages
Manual stages are machine elements in which the stage feed is manual, enabling fixing and position adjustment at any location.
They are mainly used in optical and precision machinery fields, where precise positioning is called for.
NBK offers linear, rotary, and gonio types.
| Image |  |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|

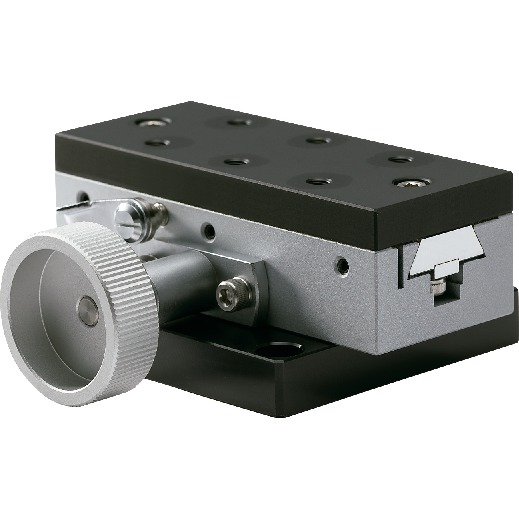

| Part Name | Miniature X-axis Rack-and-Pinion Stages | Miniature X / Y-axis Rack-and-Pinion Stages | Miniature Z-axis Rack-and-Pinion Stages | X-axis Rack-and-Pinion Stages | Miniature X-axis Rack-and-Pinion Stages | Precision X-axis Rack-and-Pinion Stages | Precision Rotary Stages | Precision Rotary Stages | X-axis Screw Stages |
| Part Number | TAR-X | TAR-XY | TAR-Z | TAR | TAR-25 | TAR-D | TKSP | TAKS | TAS |
| Feature | X-axis | X-axis Y-axis |
Z-axis | X-axis | X-axis | X-axis | Rotation | Rotation | X-axis |
| stage | 25×50 | 25×50 | 25×50 | 34×60 | 25×30 | 38×60 | φ60 | φ98 | 24×30 |
| move | ±10 | ±10 | ±10 | ±15 | ±25 | - | - | - | ±4 |
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
| List | TAR-2550X | TAR-2550XY | TAR-2550Z | TAR-60 TAR-80 | TAR-25121 TAR-25161 TAR-2581 | TAR-60D TAR-80D | TKSP-60 | TAKS-100 | TAS-30 TAS-60 |
| Image |  |
 |
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|---|---|---|
| Part Name | XY-axis Screw Stages | Miniature X-axis Block Stages | Miniature XY-axis Block Stages | X-axis Aluminum Cross Roller Stages | XY-axis Aluminum Cross Roller Stages | X-axis Tilting Stages | Jackscrew | ||
| Part Number | TAS-XY | TAS-1 | TAS-2 | TAM-S | TAM-SXY | TGOH | TLJK | ||
| Feature | X-axis Y-axis |
X-axis | X-axis Y-axis |
X-axis High Precision |
X-axis Y-axis High Precision |
X-axis | Z-axis Suitable for Heavy Load |
||
| stage | 24×30 | 25×25 | 25×25 | 40×40 | 40×40 | 25×25 | 80×132 | ||
| move | ±4 | ±3 | ±3 | ±6.5 | ±6.5 | ±20° | 22 | ||
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | ||
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | ||
| List | TAS-30XY TAS-60XY | TAS-251 TAS-401 | TAS-252 TAS-402 | TAM-100S TAM-120S TAM-40S TAM-60S | TAM-100SXY TAM-120SXY TAM-40SXY TAM-60SXY | TGOH-251 TGOH-6 TGOHN-3 | TLJK-1 TLJK-2 TLJK-3 |
