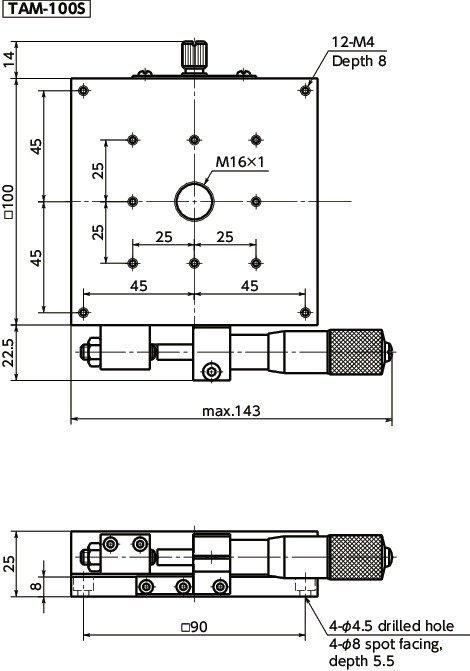

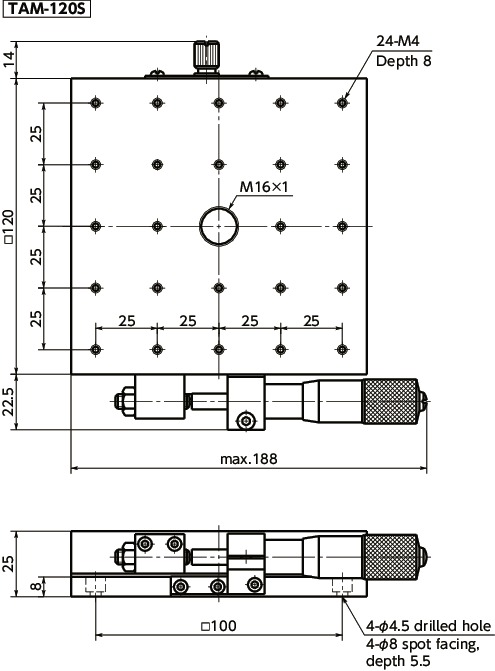

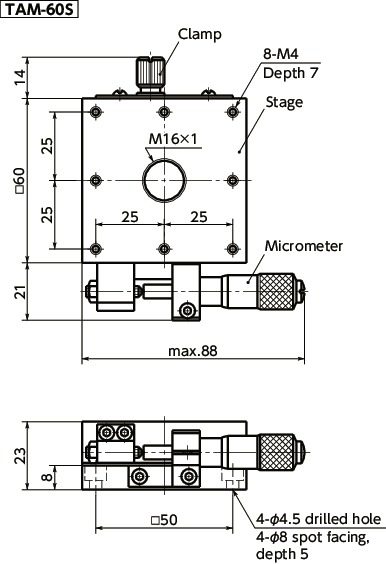

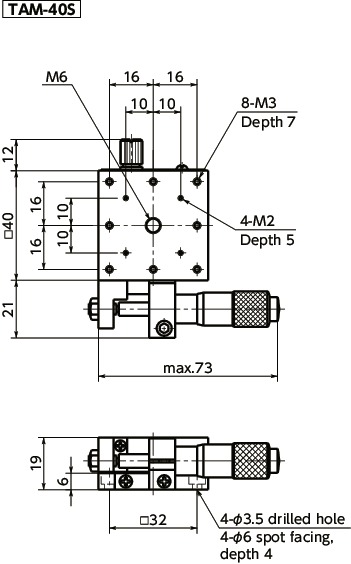

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Stage Face | Travel Guide | Travel Distance | Mass (g) |
Straightness | Pitch | Yaw | Parallelism | Moving Parallelism | Display Resolution | Position Resolution | Withstand Load (N) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAM-40S | 40×40 | V-groove Rail and Cross Roller System | ±6.5 | 200 | 0.002 | 40'' | 25'' | 0.03 | 0.01 | 0.01 | 0.003 | 49 | 851.80 | CAD | Cart |
| TAM-60S | 60×60 | V-groove Rail and Cross Roller System | ±6.5 | 300 | 0.002 | 25'' | 15'' | 0.03 | 0.01 | 0.01 | 0.003 | 196 | 954.18 | CAD | Cart |
| TAM-100S | 100×100 | V-groove Rail and Cross Roller System | ±12.5 | 900 | 0.002 | 25'' | 15'' | 0.05 | 0.015 | 0.01 | 0.003 | 490 | 1,123.87 | CAD | Cart |
| TAM-120S | 120×120 | V-groove Rail and Cross Roller System | ±20 | 1300 | 0.002 | 40'' | 25'' | 0.05 | 0.015 | 0.01 | 0.003 | 588 | 1,354.87 | CAD | Cart |
●Cross-recessed head machine screws for mounting (M3×6…TAM-40S and M4×8…TAM-60S, TAM-100S, TAM-120S) are supplied.
●TAM-100S and TAM-120S are not RoHS directive compliant as of Oct. 1, 2008. See here for RoHS directive details.
Material/Finish
| TAM-S | |
|---|---|
| Stage | Aluminum Alloy Anodized (Black) |
| Main body | Aluminum Alloy Anodized (Black) |

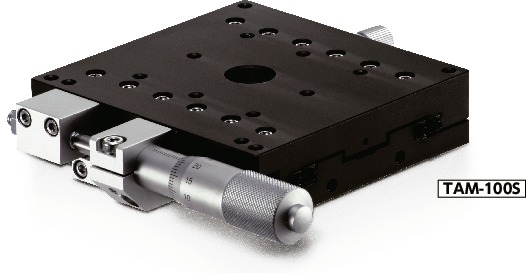

Characteristics
- 4 stage size types.
- Made of Aluminum. Light weight.
- For travel guide, V-groove rail and cross roller system are adopted. It is high-precision.
- Feed system by micrometer. Feeding display resolution is 0.01 mm.
Mounting
- Turn the micrometer right to feed the stage to the end.
- Then two mounting holes appear. Temporarily fix it with the supplied screws.
- Turn the micrometer right to return the stage back.
- Then two mounting holes appear. Temporarily fix it with the supplied screws.
- Check the position and then fix it.
Mounting parts are supplied with each product.
| Part Number | Supplied Items |
|---|---|
| TAM-40S | Pan Head Machine Screw (M3 x 6) and Spring Washer |
| TAM-60S | Hex Socket Head Cap Screw (M4 x 8) |
| TAM-100S | Hex Socket Head Cap Screw (M4 x 8) and Spring Washer |
| TAM-120S | Hex Socket Head Cap Screw (M4 x 8) and Spring Washer |
