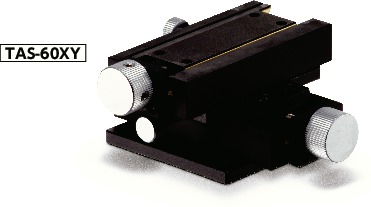

TAS-XY

XY-axis Screw Stages

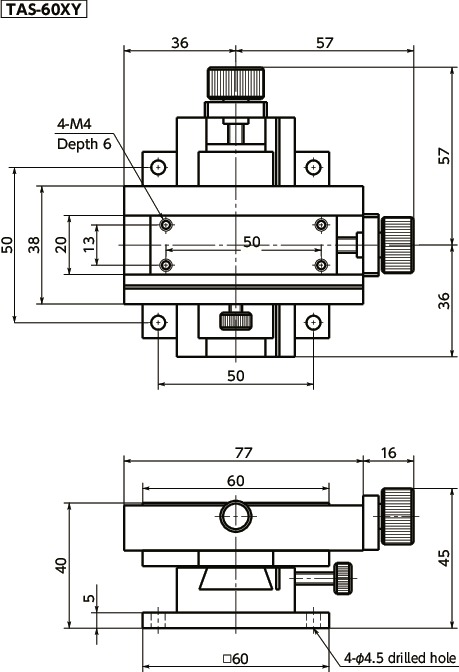

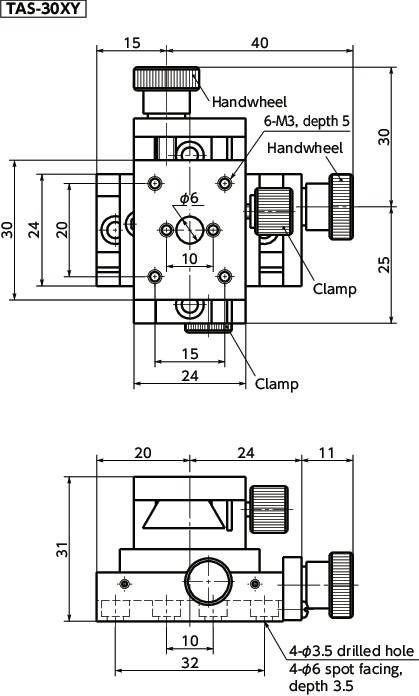

Dimension Drawing

TAS-XYXY-axis Screw Stages寸法図

TAS-XYXY-axis Screw Stages寸法図

Specs/CAD

Unit : mm

Part Number Stage Face Travel Guide Travel Distance Screw Pitch Mass
(g)
Straightness Parallelism Position Resolution Withstand Load
(N)
Price
(USD)
CAD
Download
Add to Cart
TAS-30XY 24×30 Dovetail Groove Method ±4 0.5 400 0.02 0.1 0.01 68.7 652.52 CAD Cart
TAS-60XY 18×60 Dovetail Groove Method ±7.5 0.5 900 0.02 0.1 0.01 147 799.69 CAD Cart

●Hex socket head cap screws for mounting (M3×6…TAS-30XY and M4×10…TAS-60XY) are supplied.

Material/Finish

TAS-30XY TAS-60XY
Stage Brass
Black chrome plating
Brass
Black chrome plating
Main body Brass
Coating (Silver)
Brass
Coating (Black)
Lower surface
spacer
Aluminum Alloy
Alumite Treatment (Black)
Aluminum Alloy
Alumite Treatment (Black)

Characteristics

  • Two axes (X and Y axes) can be moved.
  • Screws are used for micromotion feed.
  • Dovetail groove method is adopted for the travel guide. A rattle correction function is provided.

Precautions for Use

TAS-60XY has the feeding handwheel above the stage surface. There may be interference depending on the shape of work fixed on the stage.
