• Stages

TAS

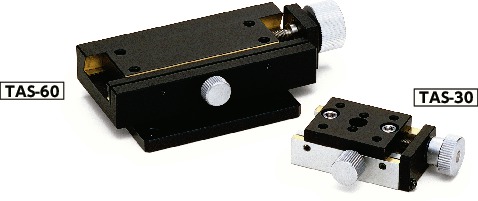

X-axis Screw Stages

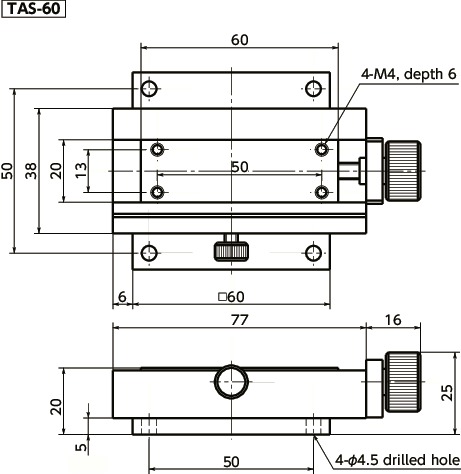

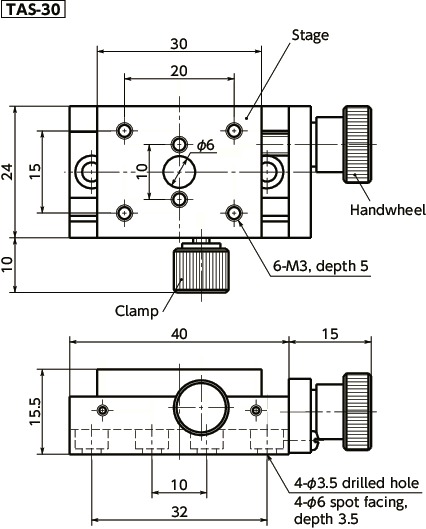

Dimension Drawing

TASX-axis Screw Stages寸法図

TASX-axis Screw Stages寸法図

Specs/CAD

Unit : mm

Part Number Stage Face Travel Guide Travel Distance Screw Pitch Mass
(g)
Straightness Parallelism Position Resolution Withstand Load
(N)
Price
(USD)
CAD
Download
Add to Cart
TAS-30 24×30 Dovetail Groove Method ±4 0.5 200 0.02 0.05 0.01 68.7 305.45 CAD Cart
TAS-60 18×60 Dovetail Groove Method ±7.5 0.5 500 0.02 0.05 0.01 147 374.86 CAD Cart

●Hex socket head cap screws for mounting (M3×6…TAS-30 and M4×10…TAS-60) are supplied.

Material/Finish

TAS-30 TAS-60
Stage Brass
Black chrome plating
Brass
Black chrome plating
Main body Brass
Coating (Silver)
Brass
Coating (Black)
Lower surface
spacer
Aluminum Alloy
Alumite Treatment (Black)
Aluminum Alloy
Alumite Treatment (Black)

Characteristics

  • Screws are used for micromotion feed.
  • Dovetail groove method is adopted for the travel guide. A rattle correction function is provided.

Precautions for Use

TAS-60 has the feeding handwheel above the stage surface. There may be interference depending on the shape of work fixed on the stage.
