Characteristics
- Collars for Wireless Positioning Units EPU-200 (EPU-200).
-
These collars can adapt bore diameter of Wireless Positioning Units EPU-200 to match the rotation shaft.
-
Made of stainless steel superior in corrosion resistance.
-
All products are provided with hex socket set screws.
Material/Finish
|
EOCL-200 |
| Main Body |
SUS304 |
| Hex Socket Set Screw |
SUSXM7 |

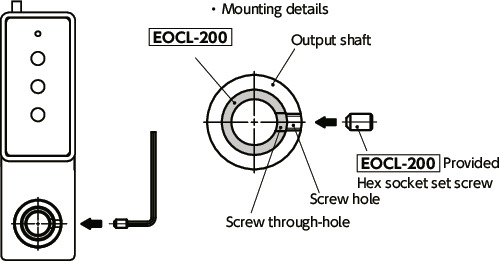

Mounting
① Insert
EOCL-200 onto the
EPU-200 output shaft.
② Align the
EPU-200 output shaft screw hole with the
EOCL-200 screw through-hole, then screw the hex socket set screw supplied with
EOCL-200.

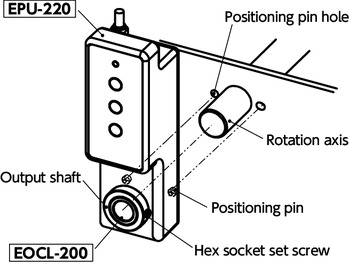

③ With
EOCL-200 mounted, pass the rotation axis over the
EPU-200 output shaft and secure with a hex socket set screw. (Recommended tightening torque: 2.8 N･m)
Precautions for Use
When using
EOCL-200, use the hex socket set screws provided with
EOCL-200. The length of the screws provided with
EPU-200 may not sufficient to adequately secure the output shaft.
