Captive Screws・Full Thread Screws

Captive Processing Service

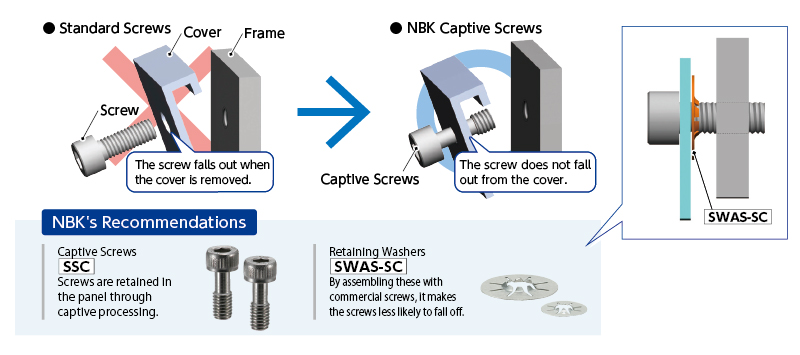

Screws will be treated with relief cut and given a captive function.

Part Name	Socket Head Cap Captive Screws	Socket Head Cap Captive Screws (Inch Screws)	Socket Head Cap Captive Screws with Low Profile	Socket Head Cap Captive Screws with Special Low Profile	Hexagon Head Captive Screws	Cross Recessed Pan Head Captive Machine Screws	Pan head captive machine screws for precision instruments (miniature screws)	Captive Button Head Cap Bolts with Hexalobular Socket (with Pin)	Cross Recessed Truss Head Captive Screws
Part Number	SSC	SSC(INCH)	SSCLS	SSCHS	SSC-SNHS	SSCPS	SSCZS	SSC-SRBS	SSCMS
Feature	Standard	Inch Thread	Low Profile Cap Screws	Special Low ProfileCap Screws	Hex head screws	Pan Head MachineScrews	Pan Head Machine Screws for Precision Instruments	Hexalobular Socket With Pin	Truss Head Screws
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M8	No.4-40UNC ～ 1/4-20UNC	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M1.4 ～ M2.6	M3 ～ M8	M3 ～ M8
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSC-M3 SSC-M4 SSC-M5 SSC-M6 SSC-M8	SSC-#10-32 SSC-#4-40 SSC-#6-32 SSC-#8-32 SSC-1/4-20	SSCLS-M3 SSCLS-M4 SSCLS-M5 SSCLS-M6 SSCLS-M8	SSCHS-M3 SSCHS-M4 SSCHS-M5 SSCHS-M6 SSCHS-M8	SSC-SNHS-M3 SSC-SNHS-M4 SSC-SNHS-M5 SSC-SNHS-M6 SSC-SNHS-M8	SSCPS-M3 SSCPS-M4 SSCPS-M5 SSCPS-M6 SSCPS-M8	SSCZS-M1.4 SSCZS-M1.6 SSCZS-M1.7 SSCZS-M2 SSCZS-M2.5 SSCZS-M2.6	SSC-SRBS-M3 SSC-SRBS-M4 SSC-SRBS-M5 SSC-SRBS-M6 SSC-SRBS-M8	SSCMS-M3 SSCMS-M4 SSCMS-M5 SSCMS-M6 SSCMS-M8

Part Name	Hex Socket Head Cap Screws - Full Thread	Socket Head Cap Screws with Special Low Profile - Full Thread	Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK	Captive Washers	Dedicated Mounting Tools for Captive Washers
Part Number	SNSS-FT	SSHS-FT	SPE-FT	SWAS-SC	SKSC
Feature	Standard	Full Thread Special Low Profile Small Space	Chemical Resistance Heat Resistance Full Thread	Commercially Available Fall Prevention	Dedicated Mounting Tools for SWAS-SC
Material	SUSXM7 (Equivalent to SUS304)	SUS304	PEEK	-	-
Surface Treatment	-	-	-	-	-
Thread Size	M3 ～ M10	M3 ～ M10	M3 ～ M6	M3 ～ M12	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNSS-M10-FT SNSS-M3-FT SNSS-M4-FT SNSS-M5-FT SNSS-M6-FT SNSS-M8-FT	SSHS-M10-FT SSHS-M3-FT SSHS-M4-FT SSHS-M5-FT SSHS-M6-FT SSHS-M8-FT	SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT	SWAS-10-SC SWAS-12-SC SWAS-3-SC SWAS-4-SC SWAS-5-SC SWAS-6-SC SWAS-8-SC	SKSC-1012 SKSC-345 SKSC-68
