Captive Screws, Full Thread Screws

Captive Processing Service

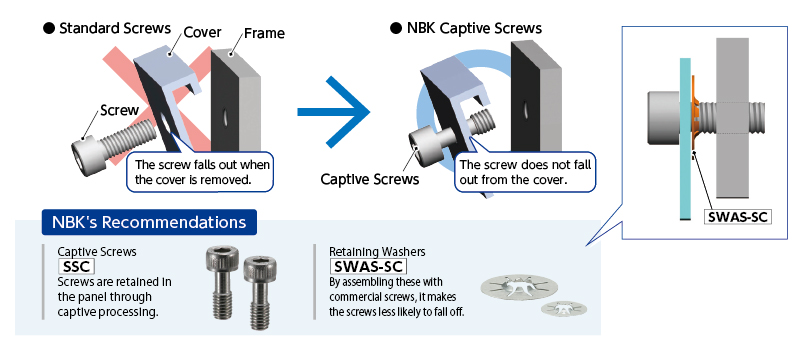

Screws will be treated with relief cut and given a captive function.

Part Name	Socket Head Cap Captive Screws	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment	Socket Head Cap Captive Screws - Fluorine Coating	Socket Head Cap Captive Screws - PTFE Coating	Hex Socket Head Cap Captive Screw/Captive Washer Sets	Socket Head Cap Captive Screws (Inch Screws)	Socket Head Cap Captive Screws with Low Profile	Socket Head Cap Captive Screws with Special Low Profile	Hexagon Head Captive Screws
Part Number	SSC	SSC-RY	SSC-FC	SSC-TF	SSC-SET	SSC(INCH)	SSCLS	SSCHS	SSC-SNHS
Feature	Standard	Chemical Resistance Anti-reflection Seizing Prevention Loss Prevention	Seizing Prevention Loss Prevention	Chemical Resistance Seizing Prevention Loss Prevention	Standard	Inch Thread	Low Profile Cap Screws	Special Low ProfileCap Screws	Hex head screws
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	Low temperature black chrome treatment	Fluorine coating	PTFE coating	-	-	-	-	-
Thread Size	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	No.4-40UNC ～ 1/4-20UNC	M3 ～ M8	M3 ～ M8	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSC-M3 SSC-M4 SSC-M5 SSC-M6 SSC-M8	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY	SSC-M3-FC SSC-M4-FC SSC-M5-FC SSC-M6-FC SSC-M8-FC	SSC-M3-TF SSC-M4-TF SSC-M5-TF SSC-M6-TF SSC-M8-TF	SSC-M3-SET SSC-M4-SET SSC-M5-SET SSC-M6-SET SSC-M8-SET	SSC-#10-32 SSC-#4-40 SSC-#6-32 SSC-#8-32 SSC-1/4-20	SSCLS-M3 SSCLS-M4 SSCLS-M5 SSCLS-M6 SSCLS-M8	SSCHS-M3 SSCHS-M4 SSCHS-M5 SSCHS-M6 SSCHS-M8	SSC-SNHS-M3 SSC-SNHS-M4 SSC-SNHS-M5 SSC-SNHS-M6 SSC-SNHS-M8

Part Name	Cross Recessed Pan Head Captive Machine Screws	Pan head captive machine screws for precision instruments (miniature screws)	Captive Button Head Cap Bolts with Hexalobular Socket (with Pin)	Cross Recessed Truss Head Captive Screws	Hex Socket Head Cap Screws - Full Thread	Socket Head Cap Screws with Special Low Profile - Full Thread	Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK	Captive Washers	Dedicated Mounting Tools for Captive Washers
Part Number	SSCPS	SSCZS	SSC-SRBS	SSCMS	SNSS-FT	SSHS-FT	SPE-FT	SWAS-SC	SKSC
Feature	Pan Head MachineScrews	Pan Head Machine Screws for Precision Instruments	Hexalobular Socket With Pin	Truss Head Screws	Standard	Full Thread Special Low Profile Small Space	Chemical Resistance Heat Resistance Full Thread	Commercially Available Fall Prevention	Dedicated Mounting Tools for SWAS-SC
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS304	PEEK	-	-
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M8	M1.4 ～ M2.6	M3 ～ M8	M3 ～ M8	M3 ～ M10	M3 ～ M10	M3 ～ M6	M3 ～ M12	-
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSCPS-M3 SSCPS-M4 SSCPS-M5 SSCPS-M6 SSCPS-M8	SSCZS-M1.4 SSCZS-M1.6 SSCZS-M1.7 SSCZS-M2 SSCZS-M2.5 SSCZS-M2.6	SSC-SRBS-M3 SSC-SRBS-M4 SSC-SRBS-M5 SSC-SRBS-M6 SSC-SRBS-M8	SSCMS-M3 SSCMS-M4 SSCMS-M5 SSCMS-M6 SSCMS-M8	SNSS-M10-FT SNSS-M3-FT SNSS-M4-FT SNSS-M5-FT SNSS-M6-FT SNSS-M8-FT	SSHS-M10-FT SSHS-M3-FT SSHS-M4-FT SSHS-M5-FT SSHS-M6-FT SSHS-M8-FT	SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT	SWAS-10-SC SWAS-12-SC SWAS-3-SC SWAS-4-SC SWAS-5-SC SWAS-6-SC SWAS-8-SC	SKSC-1012 SKSC-345 SKSC-68
