Hexalobular Socket Extra Low Profile Miniature Screw / Nylon Patch

SNZCXS-ALK

Safety Precautions

RoHS Compliant

  • Space
  • Vibration resistant treatment
  • Miniature
  • Tightening Hole Damage Prevention
SNZCXS-ALKHexalobular Socket Extra Low Profile Miniature Screw / Nylon Patch

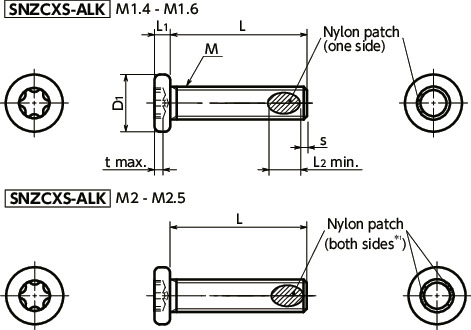

Dimension Drawing

SNZCXS-ALKHexalobular Socket Extra Low Profile Miniature Screw / Nylon Patch寸法図

＊1：　For dimension L of under 4 mm, nylon adhesion is on one side.

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1.4
M1.6
M2
M2.5
L
All
2
3
4
5
6
8
10

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 s＊1 L2 min. Applicable Wrench Applicable Bit Hexalobular
Socket No.		 t max. Max.
Torque
(N・m)		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SNZCXS-M1.4-2-ALK M1.4 0.3 2 2 0.5 0 1.4 - SKXB-3 3 0.25 0.03 50 0.025 30.64 CAD Cart
SNZCXS-M1.4-3-ALK M1.4 0.3 3 2 0.5 0 1.4 - SKXB-3 3 0.25 0.03 50 0.033 30.06 CAD Cart
SNZCXS-M1.4-4-ALK M1.4 0.3 4 2 0.5 0.6 1.4 - SKXB-3 3 0.25 0.03 50 0.041 30.06 CAD Cart
SNZCXS-M1.4-5-ALK M1.4 0.3 5 2 0.5 0.6 1.4 - SKXB-3 3 0.25 0.03 50 0.049 30.06 CAD Cart
SNZCXS-M1.4-6-ALK M1.4 0.3 6 2 0.5 0.6 1.4 - SKXB-3 3 0.25 0.03 50 0.058 30.64 CAD Cart
SNZCXS-M1.4-8-ALK M1.4 0.3 8 2 0.5 0.6 1.4 - SKXB-3 3 0.25 0.03 50 0.074 30.64 CAD Cart
SNZCXS-M1.4-10-ALK M1.4 0.3 10 2 0.5 0.6 1.4 - SKXB-3 3 0.25 0.03 50 0.091 30.64 CAD Cart
SNZCXS-M1.6-2-ALK M1.6 0.35 2 2.4 0.5 0 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.041 31.78 CAD Cart
SNZCXS-M1.6-3-ALK M1.6 0.35 3 2.4 0.5 0 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.051 30.06 CAD Cart
SNZCXS-M1.6-4-ALK M1.6 0.35 4 2.4 0.5 0.7 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.061 30.06 CAD Cart
SNZCXS-M1.6-5-ALK M1.6 0.35 5 2.4 0.5 0.7 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.071 30.06 CAD Cart
SNZCXS-M1.6-6-ALK M1.6 0.35 6 2.4 0.5 0.7 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.079 30.06 CAD Cart
SNZCXS-M1.6-8-ALK M1.6 0.35 8 2.4 0.5 0.7 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.098 30.64 CAD Cart
SNZCXS-M1.6-10-ALK M1.6 0.35 10 2.4 0.5 0.7 1.6 SKX-4 SKXB-4 4 0.3 0.05 50 0.12 31.20 CAD Cart
SNZCXS-M2-2-ALK M2 0.4 2 3 0.6 0 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.063 31.78 CAD Cart
SNZCXS-M2-3-ALK M2 0.4 3 3 0.6 0 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.08 30.06 CAD Cart
SNZCXS-M2-4-ALK M2 0.4 4 3 0.6 0.8 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.097 30.06 CAD Cart
SNZCXS-M2-5-ALK M2 0.4 5 3 0.6 0.8 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.12 30.06 CAD Cart
SNZCXS-M2-6-ALK M2 0.4 6 3 0.6 0.8 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.13 30.06 CAD Cart
SNZCXS-M2-8-ALK M2 0.4 8 3 0.6 0.8 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.17 30.64 CAD Cart
SNZCXS-M2-10-ALK M2 0.4 10 3 0.6 0.8 2 SKX-5 SKXB-5 5 0.35 0.12 50 0.2 31.78 CAD Cart
SNZCXS-M2.5-3-ALK M2.5 0.45 3 4 0.8 0 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.12 32.33 CAD Cart
SNZCXS-M2.5-4-ALK M2.5 0.45 4 4 0.8 0.9 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.14 31.20 CAD Cart
SNZCXS-M2.5-5-ALK M2.5 0.45 5 4 0.8 0.9 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.17 31.20 CAD Cart
SNZCXS-M2.5-6-ALK M2.5 0.45 6 4 0.8 0.9 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.2 31.20 CAD Cart
SNZCXS-M2.5-8-ALK M2.5 0.45 8 4 0.8 0.9 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.27 31.20 CAD Cart
SNZCXS-M2.5-10-ALK M2.5 0.45 10 4 0.8 0.9 2.5 SKX-6 SKXB-6 6 0.55 0.24 50 0.34 31.20 CAD Cart

＊1：　If L＜4, dimension s is 0.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SNZCXS-ALK
Main Body SUSXM7 (Equivalent to SUS304)
Nylon Adhesion Nylon 11

Application

Reducing the size of equipment and devices / Return and fall prevention of screws
Compact precision equipment

Characteristics

  • M1.4-M2.5. Miniature screw with nylon adhesion for precision instruments.
  • The friction of the nylon adhered to the thread suppresses the return rotation of the thread, preventing the screw from falling out even if the tightening force decreases.
  • Flat head machine screw type with low head height. For space-saving of equipment/devices and applications with limited overhead space.
  • Screw heads are unlikely to be damaged due to tightening, allowing safe and secure tightening to be performed.
  • Install and remove with SKX Dedicated Wrench or SKXB Dedicated Bit and SRD Dedicated Magnetic Screwdriver together.
Part Number Applicable Wrench Applicable Bit
SNZCXS-M1.4-ALK - SKXB-3
SNZCXS-M1.6-ALK SKX-4 SKXB-4
SNZCXS-M2-ALK SKX-5 SKXB-5
SNZCXS-M2.5-ALK SKX-6 SKXB-6
  • Use the SKX-N hexalobular wrench for extremely limited access spaces for mounting and removing in tight spaces.
  • We manufacture products with special specifications such as ventilation holes, cleanroom washing and special packaging.
    ⇒We can make a screw like this one
