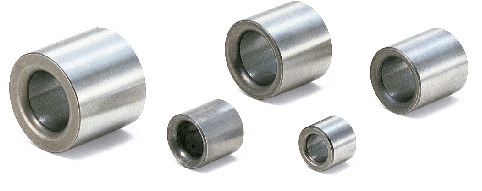

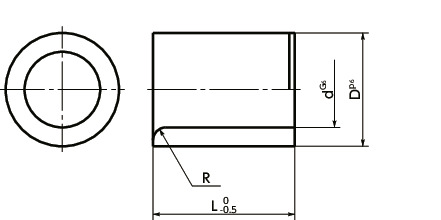

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | d | L | D | R | Applicable positioning pin | Mass (g) |
Price (USD) |
CAD Download |
QTY (Piece) |
|---|---|---|---|---|---|---|---|---|---|
| PJA-5-8 | 5 | 8 | 10 | 1 | PJP-5-＊＊ | 3.8 | 15.06 | CAD | Cart |
| PJA-5-10 | 5 | 10 | 10 | 1 | PJP-5-＊＊ | 4.7 | 15.06 | CAD | Cart |
| PJA-5-12 | 5 | 12 | 10 | 1 | PJP-5-＊＊ | 5.7 | 15.06 | CAD | Cart |
| PJA-5-16 | 5 | 16 | 10 | 1 | PJP-5-＊＊ | 7.5 | 15.06 | CAD | Cart |
| PJA-6-8 | 6 | 8 | 10 | 1 | PJP-6-＊＊ | 3.2 | 14.10 | CAD | Cart |
| PJA-6-10 | 6 | 10 | 10 | 1 | PJP-6-＊＊ | 4 | 14.10 | CAD | Cart |
| PJA-6-12 | 6 | 12 | 10 | 1 | PJP-6-＊＊ | 4.8 | 14.10 | CAD | Cart |
| PJA-6-16 | 6 | 16 | 10 | 1 | PJP-6-＊＊ | 6.4 | 14.10 | CAD | Cart |
| PJA-8-10 | 8 | 10 | 12 | 2 | PJP-8-＊＊ | 5 | 14.10 | CAD | Cart |
| PJA-8-12 | 8 | 12 | 12 | 2 | PJP-8-＊＊ | 6 | 14.10 | CAD | Cart |
| PJA-8-16 | 8 | 16 | 12 | 2 | PJP-8-＊＊ | 8 | 14.10 | CAD | Cart |
| PJA-8-20 | 8 | 20 | 12 | 2 | PJP-8-＊＊ | 10 | 14.10 | CAD | Cart |
| PJA-10-10 | 10 | 10 | 15 | 2 | PJP-10-＊＊ | 7.8 | 15.06 | CAD | Cart |
| PJA-10-12 | 10 | 12 | 15 | 2 | PJP-10-＊＊ | 9.4 | 15.06 | CAD | Cart |
| PJA-10-16 | 10 | 16 | 15 | 2 | PJP-10-＊＊ | 12.7 | 15.06 | CAD | Cart |
| PJA-10-20 | 10 | 20 | 15 | 2 | PJP-10-＊＊ | 16 | 15.06 | CAD | Cart |
| PJA-12-16 | 12 | 16 | 18 | 2 | PJP-12-＊＊ | 19 | 17.29 | CAD | Cart |
| PJA-12-20 | 12 | 20 | 18 | 2 | PJP-12-＊＊ | 23 | 17.29 | CAD | Cart |
| PJA-12-25 | 12 | 25 | 18 | 2 | PJP-12-＊＊ | 28 | 17.29 | CAD | Cart |
Material/Finish
| PJA | |
|---|---|
| Main body | SK5 (hardness: 60 HRC or above) |
