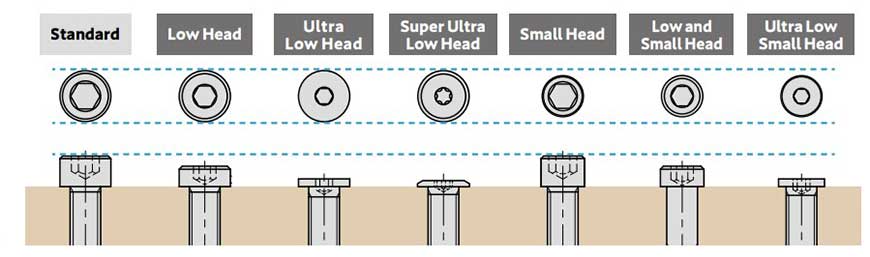

Low Profile Screws・Small Head Screws

Image Socket Head Cap Screws with Low Profile Socket Head Cap Screws with Low Profile Socket Head Cap Screws with Low Profile Socket Head Cap Screw - Low Profile - SUS316L Socket Head Cap Screws with Special Low Profile Socket Head Cap Screws with Special Low Profile Hex Socket Head Cap Screws with Special Low Profile (Nylon Patch) Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screws with Special Low Profile (Stainless Steel / Nylon Patch)
Part Name Socket Head Cap Screws with Low Profile Socket Head Cap Screws with Low Profile Socket Head Cap Screws with Low Profile Socket Head Cap Screw - Low Profile - SUS316L Socket Head Cap Screws with Special Low Profile Socket Head Cap Screws with Special Low Profile Hex Socket Head Cap Screws with Special Low Profile (Nylon Patch) Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screws with Special Low Profile (Stainless Steel / Nylon Patch)
Part Number SLH SLH-TZB SLHS SLHL SSH SSH-EL SSH-EL-ALK SSHS SSHS-ALK
Feature Low Profile
Small Space		 Low Profile
Small Space		 Low Profile
Small Space		 Low Profile
Small Space		 Special Low Profile
Small Space		 Special Low Profile
Small Space		 Special Low Profile
Space-Saving
Nylon Patch		 Special Low Profile
Small Space		 Special Low Profile
Space-Saving
Nylon Patch
Material Steel Steel SUSXM7 (Equivalent to SUS304) SUS316L Steel Steel Steel SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304)
Surface Treatment Ferrosoferric Oxide Film (Black) Trivalent chromate treatment - - Ferrosoferric Oxide Film (Black) Electroless nickel plating Electroless nickel plating - -
Thread Size M2 ～ M10 M2 ～ M10 M2 ～ M10 M3 ～ M6 M2 ～ M10 M2 ～ M10 M2 ～ M8 M2 ～ M10 M2 ～ M8
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SLH-M10 SLH-M2 SLH-M2.5 SLH-M3 SLH-M4 SLH-M5 SLH-M6 SLH-M8 SLH-M10-TZB SLH-M2.5-TZB SLH-M2-TZB SLH-M3-TZB SLH-M4-TZB SLH-M5-TZB SLH-M6-TZB SLH-M8-TZB SLHS-M10 SLHS-M2 SLHS-M2.5 SLHS-M3 SLHS-M4 SLHS-M5 SLHS-M6 SLHS-M8 SLHL-M3 SLHL-M4 SLHL-M5 SLHL-M6 SSH-M10 SSH-M2 SSH-M2.5 SSH-M3 SSH-M4 SSH-M5 SSH-M6 SSH-M8 SSH-M10-EL SSH-M2.5-EL SSH-M2-EL SSH-M3-EL SSH-M4-EL SSH-M5-EL SSH-M6-EL SSH-M8-EL SSH-M2.5-EL-ALK SSH-M2-EL-ALK SSH-M3-EL-ALK SSH-M4-EL-ALK SSH-M5-EL-ALK SSH-M6-EL-ALK SSH-M8-EL-ALK SSHS-M10 SSHS-M2 SSHS-M2.5 SSHS-M3 SSHS-M4 SSHS-M5 SSHS-M6 SSHS-M8 SSHS-M2.5-ALK SSHS-M2-ALK SSHS-M3-ALK SSHS-M4-ALK SSHS-M5-ALK SSHS-M6-ALK SSHS-M8-ALK
Image Socket Head Cap Screws with Special Low Profile - Full Thread Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screw with Special Low Profile (SUS316L, with Ventilation Hole) Socket Head Cap Screws - Special Low Profile - Pure Titanium Hex Socket Head Cap Screw with Special Low Profile (Titanium, with Ventilation Hole) Hex Head Screw / Special Low Profile Hexalobular Socket Head Cap Screws with Low Profile Hexalobular Socket Head Cap Screws with Low Profile Hexalobular Socket Head Cap Screws with Special Low Profile
Part Name Socket Head Cap Screws with Special Low Profile - Full Thread Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screw with Special Low Profile (SUS316L, with Ventilation Hole) Socket Head Cap Screws - Special Low Profile - Pure Titanium Hex Socket Head Cap Screw with Special Low Profile (Titanium, with Ventilation Hole) Hex Head Screw / Special Low Profile Hexalobular Socket Head Cap Screws with Low Profile Hexalobular Socket Head Cap Screws with Low Profile Hexalobular Socket Head Cap Screws with Special Low Profile
Part Number SSHS-FT SSHL SVSHL SSHT SVSHT SNHS-LH SLT-TZB SLTS SSTS
Feature Full Thread
Special Low Profile
Small Space		 Special Low Profile
Small Space		 Special Low Profile
Small Space		 Special Low Profile
Small Space
Lightweight
NonMagnetic
Chemical Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 Low Profile
space-saving		 Hexalobular Socket
Low Profile
Small Space		 Hexalobular Socket
Low Profile
Small Space		 Hexalobular Socket
Special Low Profile
Small Space
Material SUS304 SUS316L SUS316L Pure Titanium Pure Titanium SUSXM7 (Equivalent to SUS304) Steel SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304)
Surface Treatment - - - - - - Trivalent chromate treatment - -
Thread Size M3 ～ M10 M3 ～ M5 M3 ～ M5 M3 ～ M6 M3 ～ M6 M4 ～ M8 M3 ～ M6 M2 ～ M6 M2 ～ M8
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SSHS-M10-FT SSHS-M3-FT SSHS-M4-FT SSHS-M5-FT SSHS-M6-FT SSHS-M8-FT SSHL-M3 SSHL-M4 SSHL-M5 SVSHL-M3 SVSHL-M4 SVSHL-M5 SSHT-M3 SSHT-M4 SSHT-M5 SSHT-M6 SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6 SNHS-M4-LH SNHS-M5-LH SNHS-M6-LH SNHS-M8-LH SLT-M3-TZB SLT-M4-TZB SLT-M5-TZB SLT-M6-TZB SLTS-M2 SLTS-M2.5 SLTS-M3 SLTS-M4 SLTS-M5 SLTS-M6 SSTS-M2 SSTS-M2.5 SSTS-M3 SSTS-M4 SSTS-M5 SSTS-M6 SSTS-M8
Image Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch) Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screw with Extra Low Profile (Inch Thread) Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch) Hexalobular Socket Head Cap Screw with Extra Low Profile (Inch Thread/Stainless Steel) Aluminum Super Special Low Profile Bolt with Hexalobular Socket Hexalobular Keys
Part Name Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch) Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screw with Extra Low Profile (Inch Thread) Hexalobular Socket Head Cap Screws with Extreme Low Profile Hexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch) Hexalobular Socket Head Cap Screw with Extra Low Profile (Inch Thread/Stainless Steel) Aluminum Super Special Low Profile Bolt with Hexalobular Socket Hexalobular Keys
Part Number SET-NI SET-NI-ALK SET-BNI SET-TZB(INCH) SETS SETS-ALK SETS(INCH) SETA SKX
Feature Hexalobular Socket
Extra Low Profile
Small Space		 Hexalobular Socket
Extra Low Profile
Space-Saving
Nylon Patch		 Hexalobular Socket
Extra Low Profile
Small Space		 Hexalobular Socket
Extra Low Profile
Small Space
Inch Screws		 Hexalobular Socket
Extra Low Profile
Small Space		 Hexalobular Socket
Extra Low Profile
Space-Saving
Nylon Patch		 Hexalobular Socket
Extra Low Profile
Small Space
Inch Screws		 Super Special Low Profile
With Hexalobular Socket
Space-saving		 For HexalobularSocket Head Screws
Material Steel Steel Steel Steel SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) A5056 Steel
Surface Treatment Nickel plating Nickel plating Black Nickel Plating Trivalent chromate treatment - - - - Ferrosoferric Oxide Film (Black)
Thread Size M3 ～ M5 M3 ～ M5 M3 ～ M5 No.6-32UNC ～ No.10-32UNF M2 ～ M6 M2 ～ M6 No.4-40UNC ～ No.10-32UNF M3 ～ M6 -
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SET-M3-NI SET-M4-NI SET-M5-NI SET-M3-NI-ALK SET-M4-NI-ALK SET-M5-NI-ALK SET-M3-BNI SET-M4-BNI SET-M5-BNI SET-#10-24-TZB SET-#10-32-TZB SET-#6-32-TZB SET-#8-32-TZB SETS-M2 SETS-M2.6 SETS-M3 SETS-M4 SETS-M5 SETS-M6 SETS-M2.6-ALK SETS-M2-ALK SETS-M3-ALK SETS-M4-ALK SETS-M5-ALK SETS-M6-ALK SETS-#10-24 SETS-#10-32 SETS-#4-40 SETS-#6-32 SETS-#8-32 SETA-M3 SETA-M4 SETA-M5 SETA-M6 SKX-10 SKX-15 SKX-20 SKX-25 SKX-30 SKX-4 SKX-40 SKX-45 SKX-5 SKX-6 SKX-8
Image Socket Head Cap Screws with Small Head Socket Head Cap Screws with Small Head Socket Head Cap Screws with Small Head Hex Socket Head Cap Screw with Small Head - Inch Thread Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Extreme Low & Small Head Socket Head Cap Screws with Extreme Low & Small Head
Part Name Socket Head Cap Screws with Small Head Socket Head Cap Screws with Small Head Socket Head Cap Screws with Small Head Hex Socket Head Cap Screw with Small Head - Inch Thread Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Low & Small Head Socket Head Cap Screws with Extreme Low & Small Head Socket Head Cap Screws with Extreme Low & Small Head
Part Number SNS-SD SNS-SD-EL SNSS-SD SNSS-SD(INCH) SLH-SD SLH-SD-EL SLHS-SD SSH-SD SSH-SD-EL
Feature Small Head
Small Space		 Small Head
Small Space		 Small Head
Small Space		 Small Head
Small Space		 Low ProfileSmall Head
Small Space		 Low ProfileSmall Head
Small Space		 Low ProfileSmall Head
Small Space		 Special Low ProfileSmall Head
Small Space		 Special Low ProfileSmall Head
Small Space
Material Steel Steel SUSXM7 (Equivalent to SUS304) SUSXM7 (Equivalent to SUS304) Steel Steel SUSXM7 (Equivalent to SUS304) Steel Steel
Surface Treatment Ferrosoferric Oxide Film (Black) Electroless nickel plating - - Ferrosoferric Oxide Film (Black) Electroless nickel plating - Ferrosoferric Oxide Film (Black) Electroless nickel plating
Thread Size M3 ～ M10 M3 ～ M10 M2 ～ M10 No.4-40UNC ～ 5/16-18UNC M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M10
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNS-M10-SD SNS-M3-SD SNS-M4-SD SNS-M5-SD SNS-M6-SD SNS-M8-SD SNS-M10-SD-EL SNS-M3-SD-EL SNS-M4-SD-EL SNS-M5-SD-EL SNS-M6-SD-EL SNS-M8-SD-EL SNSS-M10-SD SNSS-M2.5-SD SNSS-M2-SD SNSS-M3-SD SNSS-M4-SD SNSS-M5-SD SNSS-M6-SD SNSS-M8-SD SNSS-#10-24-SD SNSS-#10-32-SD SNSS-#4-40-SD SNSS-#6-32-SD SNSS-#8-32-SD SNSS-1/4-20-SD SNSS-5/16-18-SD SLH-M10-SD SLH-M3-SD SLH-M4-SD SLH-M5-SD SLH-M6-SD SLH-M8-SD SLH-M10-SD-EL SLH-M3-SD-EL SLH-M4-SD-EL SLH-M5-SD-EL SLH-M6-SD-EL SLH-M8-SD-EL SLHS-M10-SD SLHS-M3-SD SLHS-M4-SD SLHS-M5-SD SLHS-M6-SD SLHS-M8-SD SSH-M10-SD SSH-M3-SD SSH-M4-SD SSH-M5-SD SSH-M6-SD SSH-M8-SD SSH-M10-SD-EL SSH-M3-SD-EL SSH-M4-SD-EL SSH-M5-SD-EL SSH-M6-SD-EL SSH-M8-SD-EL
Image Socket Head Cap Screws with Extreme Low & Small Head Cross Recessed Flat Head Machine Screws with Small Head Cross Recessed Flat Head Machine Screws with Small Head Cross Recessed Head Cap Screws with Extra Low Profile Cross Recessed Head Cap Screws with Extra Low Profile Bits for Cross Recessed Head Cap Screws with Extra Low Profile Socket Button Head Cap Screws with Flange Socket Button Head Cap Screw with Flange (Electroless Nickel Plating) Socket Button Head Cap Screws with Flange
Part Name Socket Head Cap Screws with Extreme Low & Small Head Cross Recessed Flat Head Machine Screws with Small Head Cross Recessed Flat Head Machine Screws with Small Head Cross Recessed Head Cap Screws with Extra Low Profile Cross Recessed Head Cap Screws with Extra Low Profile Bits for Cross Recessed Head Cap Screws with Extra Low Profile Socket Button Head Cap Screws with Flange Socket Button Head Cap Screw with Flange (Electroless Nickel Plating) Socket Button Head Cap Screws with Flange
Part Number SSHS-SD SNF-SD-TZB SNFS-SD SEQ-TBZ SEQ-TZB SKQB SFB SFB-EL SFBS
Feature Special Low ProfileSmall Head
Small Space		 Low ProfileSmall Head
Small Space		 Low ProfileSmall Head
Small Space		 Extreme Low Profile
Small Space		 Extreme Low Profile
Small Space		 Dedicated Screwdrivers for SEQ With Flange
Small Space		 With Flange
Small Space		 With Flange
Small Space
Material SUSXM7 (Equivalent to SUS304) Steel SUSXM7 (Equivalent to SUS304) Steel Steel - Steel Steel SUSXM7 (Equivalent to SUS304)
Surface Treatment - Trivalent chromate treatment - Black Trivalent Chromate Treatment Trivalent chromate treatment - Ferrosoferric Oxide Film (Black) Electroless nickel plating -
Thread Size M2 ～ M10 M3 ～ M5 M4 ～ M6 M3 ～ M4 M3 ～ M4 - M3 ～ M8 M3 ～ M8 M3 ～ M6
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SSHS-M10-SD SSHS-M2.5-SD SSHS-M2-SD SSHS-M3-SD SSHS-M4-SD SSHS-M5-SD SSHS-M6-SD SSHS-M8-SD SNF-M3-SD-TZB SNF-M4-SD-TZB SNF-M5-SD-TZB SNFS-M4-SD SNFS-M5-SD SNFS-M6-SD SEQ-M3-TBZ SEQ-M4-TBZ SEQ-M3-TZB SEQ-M4-TZB SKQB-1 SKQB-2 SFB-M3 SFB-M4 SFB-M5 SFB-M6 SFB-M8 SFB-M3-EL SFB-M4-EL SFB-M5-EL SFB-M6-EL SFB-M8-EL SFBS-M3 SFBS-M4 SFBS-M5 SFBS-M6
Image Tamper Resistant Special Low Profile Cap Screws Socket Head Cap Screws with Low Profile with Pilot Recess SLP Specialty Keys Hexalobular wrenches for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces
Part Name Tamper Resistant Special Low Profile Cap Screws Socket Head Cap Screws with Low Profile with Pilot Recess SLP Specialty Keys Hexalobular wrenches for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces Low profile screwdrivers for extremely limited access spaces
Part Number SRSHS SLP SKP SKX-N SKND SKND-PH SKND-SLOT
Feature Tamper-resistant screw with special low Profile height Pilot Recess
Low Profile
Small Space		 Special keys for SLP Tools for Extremely Limited Access Spaces
For Hexalobular Head Socket Screws		 Tools for Extremely Limited Access Spaces
For Hex Sockets		 Tools for Extremely Limited Access Spaces
For Cross-Recessed Sockets		 Tools for Extremely Limited Access Spaces
For Slotted Grooves
Material SUSXM7 (Equivalent to SUS304) Steel - - - - -
Surface Treatment - Ferrosoferric Oxide Film (Black) Ferrosoferric Oxide Film (Black) Electroless nickel plating Electroless nickel plating Electroless nickel plating Electroless nickel plating
Thread Size M2 ～ M4 M4 ～ M8 - - - - -
CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SRSHS-M2 SRSHS-M2.5 SRSHS-M3 SRSHS-M4 SLP-M4 SLP-M5 SLP-M6 SLP-M8 SKP-3 SKP-4 SKP-5 SKP-6 SKX-10N SKX-15N SKX-20N SKX-25N SKX-4N SKX-5N SKX-6N SKX-8N SKND-2.5 SKND-3 SKND-4 SKND-5 SKND-PH0 SKND-PH1 SKND-PH2 SKND-SLOT6
