SET-NI-ALK

Hexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch)

  • Space

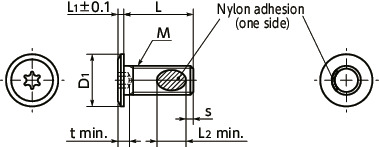

Dimension Drawing

SET-NI-ALKHexalobular Socket Head Cap Screws with Extreme Low Profile (Nylon Patch)寸法図

Specs/CAD

Select

Size(M)
All
3
4
5
L
All
6
8
10
12
16

Unit : mm

Part Number M L D1 L1 Applicable Wrench Hexalobular
Socket
No.
t s L2 Max. Tightening
Torque
(N・m)
Qty per Pack Mass
(g)
Price
(USD)
CAD Standard
SET-M3-6-NI-ALK 3 6 7 0.8 SKX-6 6 0.75 1 2.5 0.7 20 0.43 9.23 CAD Cart
SET-M3-8-NI-ALK 3 8 7 0.8 SKX-6 6 0.75 1 2.5 0.7 20 0.52 9.52 CAD Cart
SET-M3-10-NI-ALK 3 10 7 0.8 SKX-6 6 0.75 1 2.5 0.7 20 0.6 11.06 CAD Cart
SET-M4-6-NI-ALK 4 6 8 0.9 SKX-8 8 0.9 1.4 3.3 2 20 0.7 12.89 CAD Cart
SET-M4-8-NI-ALK 4 8 8 0.9 SKX-8 8 0.9 1.4 3.3 2 20 0.85 12.89 CAD Cart
SET-M4-10-NI-ALK 4 10 8 0.9 SKX-8 8 0.9 1.4 3.3 2 20 1 11.98 CAD Cart
SET-M4-12-NI-ALK 4 12 8 0.9 SKX-8 8 0.9 1.4 3.3 2 20 1.2 12.89 CAD Cart
SET-M4-16-NI-ALK 4 16 8 0.9 SKX-8 8 0.9 1.4 3.3 2 20 1.6 13.83 CAD Cart
SET-M5-8-NI-ALK 5 8 9 1 SKX-10 10 1 1.6 4.2 4 20 1.2 14.43 CAD Cart
SET-M5-10-NI-ALK 5 10 9 1 SKX-10 10 1 1.6 4.2 4 20 1.5 15.05 CAD Cart
SET-M5-12-NI-ALK 5 12 9 1 SKX-10 10 1 1.6 4.2 4 20 1.7 14.43 CAD Cart
SET-M5-16-NI-ALK 5 16 9 1 SKX-10 10 1 1.6 4.2 4 20 2.2 15.05 CAD Cart

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

SET-NI-ALK
Main Body SWCH
Nickel Plating
Nylon Patch Nylon 11

Application

Reducing the size of equipment and devices / Return and fall prevention of screws

Characteristics

  • The friction of the nylon adhered to the thread suppresses the return rotation of the thread.
  • Even if the tightening force is lost, the return rotation is suppressed, preventing the screws from falling off.
  • Hexalobular socket*1 head cap screws with ultra-thin head.
  • For space-saving of equipment/devices and applications with limited overhead space.
  • Hexalobular socket shapes*1 are designed to withstand high tightening torque. ⇒Features of the Hexalobular Socket
  • Install and remove with SKX Dedicated Wrench or SKXB Dedicated Bit and SRD Dedicated Magnetic Screwdriver together.
  • Use the SKX-N hexalobular wrench for extremely limited access spaces for mounting and removing in tight spaces.

*1: The hexalobular shape is prescribed by JIS B 1015: 2008(ISO 10664: 2005)"Hexalobular internal driving feature for bolts and screws".
