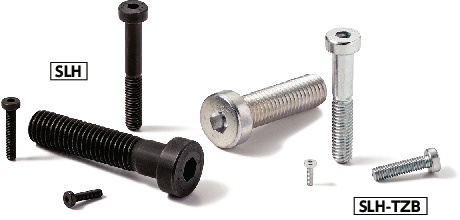

SLH

Socket Head Cap Screws with Low Profile

  • Space

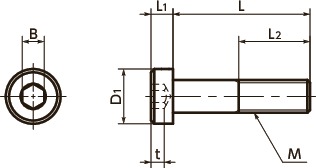

Dimension Drawing

SLHSocket Head Cap Screws with Low Profile寸法図

Specs/CAD

Select

Size(M)
All
2
2.5
3
4
5
6
8
10
L
All
5
6
8
10
12
16
20
25
30
35
40
45
50

Unit : mm

Part Number M L D1 L1 B*1 t L2 Max. Torque(N・m) Qty per Pack Mass
(g)
Price
(USD)
CAD Standard
SLH-M2-5 2 5 3.8 1.3 1.3 0.7 Full Thread 0.3 50 0.13 19.95 CAD Cart
SLH-M2-6 2 6 3.8 1.3 1.3 0.7 Full Thread 0.3 50 0.15 19.95 CAD Cart
SLH-M2-8 2 8 3.8 1.3 1.3 0.7 Full Thread 0.3 50 0.19 21.49 CAD Cart
SLH-M2-10 2 10 3.8 1.3 1.3 0.7 Full Thread 0.3 50 0.23 22.26 CAD Cart
SLH-M2-12 2 12 3.8 1.3 1.3 0.7 Full Thread 0.3 50 0.29 23.80 CAD Cart
SLH-M2.5-5 2.5 5 4.5 1.6 1.5 1 Full Thread 0.5 50 0.26 15.36 CAD Cart
SLH-M2.5-6 2.5 6 4.5 1.6 1.5 1 Full Thread 0.5 50 0.29 15.36 CAD Cart
SLH-M2.5-8 2.5 8 4.5 1.6 1.5 1 Full Thread 0.5 50 0.35 16.14 CAD Cart
SLH-M2.5-10 2.5 10 4.5 1.6 1.5 1 Full Thread 0.5 50 0.41 16.88 CAD Cart
SLH-M2.5-12 2.5 12 4.5 1.6 1.5 1 Full Thread 0.5 50 0.47 18.42 CAD Cart
SLH-M3-6 3 6 5.5 2 2 1.5 Full Thread 1.4 50 0.53 9.98 CAD Cart
SLH-M3-8 3 8 5.5 2 2 1.5 Full Thread 1.4 50 0.62 9.98 CAD Cart
SLH-M3-10 3 10 5.5 2 2 1.5 Full Thread 1.4 50 0.7 9.98 CAD Cart
SLH-M3-12 3 12 5.5 2 2 1.5 Full Thread 1.4 50 0.78 11.52 CAD Cart
SLH-M3-16 3 16 5.5 2 2 1.5 Full Thread 1.4 50 0.98 16.14 CAD Cart
SLH-M3-20 3 20 5.5 2 2 1.5 12 1.4 50 1.2 16.14 CAD Cart
SLH-M4-6 4 6 7 2.8 2.5 2.3 Full Thread 3.4 50 1.1 10.75 CAD Cart
SLH-M4-8 4 8 7 2.8 2.5 2.3 Full Thread 3.4 50 1.3 11.52 CAD Cart
SLH-M4-10 4 10 7 2.8 2.5 2.3 Full Thread 3.4 50 1.4 11.52 CAD Cart
SLH-M4-12 4 12 7 2.8 2.5 2.3 Full Thread 3.4 50 1.6 12.29 CAD Cart
SLH-M4-16 4 16 7 2.8 2.5 2.3 Full Thread 3.4 50 1.9 15.36 CAD Cart
SLH-M4-20 4 20 7 2.8 2.5 2.3 Full Thread 3.4 50 2.3 18.42 CAD Cart
SLH-M4-25 4 25 7 2.8 2.5 2.3 Full Thread 3.4 50 2.8 20.73 CAD Cart
SLH-M5-8 5 8 8.5 3.5 3 2.7 Full Thread 6 50 1.8 18.42 CAD Cart
SLH-M5-10 5 10 8.5 3.5 3 2.7 Full Thread 6 50 2 13.05 CAD Cart
SLH-M5-12 5 12 8.5 3.5 3 2.7 Full Thread 6 50 2.3 14.59 CAD Cart
SLH-M5-16 5 16 8.5 3.5 3 2.7 Full Thread 6 50 2.8 15.36 CAD Cart
SLH-M5-20 5 20 8.5 3.5 3 2.7 Full Thread 6 50 3.3 16.14 CAD Cart
SLH-M5-25 5 25 8.5 3.5 3 2.7 Full Thread 6 50 4.1 22.26 CAD Cart
SLH-M5-30 5 30 8.5 3.5 3 2.7 16 6 50 4.9 24.57 CAD Cart
SLH-M5-35 5 35 8.5 3.5 3 2.7 16 6 50 5.7 29.93 CAD Cart
SLH-M6-8 6 8 10 4 4 3 Full Thread 10 20 3.1 8.92 CAD Cart
SLH-M6-10 6 10 10 4 4 3 Full Thread 10 20 3.5 6.45 CAD Cart
SLH-M6-12 6 12 10 4 4 3 Full Thread 10 20 3.8 6.45 CAD Cart
SLH-M6-16 6 16 10 4 4 3 Full Thread 10 20 4.5 6.45 CAD Cart
SLH-M6-20 6 20 10 4 4 3 Full Thread 10 20 5.3 6.75 CAD Cart
SLH-M6-25 6 25 10 4 4 3 Full Thread 10 20 6.4 7.70 CAD Cart
SLH-M6-30 6 30 10 4 4 3 18 10 20 7.1 9.84 CAD Cart
SLH-M6-35 6 35 10 4 4 3 18 10 20 8.7 12.60 CAD Cart
SLH-M6-40 6 40 10 4 4 3 18 10 20 9.8 13.51 CAD Cart
SLH-M6-45 6 45 10 4 4 3 18 10 20 11 16.28 CAD Cart
SLH-M8-10 8 10 13 5 5 3.8 Full Thread 27 20 7.2 14.45 CAD Cart
SLH-M8-12 8 12 13 5 5 3.8 Full Thread 27 20 7.8 14.45 CAD Cart
SLH-M8-16 8 16 13 5 5 3.8 Full Thread 27 20 9 10.75 CAD Cart
SLH-M8-20 8 20 13 5 5 3.8 Full Thread 27 20 10 11.07 CAD Cart
SLH-M8-25 8 25 13 5 5 3.8 Full Thread 27 20 12 11.37 CAD Cart
SLH-M8-30 8 30 13 5 5 3.8 Full Thread 27 20 14 12.29 CAD Cart
SLH-M8-35 8 35 13 5 5 3.8 22 27 20 16 16.58 CAD Cart
SLH-M8-40 8 40 13 5 5 3.8 22 27 20 18 19.04 CAD Cart
SLH-M8-45 8 45 13 5 5 3.8 22 27 20 20 21.78 CAD Cart
SLH-M8-50 8 50 13 5 5 3.8 22 27 20 22 23.63 CAD Cart
SLH-M10-16 10 16 16 6 6 4.5 Full Thread 46 10 15 9.67 CAD Cart
SLH-M10-20 10 20 16 6 6 4.5 Full Thread 46 10 17 9.84 CAD Cart
SLH-M10-25 10 25 16 6 6 4.5 Full Thread 46 10 19 10.46 CAD Cart
SLH-M10-30 10 30 16 6 6 4.5 Full Thread 46 10 22 11.07 CAD Cart
SLH-M10-35 10 35 16 6 6 4.5 Full Thread 46 10 24 12.14 CAD Cart
SLH-M10-40 10 40 16 6 6 4.5 Full Thread 46 10 27 13.51 CAD Cart
SLH-M10-45 10 45 16 6 6 4.5 32 46 10 30 16.28 CAD Cart
SLH-M10-50 10 50 16 6 6 4.5 32 46 10 33 17.36 CAD Cart

*1: The hexagonal width across flat of SLH-M10-TZB has been changed from 7 mm to 6 mm.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services

Material/Finish

SLH
Main Body SWCH45K
Ferrosoferric Oxide Film (Black)
Strength Class 8.8

Application

Reducing the size of equipment and devices

Characteristics

  • Socket head cap screws have low head heights.
  • Intended for reducing the size of devices and applications with limited overhead space.
  • Also, SVLS Socket Head Cap Screws with Low Profile with Ventilation Hole is available.SVLS
