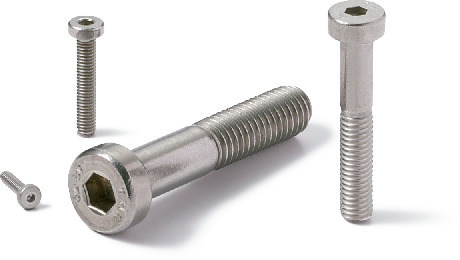

SLHSHex Socket Head Cap Screws with Low Profile (SUSXM7)

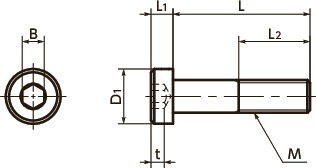

Dimension Drawing

SLHSHex Socket Head Cap Screws with Low Profile (SUSXM7)寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M2
M2.5
M3
M4
M5
M6
M8
M10
L
All
5
6
8
10
12
16
20
25
30
35
40
45
50

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 B t L2 Max. Torque(N・m) Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
SLHS-M2-5 M2 0.4 5 3.8 1.3 1.3 0.7 Full Thread 0.18 50 0.13 26.75 CAD Cart
SLHS-M2-6 M2 0.4 6 3.8 1.3 1.3 0.7 Full Thread 0.18 50 0.15 25.63 CAD Cart
SLHS-M2-8 M2 0.4 8 3.8 1.3 1.3 0.7 Full Thread 0.18 50 0.19 25.63 CAD Cart
SLHS-M2-10 M2 0.4 10 3.8 1.3 1.3 0.7 Full Thread 0.18 50 0.23 25.63 CAD Cart
SLHS-M2-12 M2 0.4 12 3.8 1.3 1.3 0.7 Full Thread 0.18 50 0.29 25.63 CAD Cart
SLHS-M2.5-5 M2.5 0.45 5 4.5 1.6 1.5 1 Full Thread 0.36 50 0.26 22.42 CAD Cart
SLHS-M2.5-6 M2.5 0.45 6 4.5 1.6 1.5 1 Full Thread 0.36 50 0.29 21.12 CAD Cart
SLHS-M2.5-8 M2.5 0.45 8 4.5 1.6 1.5 1 Full Thread 0.36 50 0.35 21.12 CAD Cart
SLHS-M2.5-10 M2.5 0.45 10 4.5 1.6 1.5 1 Full Thread 0.36 50 0.41 21.12 CAD Cart
SLHS-M2.5-12 M2.5 0.45 12 4.5 1.6 1.5 1 Full Thread 0.36 50 0.47 22.42 CAD Cart
SLHS-M3-5 M3 0.5 5 5.5 2 2 1.5 Full Thread 0.6 50 0.5 20.39 CAD Cart
SLHS-M3-6 M3 0.5 6 5.5 2 2 1.5 Full Thread 0.6 50 0.53 17.25 CAD Cart
SLHS-M3-8 M3 0.5 8 5.5 2 2 1.5 Full Thread 0.6 50 0.62 18.65 CAD Cart
SLHS-M3-10 M3 0.5 10 5.5 2 2 1.5 Full Thread 0.6 50 0.7 20.39 CAD Cart
SLHS-M3-12 M3 0.5 12 5.5 2 2 1.5 Full Thread 0.6 50 0.78 22.42 CAD Cart
SLHS-M3-16 M3 0.5 16 5.5 2 2 1.5 Full Thread 0.6 50 0.98 23.68 CAD Cart
SLHS-M3-20 M3 0.5 20 5.5 2 2 1.5 12 0.6 50 1.2 24.42 CAD Cart
SLHS-M4-6 M4 0.7 6 7 2.8 2.5 2.3 Full Thread 1.5 50 1.1 20.39 CAD Cart
SLHS-M4-8 M4 0.7 8 7 2.8 2.5 2.3 Full Thread 1.5 50 1.3 22.42 CAD Cart
SLHS-M4-10 M4 0.7 10 7 2.8 2.5 2.3 Full Thread 1.5 50 1.4 22.42 CAD Cart
SLHS-M4-12 M4 0.7 12 7 2.8 2.5 2.3 Full Thread 1.5 50 1.6 22.42 CAD Cart
SLHS-M4-16 M4 0.7 16 7 2.8 2.5 2.3 Full Thread 1.5 50 1.9 28.18 CAD Cart
SLHS-M4-20 M4 0.7 20 7 2.8 2.5 2.3 Full Thread 1.5 50 2.3 28.18 CAD Cart
SLHS-M4-25 M4 0.7 25 7 2.8 2.5 2.3 Full Thread 1.5 50 2.8 33.29 CAD Cart
SLHS-M5-8 M5 0.8 8 8.5 3.5 3 2.7 Full Thread 3.1 50 1.8 28.88 CAD Cart
SLHS-M5-10 M5 0.8 10 8.5 3.5 3 2.7 Full Thread 3.1 50 2 31.26 CAD Cart
SLHS-M5-12 M5 0.8 12 8.5 3.5 3 2.7 Full Thread 3.1 50 2.3 22.93 CAD Cart
SLHS-M5-16 M5 0.8 16 8.5 3.5 3 2.7 Full Thread 3.1 50 2.8 23.68 CAD Cart
SLHS-M5-20 M5 0.8 20 8.5 3.5 3 2.7 Full Thread 3.1 50 3.3 25.63 CAD Cart
SLHS-M5-25 M5 0.8 25 8.5 3.5 3 2.7 Full Thread 3.1 50 4.1 32.54 CAD Cart
SLHS-M5-30 M5 0.8 30 8.5 3.5 3 2.7 16 3.1 50 4.9 37.64 CAD Cart
SLHS-M5-35 M5 0.8 35 8.5 3.5 3 2.7 16 3.1 50 5.7 42.31 CAD Cart
SLHS-M6-8 M6 1 8 10 4 4 3 Full Thread 5.3 20 3.1 14.36 CAD Cart
SLHS-M6-10 M6 1 10 10 4 4 3 Full Thread 5.3 20 3.5 16.65 CAD Cart
SLHS-M6-12 M6 1 12 10 4 4 3 Full Thread 5.3 20 3.8 16.65 CAD Cart
SLHS-M6-16 M6 1 16 10 4 4 3 Full Thread 5.3 20 4.5 17.61 CAD Cart
SLHS-M6-20 M6 1 20 10 4 4 3 Full Thread 5.3 20 5.3 18.29 CAD Cart
SLHS-M6-25 M6 1 25 10 4 4 3 Full Thread 5.3 20 6.4 21.13 CAD Cart
SLHS-M6-30 M6 1 30 10 4 4 3 18 5.3 20 7.1 24.38 CAD Cart
SLHS-M6-35 M6 1 35 10 4 4 3 18 5.3 20 8.7 26.79 CAD Cart
SLHS-M6-40 M6 1 40 10 4 4 3 18 5.3 20 9.8 30.46 CAD Cart
SLHS-M6-45 M6 1 45 10 4 4 3 18 5.3 20 11 33.85 CAD Cart
SLHS-M8-10 M8 1.25 10 13 5 5 3.8 Full Thread 12 20 7.2 29.08 CAD Cart
SLHS-M8-12 M8 1.25 12 13 5 5 3.8 Full Thread 12 20 7.8 22.30 CAD Cart
SLHS-M8-16 M8 1.25 16 13 5 5 3.8 Full Thread 12 20 9 22.59 CAD Cart
SLHS-M8-20 M8 1.25 20 13 5 5 3.8 Full Thread 12 20 10 23.48 CAD Cart
SLHS-M8-25 M8 1.25 25 13 5 5 3.8 Full Thread 12 20 12 27.10 CAD Cart
SLHS-M8-30 M8 1.25 30 13 5 5 3.8 Full Thread 12 20 14 30.19 CAD Cart
SLHS-M8-35 M8 1.25 35 13 5 5 3.8 22 12 20 16 33.28 CAD Cart
SLHS-M8-40 M8 1.25 40 13 5 5 3.8 22 12 20 18 34.72 CAD Cart
SLHS-M8-45 M8 1.25 45 13 5 5 3.8 22 12 20 20 37.78 CAD Cart
SLHS-M8-50 M8 1.25 50 13 5 5 3.8 22 12 20 22 38.33 CAD Cart
SLHS-M10-16 M10 1.5 16 16 6 6 4.5 Full Thread 25 10 15 24.21 CAD Cart
SLHS-M10-20 M10 1.5 20 16 6 6 4.5 Full Thread 25 10 17 14.83 CAD Cart
SLHS-M10-25 M10 1.5 25 16 6 6 4.5 Full Thread 25 10 19 15.67 CAD Cart
SLHS-M10-30 M10 1.5 30 16 6 6 4.5 Full Thread 25 10 22 16.53 CAD Cart
SLHS-M10-35 M10 1.5 35 16 6 6 4.5 Full Thread 25 10 24 20.20 CAD Cart
SLHS-M10-40 M10 1.5 40 16 6 6 4.5 Full Thread 25 10 27 44.03 CAD Cart
SLHS-M10-45 M10 1.5 45 16 6 6 4.5 32 25 10 30 47.23 CAD Cart
SLHS-M10-50 M10 1.5 50 16 6 6 4.5 32 25 10 33 33.14 CAD Cart

●The hexagonal width across flat of SLHS-M10 has been changed from 7 mm to 6 mm.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SLHS
Main Body SUSXM7
(Equivalent to SUS304)
Strength Class A2-50 or more

Application

Reducing the size of equipment and devices

Characteristics

  • Socket head cap screws have low head heights.
  • Intended for reducing the size of devices and applications with limited overhead space.
  • Also, SVLS Socket Head Cap Screws with Low Profile with Ventilation Hole is available.SVLS
  • SLHS-UCL with cleanroom washing/cleanroom packing provided are available for some sizes.SLHS-UCL
  • Conforms to DIN 7984.
