Micro Screws

Small-diameter screws lower than M2.6 size for precision instruments.

Part Name	Hex Socket Head Cap Screws for Precision Instruments (Miniature Screws)	Hex Socket Head Cap Screws for Precision Instruments	Cross Recessed Flat Head Machine Screws for Precision Instruments	Cross Recessed Flat Head Machine Screws for Precision Instruments	Plastic Screw - Cross Recessed Flat Head Machine Screws for Precision Instruments - PEEK	Plastic Screw - Cross Recessed Flat Head Machine Screws for Precision Instruments - RENY	Pan Head Machine Screws for Precision Instruments	Pan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)	Pan Head Machine Screws for Precision Instruments
Part Number	SNS	SNSS	SNZF-TBZ	SNZFS	SPE-MF	SPA-MF	SNZ-TBZ	SNZ-TBZ-ALK	SNZS-S
Feature	Hex Socket Head Cap Screws for Precision Instruments	For Precision Instruments	For Precision Instruments	For Precision Instruments	Chemical-proof Heat-resistant For precision equipment	High Strength High Specific Strength For precision equipment	For Precision Instruments Pan Head Machine Screws	Pan Head Machine Screw for Precision Instruments Nylon Patch	For Precision Instruments
Material	Steel	SUSXM7 (Equivalent to SUS304)	Steel	SUSXM7 (Equivalent to SUS304)	PEEK	RENY	Steel	Steel	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Ferrosoferric Oxide Film (Black)	-	Black Trivalent Chromate Treatment	-	-	-	Black Trivalent Chromate Treatment	Black Trivalent Chromate Treatment	-
Thread Size	M1.6 ～ M2.5	M1 ～ M2.5	M1.4 ～ M2.6	M1.4 ～ M2.6	M1.2 ～ M1.6	M1.2 ～ M1.6	M1.4 ～ M2.6	M1.4 ～ M2.6	S0.6 ～ S0.8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNS-M1.6 SNS-M2 SNS-M2.5 SNS-M2-MS	SNSS-M1 SNSS-M1.4 SNSS-M1.6 SNSS-M2 SNSS-M2.5	SNZF-M1.4-TBZ SNZF-M1.7-TBZ SNZF-M2.6-TBZ SNZF-M2-TBZ	SNZFS-M1.4 SNZFS-M1.6 SNZFS-M1.7 SNZFS-M2 SNZFS-M2.6	SPE-M1.2-MF SPE-M1.4-MF SPE-M1.6-MF	SPA-M1.2-MF SPA-M1.4-MF SPA-M1.6-MF	SNZ-M1.4-TBZ SNZ-M1.6-TBZ SNZ-M1.7-TBZ SNZ-M2.5-TBZ SNZ-M2.6-TBZ SNZ-M2-TBZ	SNZ-M1.4-TBZ-ALK SNZ-M1.7-TBZ-ALK SNZ-M2.6-TBZ-ALK SNZ-M2-TBZ-ALK	SNZS-S0.6 SNZS-S0.8

Part Name	Pan Head Machine Screws for Precision Instruments	Pan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)	Pan head captive machine screws for precision instruments (miniature screws)	Titanium Pan Head Machine Screws for Precision Instruments (Miniature Screws)	Phosphor Bronze Pan Head Machine Screws for Precision Instruments (Miniature Screws)	Plastic screw - Cross Recessed Pan Head Machine Screws for Precision Instruments - PEEK	Plastic screw - Cross Recessed Pan Head Machine Screws for Precision Instruments - RENY	Hexalobular Socket Extra Low Profile Miniature Screw	Hexalobular Socket Extra Low Profile Miniature Screw / Nylon Patch
Part Number	SNZS-M	SNZS-ALK	SSCZS	SNZT	SNZP	SPE-MC	SPA-MC	SNZCXS	SNZCXS-ALK
Feature	For Precision Instruments	Pan Head Machine Screw for Precision Instruments Nylon Patch	Pan Head Machine Screws for Precision Instruments Captive/Loss Prevention	Lightweight Nonmagnetic Chemical Resistance	Non-magnetic Pan Head Machine Screws for Precision Instruments	Heat Resistance Chemical Resistance For Precision Instruments	High Strength High Specific Strength For Precision Instruments	Flat Head Machine Screw for Precision Instruments	Flat Head Machine Screw for Precision Instruments
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	C5191 (Phosphor Bronze)	PEEK	RENY	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M1 ～ M2.6	M1 ～ M2.6	M1.4 ～ M2.6	M1.6 ～ M2.5	M2 ～ M2.5	M1.2 ～ M1.6	M1.2 ～ M1.6	M1.4 ～ M2.5	M1.4 ～ M2.5
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNZS-M1 SNZS-M1.4 SNZS-M1.6 SNZS-M1.7 SNZS-M2 SNZS-M2.5 SNZS-M2.6	SNZS-M1.4-ALK SNZS-M1.6-ALK SNZS-M1.7-ALK SNZS-M1-ALK SNZS-M2.5-ALK SNZS-M2.6-ALK SNZS-M2-ALK	SSCZS-M1.4 SSCZS-M1.6 SSCZS-M1.7 SSCZS-M2 SSCZS-M2.5 SSCZS-M2.6	SNZT-M1.6 SNZT-M2 SNZT-M2.5	SNZP-M2 SNZP-M2.5	SPE-M1.2-MC SPE-M1.4-MC SPE-M1.6-MC	SPA-M1.2-MC SPA-M1.4-MC SPA-M1.6-MC	SNZCXS-M1.4 SNZCXS-M1.6 SNZCXS-M2 SNZCXS-M2.5	SNZCXS-M1.4-ALK SNZCXS-M1.6-ALK SNZCXS-M2.5-ALK SNZCXS-M2-ALK

Part Name	Set Screws for Precision Instruments	Hexagon Nut (For Miniature Screws)	Hex Socket Head Cap Screws (SUSXM7 / Cleanroom Washing/Cleanroom Packing)	Socket Head Cap Screws with Ventilation Hole	Socket Head Cap Screws with Small Head	Vented Socket Head Cap Screws with Small Head	Socket Head Cap Screws with Small Head and Nylon Patch	Hex Socket Head Cap Screws (SUS316L)	Socket Head Cap Screws with Small Head - 316L Stainless Steel
Part Number	SNTS-FP	SHNS	SNSS-UCL	SVSS	SNSS-SD	SVSS-SD	SNSS-SD-ALK	SNSL	SNSL-SD
Feature	For Precision Instruments Set Screws	Miniature Screws	Cleanroom Washing/Cleanroom Packing Provided	Standard	Small Head Small Space	Standard Small Head	Small Head Space-Saving Nylon Patch	Heat Resistance Corrosion Resistance Nonmagnetic	Small Head Heat Resistance Corrosion Resistance Non-magnetic
Material	-	SUS303	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M1 ～ M2.6	M1 ～ M2.6	M2 ～ M6	M2 ～ M12	M2 ～ M10	M2 ～ M10	M2 ～ M8	M2 ～ M8	M2 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNTS-M1.4-FP SNTS-M1.6-FP SNTS-M1-FP SNTS-M2.5-FP SNTS-M2.6-FP SNTS-M2-FP	SHNS-M1 SHNS-M1.4 SHNS-M1.6 SHNS-M2 SHNS-M2.5 SHNS-M2.6	SNSS-M2.5-UCL SNSS-M2-UCL SNSS-M3-UCL SNSS-M4-UCL SNSS-M5-UCL SNSS-M6-UCL	SVSS-M10 SVSS-M12 SVSS-M2 SVSS-M2.5 SVSS-M3 SVSS-M4 SVSS-M5 SVSS-M6 SVSS-M8	SNSS-M10-SD SNSS-M2.5-SD SNSS-M2-SD SNSS-M3-SD SNSS-M4-SD SNSS-M5-SD SNSS-M6-SD SNSS-M8-SD	SVSS-M10-SD SVSS-M2.5-SD SVSS-M2-SD SVSS-M3-SD SVSS-M4-SD SVSS-M5-SD SVSS-M6-SD SVSS-M8-SD	SNSS-M2.5-SD-ALK SNSS-M2-SD-ALK SNSS-M3-SD-ALK SNSS-M4-SD-ALK SNSS-M5-SD-ALK SNSS-M6-SD-ALK SNSS-M8-SD-ALK	SNSL-M2 SNSL-M2.5 SNSL-M3 SNSL-M4 SNSL-M5 SNSL-M6 SNSL-M8	SNSL-M2.5-SD SNSL-M2-SD SNSL-M3-SD SNSL-M4-SD SNSL-M5-SD SNSL-M6-SD SNSL-M8-SD

Part Name	Vented Socket Head Cap Screws with Small Head - 316L Stainless Steel	Hex Socket Head Cap Screws - High Intensity Titanium Alloy	Hex Socket Head Cap Screws - Phosphor Bronze	Socket Head Cap Screws with Low Profile	Socket Head Cap Screws with Low Profile	Hex Socket Low Profile Cap Screws (SUSXM7 / Cleanroom Washing/Cleanroom Packing)	Hexalobular Socket Head Cap Screws with Low Profile	Socket Head Cap Screws with Special Low Profile	Socket Head Cap Screw with Special Low Profile - Stainless Steel
Part Number	SVSL-SD	SNSTG	SNSP	SLH	SLHS	SLHS-UCL	SLTS	SSH	SSHS
Feature	Small Head Corrosion Resistance Non-magnetic	High Strength Lightweight Nonmagnetic Corrosion Resistance	Non-Magnetic	Low Profile Small Space	Low Profile Small Space	Low Profile Space-saving Cleanroom Washing/Cleanroom Packing Provided	Hexalobular Socket Low Profile Small Space	Special Low Profile Small Space	Special Low Profile Small Space
Material	SUS316L	Grade 5 Titanium	C5191 (Phosphor Bronze)	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Steel	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	Special Chemical Polishing	-	Ferrosoferric Oxide Film (Black)	-	-	-	Ferrosoferric Oxide Film (Black)	-
Thread Size	M2 ～ M8	M2 ～ M10	M2 ～ M8	M2 ～ M10	M2 ～ M10	M2 ～ M6	M2 ～ M6	M2 ～ M10	M2 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSL-M2-SD SVSL-M3-SD SVSL-M4-SD SVSL-M5-SD SVSL-M6-SD SVSL-M8-SD	SNSTG-M10 SNSTG-M2 SNSTG-M2.5 SNSTG-M3 SNSTG-M4 SNSTG-M5 SNSTG-M6 SNSTG-M8	SNSP-M2 SNSP-M2.5 SNSP-M3 SNSP-M4 SNSP-M5 SNSP-M6 SNSP-M8	SLH-M10 SLH-M2 SLH-M2.5 SLH-M3 SLH-M4 SLH-M5 SLH-M6 SLH-M8	SLHS-M10 SLHS-M2 SLHS-M2.5 SLHS-M3 SLHS-M4 SLHS-M5 SLHS-M6 SLHS-M8	SLHS-M2.5-UCL SLHS-M2-UCL SLHS-M3-UCL SLHS-M4-UCL SLHS-M5-UCL SLHS-M6-UCL	SLTS-M2 SLTS-M2.5 SLTS-M3 SLTS-M4 SLTS-M5 SLTS-M6	SSH-M10 SSH-M2 SSH-M2.5 SSH-M3 SSH-M4 SSH-M5 SSH-M6 SSH-M8	SSHS-M10 SSHS-M2 SSHS-M2.5 SSHS-M3 SSHS-M4 SSHS-M5 SSHS-M6 SSHS-M8

Part Name	Hex Socket Head Cap Screws with Special Low Profile (SUSXM7 / Cleanroom Washing/Cleanroom Packing)	Hex Socket Head Cap Screws with Special Low Profile (Stainless Steel / Nylon Patch)	Socket Head Cap Screws with Extreme Low & Small Head	Socket Head Cap Screws with Ultra Low Small Head and Nylon Patch	Hex Socket Head Cap Screws with Special Low Profile (Hastelloy C-22 equiv.)	Hexalobular Socket Head Cap Screws with Special Low Profile	Hexalobular Socket Head Cap Screws with Extreme Low Profile	Tamper Resistant Special Low Profile Cap Screws	Hexagon Socket Countersunk Head Screw - Molybdenum
Part Number	SSHS-UCL	SSHS-ALK	SSHS-SD	SSHS-SD-ALK	SSHH-C22	SSTS	SETS	SRSHS	SNFCM
Feature	Special Low Profile Space-saving Cleanroom Washing/Cleanroom Packing Provided	Special Low Profile Space-Saving Nylon Patch	Special Low ProfileSmall Head Small Space	Special Low Profile Small Head Space-Saving Nylon Patch	Chemical Resistance Special Low Profile Space-saving	Hexalobular Socket Special Low Profile Small Space	Hexalobular Socket Extra Low Profile Small Space	Tamper-resistant screw with special low Profile height	Heat-resistance
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Hastelloy equiv.	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Pure molybdenum
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M2 ～ M6	M2 ～ M8	M2 ～ M10	M2 ～ M8	M2 ～ M5	M2 ～ M8	M2 ～ M6	M2 ～ M4	M2 ～ M4
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSHS-M2.5-UCL SSHS-M2-UCL SSHS-M3-UCL SSHS-M4-UCL SSHS-M5-UCL SSHS-M6-UCL	SSHS-M2.5-ALK SSHS-M2-ALK SSHS-M3-ALK SSHS-M4-ALK SSHS-M5-ALK SSHS-M6-ALK SSHS-M8-ALK	SSHS-M10-SD SSHS-M2.5-SD SSHS-M2-SD SSHS-M3-SD SSHS-M4-SD SSHS-M5-SD SSHS-M6-SD SSHS-M8-SD	SSHS-M2.5-SD-ALK SSHS-M2-SD-ALK SSHS-M3-SD-ALK SSHS-M4-SD-ALK SSHS-M5-SD-ALK SSHS-M6-SD-ALK SSHS-M8-SD-ALK	SSHH-M2.5-C22 SSHH-M2-C22 SSHH-M3-C22 SSHH-M4-C22 SSHH-M5-C22	SSTS-M2 SSTS-M2.5 SSTS-M3 SSTS-M4 SSTS-M5 SSTS-M6 SSTS-M8	SETS-M2 SETS-M2.6 SETS-M3 SETS-M4 SETS-M5 SETS-M6	SRSHS-M2 SRSHS-M2.5 SRSHS-M3 SRSHS-M4	SNFCM-M2 SNFCM-M3 SNFCM-M4

Part Name	Cross Recessed Flat Head Machine Screws with Ventilation Hole	Plastic Screw - Cross Recessed Flat Head Machine Screws - PEEK	Plastic Screws - Cross Recessed Flat Head Machine Screws - RENY	Plastic Screws - Phillips Cross Recessed Flat Head Machine Screws - PC	Hexalobular Socket Flat Head Machine Screws	Triwing Flat Head Machine Screws	Phillips Cross Recessed Pan Head Machine Screws with Captive Washers	Phillips Cross Recessed Pan Head Machine Screws with Captive Washers	Cross Recessed Pan Head Machine Screws - Titanium
Part Number	SVFS	SPE-F	SPA-F	SPC-F	SNFXS	SRWFS	SNPI1S	SNPI3S	SNPT
Feature	Flat Head Machine Screws Small Space	Chemical Resistance Heat Resistance	High Strength High Specific Strength	Shock Resistance Weather Resistance	High TighteningTorque Flat Head MachineScrews Small Space	Triwing	Integrated Washers I=1	Integrated Washers I=3	Lightweight Nonmagnetic Chemical Resistance
Material	SUSXM7 (Equivalent to SUS304)	PEEK	RENY	PC	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium
Surface Treatment	-	-	-	-	-	-	-	-	Special Chemical Polishing
Thread Size	M2 ～ M6	M2 ～ M8	M2 ～ M8	M2 ～ M8	M2 ～ M6	M2 ～ M8	M2.5 ～ M5	M2 ～ M6	M2 ～ M5
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVFS-M2 SVFS-M2.6 SVFS-M3 SVFS-M4 SVFS-M5 SVFS-M6	SPE-M2.6-F SPE-M2-F SPE-M3-F SPE-M4-F SPE-M5-F SPE-M6-F SPE-M8-F	SPA-M2.6-F SPA-M2-F SPA-M3-F SPA-M4-F SPA-M5-F SPA-M6-F SPA-M8-F	SPC-M2.6-F SPC-M2-F SPC-M3-F SPC-M4-F SPC-M5-F SPC-M6-F SPC-M8-F	SNFXS-M2 SNFXS-M2.5 SNFXS-M3 SNFXS-M4 SNFXS-M5 SNFXS-M6	SRWFS-M2 SRWFS-M3 SRWFS-M4 SRWFS-M5 SRWFS-M6 SRWFS-M8	SNPI1S-M2.5 SNPI1S-M3 SNPI1S-M4 SNPI1S-M5	SNPI3S-M2 SNPI3S-M2.5 SNPI3S-M3 SNPI3S-M4 SNPI3S-M5 SNPI3S-M6	SNPT-M2 SNPT-M2.5 SNPT-M3 SNPT-M4 SNPT-M5

Part Name	Plastic Screws - Cross Recessed Pan Head Machine Screws - PEEK	Plastic Screw - Cross Recessed Pan Head Machine Screws - PPS	Plastic Screw - Cross Recessed Pan Head Machine Screws - RENY	Plastic Screw - Cross Recessed Pan Head Machine Screws - PC	Hexalobular Socket Pan Head Machine Screws	Plastic Hex Nut - PEEK	Plastic Hex Nut - PPS	Plastic Hex Nut - RENY	Plastic Hex Nut - PC
Part Number	SPE-P	SPS-P	SPA-P	SPC-P	SNPXS	SPE-N	SPS-N	SPA-N	SPC-N
Feature	Chemical Resistance Heat Resistance	High Specific Strength Heat Resistance Chemical Resistance	High Strength High Specific Strength	Shock Resistance Weather Resistance	High TighteningTorque Pan Head MachineScrews	Chemical Resistance Heat Resistance	Heat Resistance Chemical Resistance	High Strength	Shock Resistance Weather Resistance
Material	PEEK	PPS	RENY	PC	SUSXM7 (Equivalent to SUS304)	PEEK	PPS	RENY	PC
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M1.7 ～ M8	M2 ～ M6	M1.7 ～ M8	M1.7 ～ M8	M2 ～ M6	M2 ～ M10	M2 ～ M12	M2 ～ M16	M2 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M1.7-P SPE-M2.6-P SPE-M2-P SPE-M3-P SPE-M4-P SPE-M5-P SPE-M6-P SPE-M8-P	SPS-M2-P SPS-M3-P SPS-M4-P SPS-M5-P SPS-M6-P	SPA-M1.7-P SPA-M2.6-P SPA-M2-P SPA-M3-P SPA-M4-P SPA-M5-P SPA-M6-P SPA-M8-P	SPC-M1.7-P SPC-M2.6-P SPC-M2-P SPC-M3-P SPC-M4-P SPC-M5-P SPC-M6-P SPC-M8-P	SNPXS-M2 SNPXS-M2.5 SNPXS-M3 SNPXS-M4 SNPXS-M5 SNPXS-M6	SPE-M10-N SPE-M2.6-N SPE-M2-N SPE-M3-N SPE-M4-N SPE-M5-N SPE-M6-N SPE-M8-N	SPS-M10-N SPS-M12-N SPS-M2.6-N SPS-M2-N SPS-M3-N SPS-M4-N SPS-M5-N SPS-M6-N SPS-M8-N	SPA-M10-N SPA-M12-N SPA-M16-N SPA-M2.6-N SPA-M2-N SPA-M3-N SPA-M4-N SPA-M5-N SPA-M6-N SPA-M8-N	SPC-M2.6-N SPC-M2-N SPC-M3-N SPC-M4-N SPC-M5-N SPC-M6-N SPC-M8-N

Part Name	Washers with Ventilation Grooves	Miniature Ball Plunger - with Nylon Lock	Miniature Ball Plunger - with Nylon Lock	Miniature Ball Plunger (Made of Stainless Steel)	Hexagon Wrench (For Miniature Screws)
Part Number	SWAS-VF	FP	MP	MPS	SKH
Feature	Standard	Light load Spinning ball	Heavy-loaded Spinning ball	Spinning ball	Miniature Screws
Material	SUS304	-	-	-	Steel
Surface Treatment	-	-	-	-	Ferrosoferric Oxide Film (Black)
Thread Size	M2 ～ M12	M2 ～ M16	M2 ～ M16	M2 ～ M16	-
Operating Temperature (℃)	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SWAS-10-VF SWAS-12-VF SWAS-2.5-VF SWAS-2-VF SWAS-3-VF SWAS-4-VF SWAS-5-VF SWAS-6-VF SWAS-8-VF	FP-10 FP-12 FP-16 FP-2 FP-3 FP-4 FP-5 FP-6 FP-8	MP-10 MP-12 MP-16 MP-2 MP-3 MP-4 MP-5 MP-6 MP-8	MPS-10 MPS-10-Z MPS-12 MPS-12-Z MPS-16 MPS-16-Z MPS-2 MPS-3 MPS-3-Z MPS-4 MPS-4-Z MPS-5 MPS-5-Z MPS-6 MPS-6-Z MPS-8 MPS-8-Z	SKH-0.89 SKH-1.27 SKH-1.5 SKH-2 SKH-2.5 SKH-3

Miniature, precision screws from NBK

NBK defines "Miniature Screws" and "Precision Screws" as small screws with a nominal diameter of M2.6 or less.
These are also commonly referred to as Micro Screws, Camera Screws, and Eyeglass Screws
NBK offers a broad line of miniature, precision screws designed by years of extensive R&D.
The size range for these screws are S0.6 to M2.6; with options to choose for steel, stainless steel and plastic. Available head shapes include; flat, hex, and pan with socket head cap and set screw options.

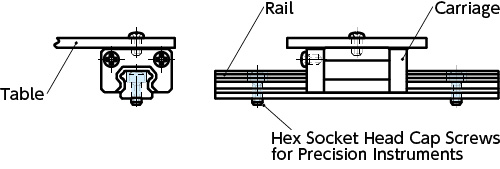

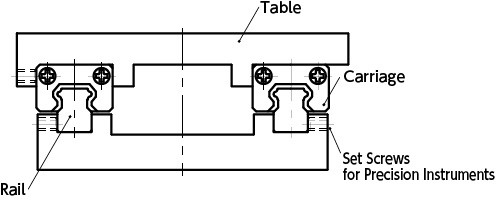

These screws are suitable for fixing and positioning precision instruments, electronic devices, and miniature linear guideway rails and tables.
