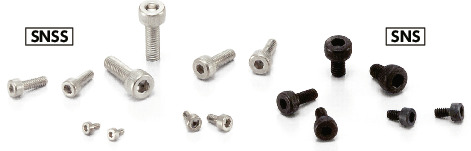

Hex Socket Head Cap Screws

SNSS

  • Miniature

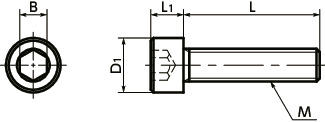

Dimension Drawing

SNSSHex Socket Head Cap Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M1
M1.4
M1.6
M2
M2.5
M3
M4
M5
M6
M8
M10
M12
M16
L
All
2
3
4
5
6
8
10
12
16
20
25
30
35
40
45
50
60

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch L D1 L1 B Max.
Torque
(N・m)
Qty per Pack Mass
(g)
Price
(USD)
CAD
Download
QTY
(Piece)
SNSS-M1-2 M1 0.25 2 2 1 0.9 0.02 10 0.025 7.40 CAD Cart
SNSS-M1-3 M1 0.25 3 2 1 0.9 0.02 10 0.03 7.40 CAD Cart
SNSS-M1-4 M1 0.25 4 2 1 0.9 0.02 10 0.035 7.40 CAD Cart
SNSS-M1-5 M1 0.25 5 2 1 0.9 0.02 10 0.039 7.40 CAD Cart
SNSS-M1.4-2 M1.4 0.3 2 2.6 1.4 1.3 0.07 10 0.062 7.40 CAD Cart
SNSS-M1.4-3 M1.4 0.3 3 2.6 1.4 1.3 0.07 10 0.07 7.40 CAD Cart
SNSS-M1.4-4 M1.4 0.3 4 2.6 1.4 1.3 0.07 10 0.077 7.40 CAD Cart
SNSS-M1.4-5 M1.4 0.3 5 2.6 1.4 1.3 0.07 10 0.085 7.40 CAD Cart
SNSS-M1.6-3 M1.6 0.35 3 3 1.6 1.5 0.1 10 0.09 7.40 CAD Cart
SNSS-M1.6-4 M1.6 0.35 4 3 1.6 1.5 0.1 10 0.1 7.40 CAD Cart
SNSS-M1.6-5 M1.6 0.35 5 3 1.6 1.5 0.1 10 0.11 7.40 CAD Cart
SNSS-M1.6-6 M1.6 0.35 6 3 1.6 1.5 0.1 10 0.12 7.40 CAD Cart
SNSS-M2-3 M2 0.4 3 3.8 2 1.5 0.22 10 0.16 5.89 CAD Cart
SNSS-M2-4 M2 0.4 4 3.8 2 1.5 0.22 10 0.18 5.89 CAD Cart
SNSS-M2-5 M2 0.4 5 3.8 2 1.5 0.22 10 0.2 5.89 CAD Cart
SNSS-M2-6 M2 0.4 6 3.8 2 1.5 0.22 10 0.22 5.89 CAD Cart
SNSS-M2-8 M2 0.4 8 3.8 2 1.5 0.22 10 0.26 5.89 CAD Cart
SNSS-M2-10 M2 0.4 10 3.8 2 1.5 0.22 10 0.3 5.89 CAD Cart
SNSS-M2.5-4 M2.5 0.45 4 4.5 2.5 2 0.46 10 0.35 4.99 CAD Cart
SNSS-M2.5-5 M2.5 0.45 5 4.5 2.5 2 0.46 10 0.38 4.99 CAD Cart
SNSS-M2.5-6 M2.5 0.45 6 4.5 2.5 2 0.46 10 0.41 4.99 CAD Cart
SNSS-M2.5-8 M2.5 0.45 8 4.5 2.5 2 0.46 10 0.47 4.99 CAD Cart
SNSS-M2.5-10 M2.5 0.45 10 4.5 2.5 2 0.46 10 0.53 4.99 CAD Cart
SNSS-M2.5-12 M2.5 0.45 12 4.5 2.5 2 0.46 10 0.59 4.99 CAD Cart
SNSS-M3-4 M3 0.5 4 5.5 3 2.5 0.95 20 0.63 5.58 CAD Cart
SNSS-M3-5 M3 0.5 5 5.5 3 2.5 0.95 20 0.67 4.01 CAD Cart
SNSS-M3-6 M3 0.5 6 5.5 3 2.5 0.95 20 0.71 2.43 CAD Cart
SNSS-M3-8 M3 0.5 8 5.5 3 2.5 0.95 20 0.8 2.43 CAD Cart
SNSS-M3-10 M3 0.5 10 5.5 3 2.5 0.95 20 0.88 2.86 CAD Cart
SNSS-M3-12 M3 0.5 12 5.5 3 2.5 0.95 20 0.96 3.00 CAD Cart
SNSS-M3-16 M3 0.5 16 5.5 3 2.5 0.95 20 1.2 3.00 CAD Cart
SNSS-M3-20 M3 0.5 20 5.5 3 2.5 0.95 20 1.4 3.00 CAD Cart
SNSS-M4-5 M4 0.7 5 7 4 3 2.2 20 1.4 4.29 CAD Cart
SNSS-M4-6 M4 0.7 6 7 4 3 2.2 20 1.5 3.15 CAD Cart
SNSS-M4-8 M4 0.7 8 7 4 3 2.2 20 1.7 3.15 CAD Cart
SNSS-M4-10 M4 0.7 10 7 4 3 2.2 20 1.8 3.15 CAD Cart
SNSS-M4-12 M4 0.7 12 7 4 3 2.2 20 2 3.72 CAD Cart
SNSS-M4-16 M4 0.7 16 7 4 3 2.2 20 2.3 3.72 CAD Cart
SNSS-M4-20 M4 0.7 20 7 4 3 2.2 20 2.7 3.72 CAD Cart
SNSS-M4-25 M4 0.7 25 7 4 3 2.2 20 3.2 3.72 CAD Cart
SNSS-M5-6 M5 0.8 6 8.5 5 4 4.4 20 2.2 4.86 CAD Cart
SNSS-M5-8 M5 0.8 8 8.5 5 4 4.4 20 2.5 4.58 CAD Cart
SNSS-M5-10 M5 0.8 10 8.5 5 4 4.4 20 2.7 3.15 CAD Cart
SNSS-M5-12 M5 0.8 12 8.5 5 4 4.4 20 3 3.72 CAD Cart
SNSS-M5-16 M5 0.8 16 8.5 5 4 4.4 20 3.5 3.72 CAD Cart
SNSS-M5-20 M5 0.8 20 8.5 5 4 4.4 20 4 4.29 CAD Cart
SNSS-M5-25 M5 0.8 25 8.5 5 4 4.4 20 4.8 6.29 CAD Cart
SNSS-M6-8 M6 1 8 10 6 5 7.5 20 4.3 4.86 CAD Cart
SNSS-M6-10 M6 1 10 10 6 5 7.5 20 4.7 4.58 CAD Cart
SNSS-M6-12 M6 1 12 10 6 5 7.5 20 5.1 3.72 CAD Cart
SNSS-M6-16 M6 1 16 10 6 5 7.5 20 5.8 4.29 CAD Cart
SNSS-M6-20 M6 1 20 10 6 5 7.5 20 6.5 4.29 CAD Cart
SNSS-M6-25 M6 1 25 10 6 5 7.5 20 7.6 6.01 CAD Cart
SNSS-M6-30 M6 1 30 10 6 5 7.5 20 8.3 6.58 CAD Cart
SNSS-M8-10 M8 1.25 10 13 8 6 18 10 10 6.15 CAD Cart
SNSS-M8-12 M8 1.25 12 13 8 6 18 10 11 5.29 CAD Cart
SNSS-M8-16 M8 1.25 16 13 8 6 18 10 12 5.51 CAD Cart
SNSS-M8-20 M8 1.25 20 13 8 6 18 10 13 5.44 CAD Cart
SNSS-M8-25 M8 1.25 25 13 8 6 18 10 15 6.44 CAD Cart
SNSS-M8-30 M8 1.25 30 13 8 6 18 10 17 6.65 CAD Cart
SNSS-M8-35 M8 1.25 35 13 8 6 18 10 19 7.44 CAD Cart
SNSS-M10-16 M10 1.5 16 16 10 8 36 5 21 2.79 CAD Cart
SNSS-M10-20 M10 1.5 20 16 10 8 36 5 23 3.72 CAD Cart
SNSS-M10-25 M10 1.5 25 16 10 8 36 5 25 5.58 CAD Cart
SNSS-M10-30 M10 1.5 30 16 10 8 36 5 28 4.08 CAD Cart
SNSS-M10-35 M10 1.5 35 16 10 8 36 5 30 6.80 CAD Cart
SNSS-M10-40 M10 1.5 40 16 10 8 36 5 33 8.37 CAD Cart
SNSS-M12-30 M12 1.75 30 18 12 10 63 1 39 1.43 CAD Cart
SNSS-M12-35 M12 1.75 35 18 12 10 63 1 43 1.43 CAD Cart
SNSS-M12-40 M12 1.75 40 18 12 10 63 1 47 2.50 CAD Cart
SNSS-M12-45 M12 1.75 45 18 12 10 63 1 50 1.65 CAD Cart
SNSS-M12-50 M12 1.75 50 18 12 10 63 1 55 1.86 CAD Cart
SNSS-M16-40 M16 2 40 24 16 14 158 1 91 3.22 CAD Cart
SNSS-M16-45 M16 2 45 24 16 14 158 1 98 3.43 CAD Cart
SNSS-M16-50 M16 2 50 24 16 14 158 1 106 3.43 CAD Cart
SNSS-M16-60 M16 2 60 24 16 14 158 1 122 6.37 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services

Material/Finish

SNSS
Main Body SUSXM7 (Equivalent to SUS304)

Application

Reducing the size of equipment and devices
Compact precision instruments

Characteristics

  • M1 - M16. Selection from abundant size variations is available to suit the device or equipment.
  • Captive Processing Service is supported for M10 and M12.
  • M3 to M8 captive-processed hex socket head cap screws SSC are available.SSC

Usage Example

For fixing miniature linear guideway rails and tables.

SNSSHex Socket Head Cap Screws
