SNZS-ALK

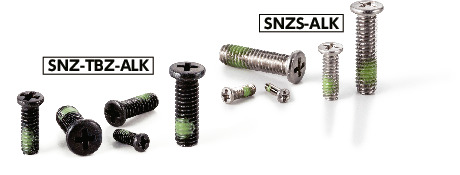

Pan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)

  • Miniature

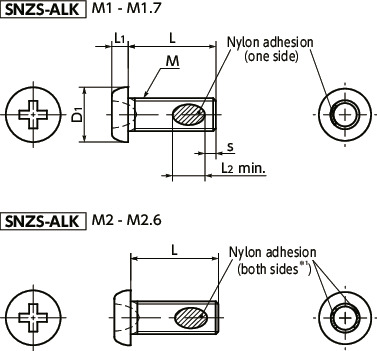

Dimension Drawing

SNZS-ALKPan Head Machine Screws for Precision Instruments (Miniature Screws with Nylon Patch)寸法図

*1: For dimension L of under 4 mm, nylon patch is on one side.

Specs/CAD

Select

Size(M)
All
1
1.4
1.6
1.7
2
2.5
2.6
L
All
2
3
4
5
6
8
10
12
14
2.5
3.5

Unit : mm

Part Number M L D1 L1 s*1 L2 Max. Tightening
Torque
(N・m)
Qty per Pack Mass
(g)
Price
(USD)
CAD Standard
SNZS-M1-2-ALK 1 2 1.8 0.45 0 0.7 0.01 50 0.014 23.80 CAD Cart
SNZS-M1-3-ALK 1 3 1.8 0.45 0 0.7 0.01 50 0.018 23.80 CAD Cart
SNZS-M1-4-ALK 1 4 1.8 0.45 0.5 0.7 0.01 50 0.022 23.80 CAD Cart
SNZS-M1-5-ALK 1 5 1.8 0.45 0.5 0.7 0.01 50 0.026 23.80 CAD Cart
SNZS-M1.4-2-ALK 1.4 2 2 0.5 0 1.1 0.03 50 0.025 23.80 CAD Cart
SNZS-M1.4-3-ALK 1.4 3 2 0.5 0 1.1 0.03 50 0.033 23.03 CAD Cart
SNZS-M1.4-4-ALK 1.4 4 2 0.5 0.6 1.1 0.03 50 0.041 23.03 CAD Cart
SNZS-M1.4-5-ALK 1.4 5 2 0.5 0.6 1.1 0.03 50 0.049 23.03 CAD Cart
SNZS-M1.4-6-ALK 1.4 6 2 0.5 0.6 1.1 0.03 50 0.058 23.80 CAD Cart
SNZS-M1.4-8-ALK 1.4 8 2 0.5 0.6 1.1 0.03 50 0.074 23.80 CAD Cart
SNZS-M1.4-10-ALK 1.4 10 2 0.5 0.6 1.1 0.03 50 0.091 23.80 CAD Cart
SNZS-M1.6-2-ALK 1.6 2 2.3 0.5 0 1.2 0.05 50 0.055 26.85 CAD Cart
SNZS-M1.6-3-ALK 1.6 3 2.3 0.5 0 1.2 0.05 50 0.065 23.03 CAD Cart
SNZS-M1.6-4-ALK 1.6 4 2.3 0.5 0.7 1.2 0.05 50 0.05 23.03 CAD Cart
SNZS-M1.6-5-ALK 1.6 5 2.3 0.5 0.7 1.2 0.05 50 0.036 23.03 CAD Cart
SNZS-M1.6-6-ALK 1.6 6 2.3 0.5 0.7 1.2 0.05 50 0.093 23.03 CAD Cart
SNZS-M1.6-8-ALK 1.6 8 2.3 0.5 0.7 1.2 0.05 50 0.11 29.93 CAD Cart
SNZS-M1.6-10-ALK 1.6 10 2.3 0.5 0.7 1.2 0.05 50 0.13 25.33 CAD Cart
SNZS-M1.6-12-ALK 1.6 12 2.3 0.5 0.7 1.2 0.05 50 0.15 29.93 CAD Cart
SNZS-M1.7-2-ALK 1.7 2 2.5 0.5 0 1.3 0.07 50 0.06 29.93 CAD Cart
SNZS-M1.7-3-ALK 1.7 3 2.5 0.5 0 1.3 0.07 50 0.07 29.16 CAD Cart
SNZS-M1.7-4-ALK 1.7 4 2.5 0.5 0.7 1.3 0.07 50 0.082 23.03 CAD Cart
SNZS-M1.7-5-ALK 1.7 5 2.5 0.5 0.7 1.3 0.07 50 0.094 23.03 CAD Cart
SNZS-M1.7-6-ALK 1.7 6 2.5 0.5 0.7 1.3 0.07 50 0.11 23.03 CAD Cart
SNZS-M1.7-8-ALK 1.7 8 2.5 0.5 0.7 1.3 0.07 50 0.13 23.80 CAD Cart
SNZS-M1.7-10-ALK 1.7 10 2.5 0.5 0.7 1.3 0.07 50 0.15 23.80 CAD Cart
SNZS-M1.7-12-ALK 1.7 12 2.5 0.5 0.7 1.3 0.07 50 0.18 23.80 CAD Cart
SNZS-M1.7-14-ALK 1.7 14 2.5 0.5 0.7 1.3 0.07 50 0.2 23.80 CAD Cart
SNZS-M2-2-ALK 2 2 3 0.6 0 1.6 0.12 50 0.08 23.80 CAD Cart
SNZS-M2-2.5-ALK 2 2.5 3 0.6 0 1.6 0.12 50 0.084 23.03 CAD Cart
SNZS-M2-3-ALK 2 3 3 0.6 0 1.6 0.12 50 0.09 23.03 CAD Cart
SNZS-M2-3.5-ALK 2 3.5 3 0.6 0 1.6 0.12 50 0.1 26.10 CAD Cart
SNZS-M2-4-ALK 2 4 3 0.6 0.8 1.6 0.12 50 0.11 21.49 CAD Cart
SNZS-M2-5-ALK 2 5 3 0.6 0.8 1.6 0.12 50 0.13 21.49 CAD Cart
SNZS-M2-6-ALK 2 6 3 0.6 0.8 1.6 0.12 50 0.14 21.49 CAD Cart
SNZS-M2-8-ALK 2 8 3 0.6 0.8 1.6 0.12 50 0.18 22.26 CAD Cart
SNZS-M2-10-ALK 2 10 3 0.6 0.8 1.6 0.12 50 0.21 24.56 CAD Cart
SNZS-M2-12-ALK 2 12 3 0.6 0.8 1.6 0.12 50 0.25 24.56 CAD Cart
SNZS-M2-14-ALK 2 14 3 0.6 0.8 1.6 0.12 50 0.28 24.56 CAD Cart
SNZS-M2.5-3-ALK 2.5 3 3.8 0.8 0 2 0.24 50 0.15 24.56 CAD Cart
SNZS-M2.5-4-ALK 2.5 4 3.8 0.8 0.9 2 0.24 50 0.17 25.33 CAD Cart
SNZS-M2.5-5-ALK 2.5 5 3.8 0.8 0.9 2 0.24 50 0.2 23.80 CAD Cart
SNZS-M2.5-6-ALK 2.5 6 3.8 0.8 0.9 2 0.24 50 0.23 23.80 CAD Cart
SNZS-M2.5-8-ALK 2.5 8 3.8 0.8 0.9 2 0.24 50 0.3 23.80 CAD Cart
SNZS-M2.6-2.5-ALK 2.6 2.5 4 0.8 0 2.1 0.28 50 0.16 25.33 CAD Cart
SNZS-M2.6-3-ALK 2.6 3 4 0.8 0 2.1 0.28 50 0.18 24.56 CAD Cart
SNZS-M2.6-4-ALK 2.6 4 4 0.8 0.9 2.1 0.28 50 0.21 24.56 CAD Cart
SNZS-M2.6-5-ALK 2.6 5 4 0.8 0.9 2.1 0.28 50 0.24 22.26 CAD Cart
SNZS-M2.6-6-ALK 2.6 6 4 0.8 0.9 2.1 0.28 50 0.27 24.56 CAD Cart
SNZS-M2.6-8-ALK 2.6 8 4 0.8 0.9 2.1 0.28 50 0.33 23.80 CAD Cart

*1: If L<4, dimension s is 0.
● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services

Material/Finish

SNZS-ALK
Main Body SUSXM7 (Equivalent to SUS304)
Nylon Patch Nylon 11

Application

Reducing the size of equipment and devices / Compact precision instruments / Return and fall prevention of screws

Characteristics

  • M1-M2.6. Miniature screw with nylon patch for precision instruments.
  • The friction of the nylon adhered to the thread suppresses the return rotation of the thread.
