Non-Magnetic

Image Hex Socket Head Cap Screw with Special Low Profile (SUS316L, with Ventilation Hole) Hex Socket Head Cap Screw with Special Low Profile (Titanium, with Ventilation Hole) Hex Socket Head Cap Screws with Ventilation Hole - High Intensity Stainless Steel Socket Head Cap Screw - Low Profile - SUS316L Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screws - High Intensity S.S. Hex Socket Head Cap Screws - High Intensity S.S. Hex Socket Head Cap Screws (SUS316L) Hex Socket Head Cap Screws - High Intensity Titanium Alloy
Part Name Hex Socket Head Cap Screw with Special Low Profile (SUS316L, with Ventilation Hole) Hex Socket Head Cap Screw with Special Low Profile (Titanium, with Ventilation Hole) Hex Socket Head Cap Screws with Ventilation Hole - High Intensity Stainless Steel Socket Head Cap Screw - Low Profile - SUS316L Socket Head Cap Screw with Special Low Profile - Stainless Steel Hex Socket Head Cap Screws - High Intensity S.S. Hex Socket Head Cap Screws - High Intensity S.S. Hex Socket Head Cap Screws (SUS316L) Hex Socket Head Cap Screws - High Intensity Titanium Alloy
Part Number SVSHL SVSHT SVSLG SLHL SSHL SNSX-88 SNSX-109 SNSL SNSTG
Feature Special Low Profile
Small Space		 Lightweight
Nonmagnetic
Chemical Resistance		 High Strength(Equivalent to Strength Class 10.8) Low Profile
Small Space		 Special Low Profile
Small Space		 High Strength
HeatResistance
Corrosion Resistance
Nonmagnetic		 High Strength
HeatResistance
Corrosion Resistance
Nonmagnetic		 Heat Resistance
Corrosion Resistance
Nonmagnetic		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance
Material SUS316L Pure Titanium SUS316L SUS316L SUS316L SUS316L HiMo SUS316L HiMo SUS316L 64 Titanium
Surface Treatment - - - - - - - - -
Thread Size M3 ～ M5 M3 ～ M6 M3 ～ M6 M3 ～ M6 M3 ～ M5 M3 ～ M8 M6 ～ M12 M1.6 ～ M8 M2 ～ M10
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SVSHL-M3 SVSHL-M4 SVSHL-M5 SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6 SVSLG-M3 SVSLG-M4 SVSLG-M5 SVSLG-M6 SLHL-M3 SLHL-M4 SLHL-M5 SLHL-M6 SSHL-M3 SSHL-M4 SSHL-M5 SNSX-M3-88 SNSX-M4-88 SNSX-M5-88 SNSX-M6-88 SNSX-M8-88 SNSX-M10-109 SNSX-M12-109 SNSX-M6-109 SNSX-M8-109 SNSL-M1.6 SNSL-M2 SNSL-M2.5 SNSL-M3 SNSL-M4 SNSL-M5 SNSL-M6 SNSL-M8 SNSTG-M10 SNSTG-M2 SNSTG-M2.5 SNSTG-M3 SNSTG-M4 SNSTG-M5 SNSTG-M6 SNSTG-M8
Image Hex Socket Head Cap Screws - Titanium Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Pan Head Machine Screws - Titanium Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Flat Head Machine Screws - Titanium Hex Nuts / Hex Flange Nuts - Titanium Hex Nuts / Hex Flange Nuts - Titanium Hex Lock Nuts - Titanium Washers - Titanium
Part Name Hex Socket Head Cap Screws - Titanium Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Pan Head Machine Screws - Titanium Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy Cross Recessed Flat Head Machine Screws - Titanium Hex Nuts / Hex Flange Nuts - Titanium Hex Nuts / Hex Flange Nuts - Titanium Hex Lock Nuts - Titanium Washers - Titanium
Part Number SNST SNPTG SNPT SNFTG SNFT SHNT SHNT-F SWUT SWAT-F
Feature Lightweight
Nonmagnetic
Chemical Resistance		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 High Strength
Lightweight
Nonmagnetic
Corrosion Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 Lightweight
Nonmagnetic
Chemical Resistance		 Lightweight
Nonmagnetic
Chemical Resistance
With Flange		 Lightweight
Nonmagnetic
Vibration Resistant		 Lightweight
Nonmagnetic
Chemical Resistance
Material Pure Titanium β Titanium Pure Titanium β Titanium Pure Titanium Pure Titanium Pure Titanium Pure Titanium Pure Titanium
Surface Treatment - - - - - - - - -
Thread Size M3 ～ M6 M3 ～ M5 M2 ～ M5 M3 ～ M5 M3 ～ M4 M3 ～ M10 M3 ～ M10 M3 ～ M10 M3 ～ M10
CAD CAD CAD CAD CAD CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications Specifications
List SNST-M3 SNST-M4 SNST-M5 SNST-M6 SNPTG-M3 SNPTG-M4 SNPTG-M5 SNPT-M2 SNPT-M2.5 SNPT-M3 SNPT-M4 SNPT-M5 SNFTG-M3 SNFTG-M4 SNFTG-M5 SNFT-M3 SNFT-M4 SHNT-M10 SHNT-M3 SHNT-M4 SHNT-M5 SHNT-M6 SHNT-M8 SHNT-M10-F SHNT-M3-F SHNT-M4-F SHNT-M5-F SHNT-M6-F SHNT-M8-F SWUT-M10 SWUT-M3 SWUT-M4 SWUT-M5 SWUT-M6 SWUT-M8 SWAT-10-F SWAT-3-F SWAT-4-F SWAT-5-F SWAT-6-F SWAT-8-F

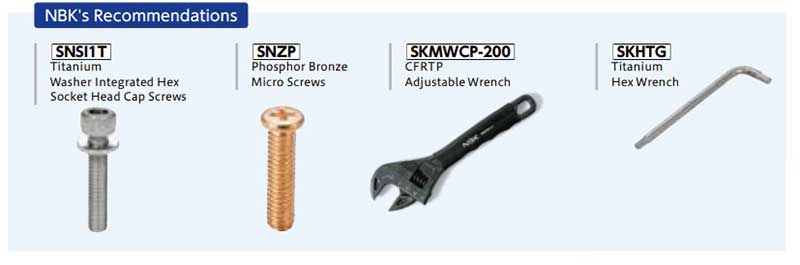

Image Washers - Titanium Hex Socket Head Cap Screws - Phosphor Bronze CFRTP Adjustable Wrench Titanium Hexagon Key
Part Name Washers - Titanium Hex Socket Head Cap Screws - Phosphor Bronze CFRTP Adjustable Wrench Titanium Hexagon Key
Part Number SWAT-S SNSP SKMWCP-200 SKHTG
Feature Lightweight
Nonmagnetic
Chemical Resistance		 Non-Magnetic Non-magnetic Tool Non-magnetic Tool
Material Pure Titanium C5191 (Phosphor Bronze) CFRTP (Carbon Fiber Reinforced Thermoplastics resin) 64 Titanium
Surface Treatment - - - Barrel Polishing
Thread Size M3 ～ M10 M2 ～ M8 - -
CAD CAD CAD CAD CAD
Specifications Specifications Specifications Specifications Specifications
List SWAT-10-S SWAT-3-S SWAT-4-S SWAT-5-S SWAT-6-S SWAT-8-S SNSP-M2 SNSP-M2.5 SNSP-M3 SNSP-M4 SNSP-M5 SNSP-M6 SNSP-M8 SKMWCP-200 SKHTG-1.5 SKHTG-2 SKHTG-2.5 SKHTG-3 SKHTG-4 SKHTG-5 SKHTG-6
