Low Outgassing

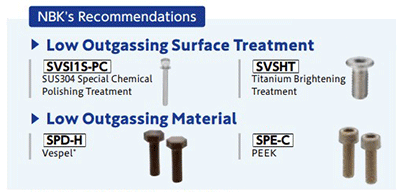

These are screws made of materials and surface treatments that emit low levels of outgassing.
Due to their minimal outgassing, these screws are ideal for vacuum environments such as vacuum chambers used in semiconductor manufacturing.

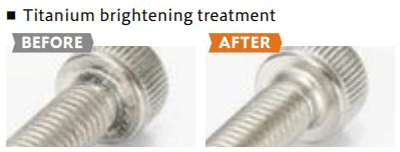

There are also titanium screws with low outgassing that have undergone brightening treatment.
Low-Outgassing_2en Low-Outgassing_1en
＊Vespel is a registered trademark of DuPont.

Part Name	Socket Head Cap Screws with Ventilation Hole	Socket Head Cap Screws with Ventilation Hole - Chemical Polish	Hex Socket Head Cap Screws (with Ventilation Hole / Inch Screws)	Hex Socket Head Cap Screw with Captive Washer and Ventilation Hole - Chemical Polish	Hex Socket Head Cap Screws with Ventilation Hole - Titanium	Hex Socket Head Cap Screw with Special Low Profile (Titanium, with Ventilation Hole)	Vented Socket Head Cap Screws with Small Head - Titanium	Vented Socket Head Cap Screws with Ultra Low Small Head - Titanium	Hexagon Head Bolts (with Ventilation Hole)
Part Number	SVSS	SVSS-PC	SVSS(INCH)	SVSI1S-PC	SVST	SVSHT	SVST-SD	SVSHT-SD	SVHS
Feature	Standard	Low outgas	Inch Thread Socket Head Cap Screws	Integrated Washers I=1	Lightweight Nonmagnetic Chemical Resistance	Lightweight Nonmagnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance Lightweight	Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight	Hex head screws
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Equivalent to SUS304	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	Special Chemical Polishing	-	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	Special Chemical Polishing	-
Thread Size	M2 ～ M12	M3 ～ M12	No.4-40UNC ～ 1/4-20UNC	M3 ～ M6	M3 ～ M5	M3 ～ M6	M3 ～ M5	M3 ～ M6	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSS-M10 SVSS-M12 SVSS-M2 SVSS-M2.5 SVSS-M3 SVSS-M4 SVSS-M5 SVSS-M6 SVSS-M8	SVSS-M10-PC SVSS-M12-PC SVSS-M3-PC SVSS-M4-PC SVSS-M5-PC SVSS-M6-PC SVSS-M8-PC	SVSS-#10-24 SVSS-#10-32 SVSS-#4-40 SVSS-#5-40 SVSS-#6-32 SVSS-#8-32 SVSS-1/4-20	SVSI1S-M3-PC SVSI1S-M4-PC SVSI1S-M5-PC SVSI1S-M6-PC	SVST-M3 SVST-M4 SVST-M5	SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6	SVST-M3-SD SVST-M4-SD SVST-M5-SD	SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD	SVHS-M3 SVHS-M4 SVHS-M5 SVHS-M6 SVHS-M8

Part Name	Phillips Cross Recessed Flat Head Titanium Machine Screws (with Ventilation Hole)	Phillips Cross Recessed Pan Head Titanium Machine Screws (with Ventilation Hole)	Washers with Ventilation Grooves	Washers with Ventilation Grooves - Chemical Polish	Hex Socket Head Cap Screws - Super Black	Hex Socket Head Cap Screws - Low Temperature Black Chrome	Titanium Hex Socket Head Cap Screws with Captive Washers	Titanium Hex Socket Head Cap Screws with Captive Washers	Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment
Part Number	SVFT	SVPT	SWAS-VF	SWAS-VF-PC	SNSS-BK	SNSS-RY	SNSI1T	SNSI3T	SSC-RY
Feature	Titanium Phillips Cross Recessed Flat Head Machine Screw Low outgas Nonmagnetic	Titanium Phillips Cross Recessed Pan Head Machine Screw Low outgas Nonmagnetic	Standard	Low outgas	Reflection Resistance Corrosion Resistance	Chemical Resistance Reflection Resistance Seizing Prevention	Integrated Washers I=1	Integrated Washers I=3	Chemical Resistance Anti-reflection Seizing Prevention Captive/Loss Prevention
Material	Grade 2 Titanium	Grade 2 Titanium	SUS304	SUS304	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Special Chemical Polishing	Special Chemical Polishing	-	Special Chemical Polishing	Stainless Steel Black	Low temperature black chrome treatment	Special Chemical Polishing	Special Chemical Polishing	Low temperature black chrome treatment
Thread Size	M3 ～ M4	M3 ～ M5	M2 ～ M12	M3 ～ M12	M2 ～ M10	M3 ～ M10	M3 ～ M6	M3 ～ M6	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVFT-M3 SVFT-M4	SVPT-M3 SVPT-M4 SVPT-M5	SWAS-10-VF SWAS-12-VF SWAS-2.5-VF SWAS-2-VF SWAS-3-VF SWAS-4-VF SWAS-5-VF SWAS-6-VF SWAS-8-VF	SWAS-10-VF-PC SWAS-12-VF-PC SWAS-3-VF-PC SWAS-4-VF-PC SWAS-5-VF-PC SWAS-6-VF-PC SWAS-8-VF-PC	SNSS-M10-BK SNSS-M2-BK SNSS-M3-BK SNSS-M4-BK SNSS-M5-BK SNSS-M6-BK SNSS-M8-BK	SNSS-M10-RY SNSS-M3-RY SNSS-M4-RY SNSS-M5-RY SNSS-M6-RY SNSS-M8-RY	SNSI1T-M3 SNSI1T-M4 SNSI1T-M5 SNSI1T-M6	SNSI3T-M3 SNSI3T-M4 SNSI3T-M5 SNSI3T-M6	SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY

Part Name	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SP-1）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SP-1）	Plastic Screw - Socket Head Cap Screws - VESPEL（Grade：SCP-5000）	Plastic Screw - Hex Head Screws - VESPEL（Grade：SCP-5000）	Plastic Screws - Hex Socket Head Cap Screws - PEEK GF30	Plastic Screws - Hex Socket Head Cap Screws - PEEK	Plastic Screws - Hexalobular Socket Head Cap Screw with Low Head - PEEK	Plastic Screws - Hexalobular Socket Head Cap Screw with Ultra Low Head - PEEK	Plastic Screws - Hex Posts - PEEK
Part Number	SPD-C	SPD-H	SPDC-C	SPDC-H	SPEG-C	SPE-C	SPE-LH	SPE-SH	SPE-HB
Feature	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Heat Resistance Chemical Resistance Low Outgas	Chemical Resistance Heat Resistance High Strength	Chemical Resistance Heat Resistance	Heat Resistance Chemical Resistance Low Profile Space Saving	Heat Resistance Chemical Resistance Low Profile Space Saving	PEEK Chemical Resistance Heat Resistance
Material	VESPEL® SP-1	VESPEL® SP-1	VESPEL® SCP-5000	VESPEL® SCP-5000	PEEK GF30	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M5	M3 ～ M12	M3 ～ M6	M3 ～ M6	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPD-M3-C SPD-M4-C SPD-M5-C SPD-M6-C SPD-M8-C	SPD-M3-H SPD-M4-H SPD-M5-H SPD-M6-H SPD-M8-H	SPDC-M3-C SPDC-M4-C SPDC-M5-C SPDC-M6-C SPDC-M8-C	SPDC-M3-H SPDC-M4-H SPDC-M5-H SPDC-M6-H SPDC-M8-H	SPEG-M3-C SPEG-M4-C SPEG-M5-C	SPE-M10-C SPE-M12-C SPE-M3-C SPE-M4-C SPE-M5-C SPE-M6-C SPE-M8-C	SPE-M3-LH SPE-M4-LH SPE-M5-LH SPE-M6-LH	SPE-M3-SH SPE-M4-SH SPE-M5-SH SPE-M6-SH	SPE-M3-HB SPE-M4-HB SPE-M5-HB SPE-M6-HB SPE-M8-HB

Part Name	Plastic Screw - Cross Recessed Flat Head Machine Screws - PEEK	Plastic Screw - Hex Socket Set Screws - PEEK	Plastic Screws - Cross Recessed Pan Head Machine Screws - PEEK	Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK	Plastic Screw - Hex Head Screws - PEEK	Plastic Screw - Hex Nuts / Washers - PEEK	Plastic Screw - Hex Nuts / Washers - PEEK	Plastic Screw - Socket Head Cap Screw Plugs - PEEK	Plastic Screw - Cross Recessed Pan Head Machine Screw - PEEK - Inch Thread
Part Number	SPE-F	SPE-T	SPE-P	SPE-FT	SPE-H	SPE-N	SPE-W	SPE-R	SPE-P(INCH)
Feature	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance Full Thread	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Chemical Resistance Heat Resistance	Heat Resistance Chemical Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK	PEEK
Surface Treatment	-	-	-	-	-	-	-	-	-
Thread Size	M2 ～ M8	M3 ～ M8	M1.7 ～ M8	M3 ～ M6	M4 ～ M12	M2 ～ M10	M2 ～ M10	R1/8" ～ R3/8"	No.2-56UNC ～ 1/4-20UNC
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M2.6-F SPE-M2-F SPE-M3-F SPE-M4-F SPE-M5-F SPE-M6-F SPE-M8-F	SPE-M3-T SPE-M4-T SPE-M5-T SPE-M6-T SPE-M8-T	SPE-M1.7-P SPE-M2.6-P SPE-M2-P SPE-M3-P SPE-M4-P SPE-M5-P SPE-M6-P SPE-M8-P	SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT	SPE-M10-H SPE-M12-H SPE-M4-H SPE-M5-H SPE-M6-H SPE-M8-H	SPE-M10-N SPE-M2.6-N SPE-M2-N SPE-M3-N SPE-M4-N SPE-M5-N SPE-M6-N SPE-M8-N	SPE-10-W SPE-2.6-W SPE-2-W SPE-3-W SPE-4-W SPE-5-W SPE-6-W SPE-8-W	SPE-1-R SPE-2-R SPE-3-R	SPE-#10-24-P SPE-#10-32-P SPE-#2-56-P SPE-#4-40-P SPE-#6-32-P SPE-#8-32-P SPE-1/4-20

Part Name	Plastic Screw - Hex Head Screw - Inch Thread - PEEK	Plastic Screw - Hex Socket Head Cap Screw - Inch Thread - PEEK	Plastic Screw - Slotted Pan Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Slotted Flat Head Machine Screw - PEEK - Inch Thread	Plastic Screw - Hex Nut - Inch Thread - PEEK	Cover Caps
Part Number	SPE-H(INCH)	SPE-C(INCH)	SPE-PS(INCH)	SPE-FS(INCH)	SPE-N(INCH)	SCAP-AL
Feature	Chemical Resistance Heat Resistance	Chemical Resistance	Chemical Resistance	Chemical Resistance	Chemical Resistance	Low Outgas Corrosion Resistance
Material	PEEK	PEEK	PEEK	PEEK	PEEK	A5056
Surface Treatment	-	-	-	-	-	-
Thread Size	1/4-20UNC	No.4-40UNC ～ 1/4-20UNC	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.10-32UNF	No.4-40UNC ～ No.8-32UNC	M5 ～ M16
Operating Temperature (℃)	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-1/4-20-H	SPE-#10-24-C SPE-#10-32-C SPE-#4-40-C SPE-#6-32-C SPE-#8-32-C SPE-1/4-20-C	SPE-#10-32-PS SPE-#4-40-PS SPE-#6-32-PS SPE-#8-32-PS	SPE-#10-32-FS SPE-#4-40-FS SPE-#6-32-FS SPE-#8-32-FS	SPE-#4-40-N SPE-#6-32-N SPE-#8-32-N	SCAP-10-AL SCAP-3-AL SCAP-4-AL SCAP-5-AL SCAP-6-AL SCAP-8-AL
