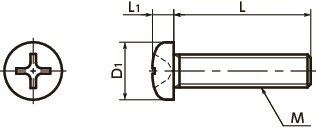

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | Cross-recessed Socket Number |
Tension Rupture Load(N)＊1 |
Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
QTY (Pack) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPA-M2.6-4-P | M2.6 | 0.45 | 4 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.077 | 8.23 | CAD | Cart |
| SPA-M2.6-5-P | M2.6 | 0.45 | 5 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.083 | 8.23 | CAD | Cart |
| SPA-M2.6-6-P | M2.6 | 0.45 | 6 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.07 | 8.23 | CAD | Cart |
| SPA-M2.6-8-P | M2.6 | 0.45 | 8 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.085 | 8.23 | CAD | Cart |
| SPA-M2.6-10-P | M2.6 | 0.45 | 10 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.097 | 9.74 | CAD | Cart |
| SPA-M2.6-12-P | M2.6 | 0.45 | 12 | 4.5 | 1.7 | 1 | 611 | 0.22 | 50 | 0.11 | 9.74 | CAD | Cart |
＊1： Values in chart are for reference only. They are not guaranteed values.The recommendation torque is 50% of the torsional torque.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereRelated Services
Material/Finish
| SPA-P | |
|---|---|
| Main body | RENY＊1（50％ Glass Fiber Reinforced Polyamide MXD6）（Ivory） |
| Heat Resistance Temperature＊2 |
105℃ |
＊1： RENY is a registered trademark of Mitsubishi Engineering-Plastics Corporation.
＊2： This is the value for the plastic material. The maximum operating temperature of the product changes with performance conditions such as tightening torque.
Application
Electrical and electronic equipment / Insulation and dewcondensation prevention for refrigerators and freezers / Aquatic
applications / Electrochemical plating / Lightweight applications in
automobiles, aircrafts, and spacecrafts
Characteristics
- RENY is a thermoplastic super-engineering plastic with excellent tensile and flexural strength.
- Screws have excellent fatigue resistance, creep resistance, and thermal insulation.
- While it is nearly as strong as metal, its weight is approximately 1/5 of iron.
- The properties and precautions of plastic screws⇒Plastic Screws
