Plastic Screw - Cross Recessed Flat Head Machine Screws - PEEK

SPE-F

  • Heat-resistance
  • Chemical-proof

Dimension Drawing

SPE-FPlastic Screw - Cross Recessed Flat Head Machine Screws - PEEK寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M2
M2.6
M3
M4
M5
M6
M8
L
All
4
5
6
8
10
12
15
16
20
25
30

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch L D1 L1 Cross-recessed
Socket Number
Tension Rupture Load
(N)*1
Torsional Torque
(N・m)*1
Qty per Pack Mass
(g)
Price
(USD)
CAD
Download
QTY
(Pack)
SPE-M2-4-F M2 0.4 4 4 1.2 1 165 0.071 20 0.02 11.01 CAD Cart
SPE-M2-5-F M2 0.4 5 4 1.2 1 165 0.071 20 0.023 11.01 CAD Cart
SPE-M2-6-F M2 0.4 6 4 1.2 1 165 0.071 20 0.03 11.01 CAD Cart
SPE-M2-8-F M2 0.4 8 4 1.2 1 165 0.071 20 0.035 11.01 CAD Cart
SPE-M2-10-F M2 0.4 10 4 1.2 1 165 0.071 20 0.039 12.05 CAD Cart
SPE-M2.6-4-F M2.6 0.45 4 5.2 1.5 1 291 0.15 20 0.045 11.01 CAD Cart
SPE-M2.6-6-F M2.6 0.45 6 5.2 1.5 1 291 0.15 20 0.055 11.01 CAD Cart
SPE-M2.6-8-F M2.6 0.45 8 5.2 1.5 1 291 0.15 20 0.055 11.01 CAD Cart
SPE-M2.6-10-F M2.6 0.45 10 5.2 1.5 1 291 0.15 20 0.0716 11.01 CAD Cart
SPE-M3-5-F M3 0.5 5 6 1.75 2 405 0.21 20 0.057 12.05 CAD Cart
SPE-M3-6-F M3 0.5 6 6 1.75 2 405 0.21 20 0.088 12.05 CAD Cart
SPE-M3-8-F M3 0.5 8 6 1.75 2 405 0.21 20 0.1 12.05 CAD Cart
SPE-M3-10-F M3 0.5 10 6 1.75 2 405 0.21 20 0.12 12.05 CAD Cart
SPE-M3-12-F M3 0.5 12 6 1.75 2 405 0.21 20 0.13 23.48 CAD Cart
SPE-M3-15-F M3 0.5 15 6 1.75 2 405 0.21 20 0.15 25.95 CAD Cart
SPE-M3-16-F M3 0.5 16 6 1.75 2 405 0.21 20 0.16 26.24 CAD Cart
SPE-M3-20-F M3 0.5 20 6 1.75 2 405 0.21 20 0.18 30.46 CAD Cart
SPE-M3-25-F M3 0.5 25 6 1.75 2 405 0.21 20 0.22 35.22 CAD Cart
SPE-M4-6-F M4 0.7 6 8 2.3 2 738 0.47 20 0.17 16.65 CAD Cart
SPE-M4-8-F M4 0.7 8 8 2.3 2 738 0.47 20 0.2 16.65 CAD Cart
SPE-M4-10-F M4 0.7 10 8 2.3 2 738 0.47 20 0.22 16.65 CAD Cart
SPE-M4-12-F M4 0.7 12 8 2.3 2 738 0.47 20 0.25 20.50 CAD Cart
SPE-M4-15-F M4 0.7 15 8 2.3 2 738 0.47 20 0.29 23.48 CAD Cart
SPE-M4-16-F M4 0.7 16 8 2.3 2 738 0.47 20 0.3 23.48 CAD Cart
SPE-M4-20-F M4 0.7 20 8 2.3 2 738 0.47 20 0.35 26.24 CAD Cart
SPE-M4-25-F M4 0.7 25 8 2.3 2 738 0.47 20 0.42 28.76 CAD Cart
SPE-M4-30-F M4 0.7 30 8 2.3 2 738 0.47 20 0.47 84.58 CAD Cart
SPE-M5-8-F M5 0.8 8 10 2.8 2 1234 0.96 10 0.37 17.63 CAD Cart
SPE-M5-10-F M5 0.8 10 10 2.8 2 1234 0.96 10 0.41 17.63 CAD Cart
SPE-M5-12-F M5 0.8 12 10 2.8 2 1234 0.96 10 0.45 20.58 CAD Cart
SPE-M5-15-F M5 0.8 15 10 2.8 2 1234 0.96 10 0.52 20.58 CAD Cart
SPE-M5-20-F M5 0.8 20 10 2.8 2 1234 0.96 10 0.6 20.58 CAD Cart
SPE-M5-25-F M5 0.8 25 10 2.8 2 1234 0.96 10 0.7 29.23 CAD Cart
SPE-M5-30-F M5 0.8 30 10 2.8 2 1234 0.96 10 0.8 54.44 CAD Cart
SPE-M6-10-F M6 1 10 12 3.4 3 1749 1.64 10 0.41 27.00 CAD Cart
SPE-M6-12-F M6 1 12 12 3.4 3 1749 1.64 10 0.65 29.22 CAD Cart
SPE-M6-15-F M6 1 15 12 3.4 3 1749 1.64 10 0.82 29.23 CAD Cart
SPE-M6-20-F M6 1 20 12 3.4 3 1749 1.64 10 0.94 37.80 CAD Cart
SPE-M6-25-F M6 1 25 12 3.4 3 1749 1.64 10 1.1 54.90 CAD Cart
SPE-M6-30-F M6 1 30 12 3.4 3 1749 1.64 10 1.2 54.90 CAD Cart
SPE-M8-15-F M8 1.25 15 16 4.4 3 3261 3.68 5 1.3 40.94 CAD Cart
SPE-M8-20-F M8 1.25 20 16 4.4 3 3261 3.68 5 1.9 40.95 CAD Cart
SPE-M8-25-F M8 1.25 25 16 4.4 3 3261 3.68 5 2.2 43.88 CAD Cart
SPE-M8-30-F M8 1.25 30 16 4.4 3 3261 3.68 5 2.4 46.82 CAD Cart

*1: Values in chart are for reference only. They are not guaranteed values.The recommendation torque is 50% of the torsional torque.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services

Material/Finish

SPE-F
Main body PEEK (Polyether Ether Ketone) (Light Brown)
Heat Resistance Temperature*1 260℃

*1: This is the value for the plastic material.The maximum operating temperature of the product changes with performance conditions such as tightening torque.


Application

FPD production equipment / Semiconductor devices / Printed
circuit board etching devices / Metallic surface treatment
equipment and facilities / Chemical plants / Transformers / Electrical
and electronic equipment / Hot water pumps / Chemical pumps

Characteristics

  • PEEK is a thermoplastic super-engineering plastic with excellent physical and chemical properties.
  • These screws have excellent chemical resistance. They are mostly unaffected by chemicals excluding concentrate sulfuric acid, concentrate nitric acid, and concentrate hydrofluoric acid.
  • These screws have excellent heat resistance, water resistance, and high heat resistance strength.
  • These screws have excellent abrasion, shock, and fatigue resistance.
  • They have high incombustibility that meets V-0 of UL 94.
  • The properties and precautions of plastic screws⇒Plastic Screws

Precautions for Use

Because a cumulative pitch difference is created when PEEK screws are manufactured, use these screws with nuts. If a nut is not used, use a 20 mm or less fit with female thread.

Related Products

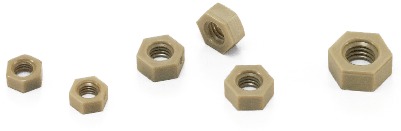

SPE-N Plastic Hexagon Nut(PEEK)is available.
SPE-NSPE-W

SPE-FPlastic Screw - Cross Recessed Flat Head Machine Screws - PEEK


Product List

Click here to see Plastic Screws

Click here to see Special Screws
