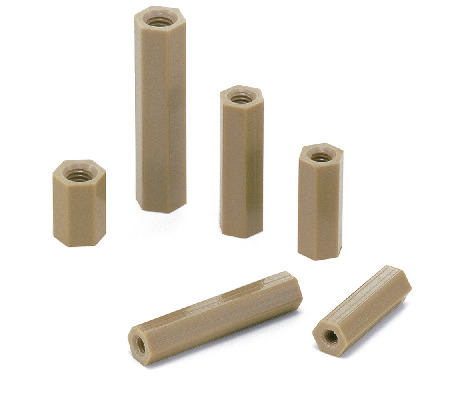

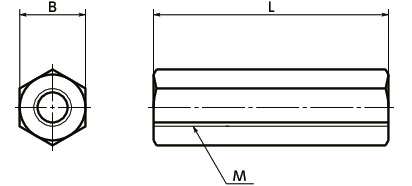

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | B | L1 | L2 | Qty per Pack | Mass (g) |
Price (USD) |
CAD Download |
Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPE-M3-4-HB | M3 | 0.5 | 4 | 6 | 6 | 6 | 5 | 0.14 | 19.68 | CAD | Cart |
| SPE-M3-5-HB | M3 | 0.5 | 5 | 6 | 6 | 6 | 5 | 0.17 | 20.45 | CAD | Cart |
| SPE-M3-6-HB | M3 | 0.5 | 6 | 6 | 6 | 6 | 5 | 0.2 | 21.10 | CAD | Cart |
| SPE-M3-8-HB | M3 | 0.5 | 8 | 6 | 6 | 6 | 5 | 0.27 | 23.00 | CAD | Cart |
| SPE-M3-10-HB | M3 | 0.5 | 10 | 6 | 6 | 6 | 5 | 0.34 | 24.23 | CAD | Cart |
| SPE-M3-12-HB | M3 | 0.5 | 12 | 6 | 6 | 6 | 5 | 0.41 | 25.49 | CAD | Cart |
| SPE-M4-5-HB | M4 | 0.7 | 5 | 7 | 8 | 8 | 5 | 0.22 | 23.00 | CAD | Cart |
| SPE-M4-6-HB | M4 | 0.7 | 6 | 7 | 8 | 8 | 5 | 0.26 | 24.23 | CAD | Cart |
| SPE-M4-8-HB | M4 | 0.7 | 8 | 7 | 8 | 8 | 5 | 0.35 | 26.14 | CAD | Cart |
| SPE-M4-10-HB | M4 | 0.7 | 10 | 7 | 8 | 8 | 5 | 0.44 | 28.18 | CAD | Cart |
| SPE-M4-12-HB | M4 | 0.7 | 12 | 7 | 8 | 8 | 5 | 0.53 | 30.52 | CAD | Cart |
| SPE-M4-15-HB | M4 | 0.7 | 15 | 7 | 8 | 8 | 5 | 0.66 | 33.67 | CAD | Cart |
| SPE-M5-6-HB | M5 | 0.8 | 6 | 8 | 10 | 10 | 5 | 0.32 | 25.49 | CAD | Cart |
| SPE-M5-8-HB | M5 | 0.8 | 8 | 8 | 10 | 10 | 5 | 0.42 | 27.37 | CAD | Cart |
| SPE-M5-10-HB | M5 | 0.8 | 10 | 8 | 10 | 10 | 5 | 0.53 | 30.07 | CAD | Cart |
| SPE-M5-12-HB | M5 | 0.8 | 12 | 8 | 10 | 10 | 5 | 0.63 | 32.42 | CAD | Cart |
| SPE-M5-15-HB | M5 | 0.8 | 15 | 8 | 10 | 10 | 5 | 0.79 | 36.34 | CAD | Cart |
| SPE-M5-18-HB | M5 | 0.8 | 18 | 8 | 10 | 10 | 5 | 0.95 | 39.49 | CAD | Cart |
| SPE-M5-20-HB | M5 | 0.8 | 20 | 8 | 10 | 10 | 5 | 1.1 | 42.01 | CAD | Cart |
| SPE-M6-15-HB | M6 | 1 | 15 | 10 | 12 | 12 | 5 | 1.2 | 48.13 | CAD | Cart |
| SPE-M6-18-HB | M6 | 1 | 18 | 10 | 12 | 12 | 5 | 1.4 | 53.31 | CAD | Cart |
| SPE-M6-20-HB | M6 | 1 | 20 | 10 | 12 | 12 | 5 | 1.6 | 57.11 | CAD | Cart |
| SPE-M8-20-HB | M8 | 1.25 | 20 | 13 | 16 | 16 | 5 | 2.6 | 76.29 | CAD | Cart |
| SPE-M8-25-HB | M8 | 1.25 | 25 | 13 | 16 | 16 | 5 | 3.2 | 89.66 | CAD | Cart |
| SPE-M8-30-HB | M8 | 1.25 | 30 | 13 | 16 | 16 | 5 | 3.9 | 102.86 | CAD | Cart |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereRelated Services
Material/Finish
| SPE-HB | |
|---|---|
| Main Body | PEEK (Polyether Ether Ketone) (Light Brown) |
| Heat Resistance Temperature＊1 | 260℃ |
＊1： This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.
Application
FPD production equipment / Semiconductor devices / Printed circuit board etching devices /Metallic surface treatment equipment and facilities / Chemical plants / Transformers / Electrical and electronic equipment / Hot water pumps /
Chemical pumps
Characteristics
- PEEK is a thermoplastic super engineering plastic superior in physical and chemical properties.
- Excellent chemical resistance. It remains almost unaffected by chemicals other than concentrated sulfuric acid, concentrated nitric acid, and concentrated hydrofluoric acid.
- With excellent heat resistance and water resistance, it retains strength at high temperatures.
- It features outstanding resistance to wear, shock, and fatigue.
- It also has high flame retardance which clears the UL 94 V-0 standard.
- The properties and precautions of plastic screws⇒Plastic Screws
