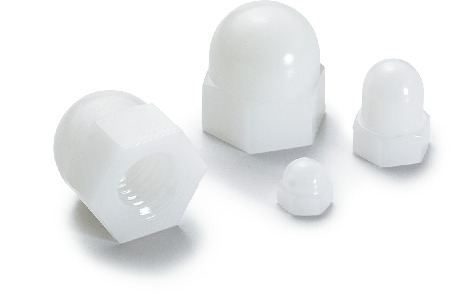

Plastic Screws - Domed Cap Nuts - POM

Dimension Drawing

SPO-CNPlastic Screws - Domed Cap Nuts - POM寸法図



M (Coarse)
Nominal of Thread

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch B T Qty per Pack Mass
CAD Standard
SPO-M3-CN M3 0.5 5.5 5.4 10 0.10 2.23 CAD Cart
SPO-M4-CN M4 0.7 7 6.2 10 0.19 2.39 CAD Cart
SPO-M5-CN M5 0.8 8 11 10 0.39 2.84 CAD Cart
SPO-M6-CN M6 1 10 12 10 0.74 3.32 CAD Cart
SPO-M8-CN M8 1.25 13 15 10 1.9 4.12 CAD Cart

●The minimum order quantity is 1 piece. Use the Sold Separately Service.
●M5/M6/M8 are JIS1, M4 is JIS3, and M3 is an original standard.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services


Main Body POM (Polyacetal)
Heat Resistance Temperature*1 95℃

*1: This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.


General industrial machines / Food industry machines / Medical equipment / Audio equipment / Safety measures


  • It has excellent chemical resistance compared to metal screws.
  • The end face of the screw thread is covered, increasing designability and safety.
  • The properties and precautions of plastic screws⇒Plastic Screws
