SPS-LC

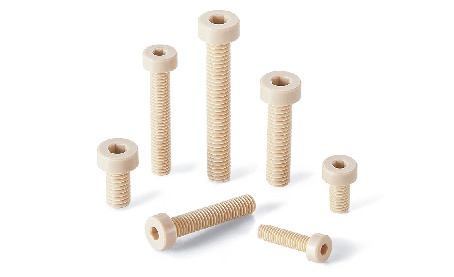

Plastic screw - Hex Socket Low Head Bolt - PPS

  • Heat-resistance
  • Chemical-proof

Dimension Drawing

SPS-LCPlastic screw - Hex Socket Low Head Bolt - PPS寸法図

Specs/CAD

Select

Size(M)
All
3
4
5
6
L
All
6
8
10
12
16
20
25
30
40

Unit : mm

Part Number M L D1 L1 B Tension Rupture Load
(N)*1
Torsional Torque
(N・m)*1
Qty per Pack Mass
(g)
Price
(USD)
CAD Standard
SPS-M3-6-LC 3 6 5.5 2 2 492 0.25 10 0.11 7.07 CAD Cart
SPS-M3-8-LC 3 8 5.5 2 2 492 0.25 10 0.13 7.55 CAD Cart
SPS-M3-10-LC 3 10 5.5 2 2 492 0.25 10 0.15 7.99 CAD Cart
SPS-M3-12-LC 3 12 5.5 2 2 492 0.25 10 0.17 9.98 CAD Cart
SPS-M3-16-LC 3 16 5.5 2 2 492 0.25 10 0.21 11.37 CAD Cart
SPS-M3-20-LC 3 20 5.5 2 2 492 0.25 10 0.25 13.05 CAD Cart
SPS-M4-6-LC 4 6 7 2.8 2.5 789 0.46 10 0.24 7.99 CAD Cart
SPS-M4-8-LC 4 8 7 2.8 2.5 789 0.46 10 0.27 9.06 CAD Cart
SPS-M4-10-LC 4 10 7 2.8 2.5 789 0.46 10 0.31 9.98 CAD Cart
SPS-M4-12-LC 4 12 7 2.8 2.5 789 0.46 10 0.34 11.37 CAD Cart
SPS-M4-16-LC 4 16 7 2.8 2.5 789 0.46 10 0.40 13.05 CAD Cart
SPS-M4-20-LC 4 20 7 2.8 2.5 789 0.46 10 0.49 14.28 CAD Cart
SPS-M4-25-LC 4 25 7 2.8 2.5 789 0.46 10 0.59 16.28 CAD Cart
SPS-M5-8-LC 5 8 8.5 3.5 3 1190 1.04 10 0.38 14.28 CAD Cart
SPS-M5-10-LC 5 10 8.5 3.5 3 1190 1.04 10 0.43 14.28 CAD Cart
SPS-M5-12-LC 5 12 8.5 3.5 3 1190 1.04 10 0.49 15.81 CAD Cart
SPS-M5-16-LC 5 16 8.5 3.5 3 1190 1.04 10 0.59 19.66 CAD Cart
SPS-M5-20-LC 5 20 8.5 3.5 3 1190 1.04 10 0.71 23.03 CAD Cart
SPS-M5-25-LC 5 25 8.5 3.5 3 1190 1.04 10 0.88 30.70 CAD Cart
SPS-M5-30-LC 5 30 8.5 3.5 3 1190 1.04 10 1.0 37.93 CAD Cart
SPS-M6-10-LC 6 10 10 4 4 1811 1.70 5 0.74 12.43 CAD Cart
SPS-M6-12-LC 6 12 10 4 4 1811 1.70 5 0.82 15.67 CAD Cart
SPS-M6-16-LC 6 16 10 4 4 1811 1.70 5 0.96 15.67 CAD Cart
SPS-M6-20-LC 6 20 10 4 4 1811 1.70 5 1.1 19.19 CAD Cart
SPS-M6-25-LC 6 25 10 4 4 1811 1.70 5 1.4 23.48 CAD Cart
SPS-M6-30-LC 6 30 10 4 4 1811 1.70 5 1.5 29.32 CAD Cart
SPS-M6-40-LC 6 40 10 4 4 1811 1.70 5 2.1 35.15 CAD Cart

*1: The values in the table are reference values and are not guaranteed values. The recommended tightening torque is 50% of the twisting rupture torque.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Related Services

Material/Finish

SPS-LC
Main body PPS
(Poly Phenylene Sulfide) (Bright Light Brown)
(Glass fiber 40%)
Heat resistance
temperature*1
200℃

*1: A value of plastic materials. The allowable operating temperature of the product varies depending on use conditions such as tightening torque.


Application

FPD production device / Semiconductor manufacturing device /
Print board etching equipment / Metal surface treatment facility /
Chemical plant / Transformer / Electric and electronic device /
Hydrothermal pump / Chemical pump

Characteristics

  • Hex socket head cap screw with low head.
  • For space-saving of equipment/device and applications with a limited top space.
  • PPS is excellent in heat resistance and chemical resistance and continuously used at 200°C. No fat or organic solvent cannot dissolve PPS at 200℃ or below.
  • High strength, high rigidity and high temperature strength is retained.
  • It is highly frame-resistant satisfying V-0 of the UL standard 94.
  • Plastic screw properties and precautions for use ⇒Plastic Screws
