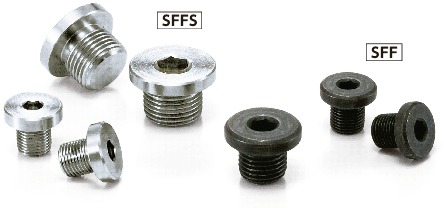

Hex Socket Flange Head Screw Plugs - Steel

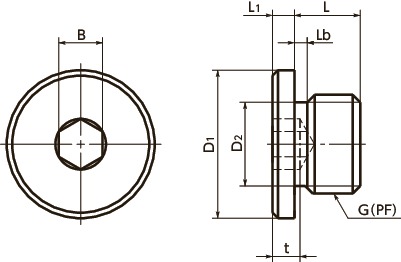

Dimension Drawing

SFFHex Socket Flange Head Screw Plugs寸法図

Specs/CAD

Unit : mm

Part Number G(PF) Normal of Thread L D1 L1 D2 B t Lb O-ring No. Recommended Torque
(N・m)
Qty per Pack Mass
(g)
Price
(USD)
CAD
Download
Standard
SFF-8 G1 21 45 5 29.2 17 10 3.5 P29 245 1 177 29.15 CAD Cart

Related Services

Material/Finish

SFF
Main Body SCM435(Hardness 32-42 HRC)
Ferrosoferric Oxide Coating(Black)

Application

Hydraulic equipment, pneumatic machinery and equipment, and

Characteristics

  • Screw plugs for high-power hydraulic applications.
  • SFF is made of steel and can be used in highpressure applications up to 49 MPa.

Usage Example

SFFHex Socket Flange Head Screw Plugs


Mounting Dimensions

Unit : mm

G (PF) D h
G 1/8 11.6 2
G 1/4 15.6 2.5
G 3/8 18.6 2.5
G 1/2 22.6 2.5
G 3/4 29.8 3.5
G1 35.8 3.5

SFFHex Socket Flange Head Screw Plugs
