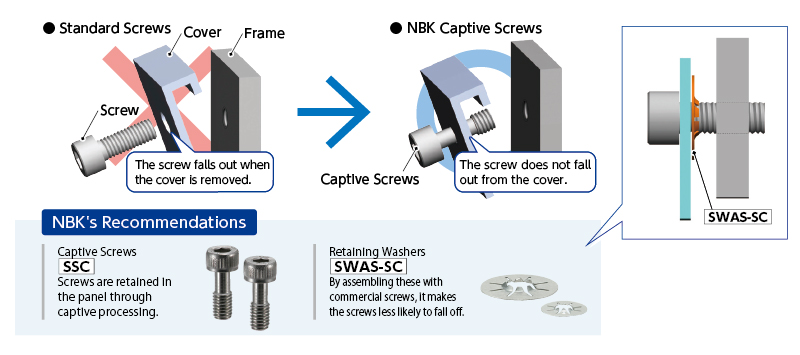

Loss Prevention

Part Name	Hex Socket Head Cap Screws with Captive Washer and Ventilation Hole	Socket Head Cap Captive Screws	Socket Head Cap Captive Screws (Inch Screws)	Pan head captive machine screws for precision instruments (miniature screws)	Socket Head Cap Captive Screws with Low Profile	Socket Head Cap Captive Screws with Special Low Profile	Cross Recessed Pan Head Captive Machine Screws	Cross Recessed Truss Head Captive Screws
Part Number	SVSQS	SSC	SSC(INCH)	SSCZS	SSCLS	SSCHS	SSCPS	SSCMS
Feature	Built-in Washers	Standard	Inch Thread	Pan Head Machine Screws for Precision Instruments	Low Profile Cap Screws	Special Low ProfileCap Screws	Pan Head MachineScrews	Truss Head Screws
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	-	-	-	-	-	-	-
Thread Size	M3 ～ M12	M3 ～ M8	No.4-40UNC ～ 1/4-20UNC	M1.4 ～ M2.6	M3 ～ M8	M3 ～ M8	M3 ～ M8	M3 ～ M8
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSQS-M10 SVSQS-M12 SVSQS-M3 SVSQS-M4 SVSQS-M5 SVSQS-M6 SVSQS-M8	SSC-M3 SSC-M4 SSC-M5 SSC-M6 SSC-M8	SSC-#10-32 SSC-#4-40 SSC-#6-32 SSC-#8-32 SSC-1/4-20	SSCZS-M1.4 SSCZS-M1.6 SSCZS-M1.7 SSCZS-M2 SSCZS-M2.5 SSCZS-M2.6	SSCLS-M3 SSCLS-M4 SSCLS-M5 SSCLS-M6 SSCLS-M8	SSCHS-M3 SSCHS-M4 SSCHS-M5 SSCHS-M6 SSCHS-M8	SSCPS-M3 SSCPS-M4 SSCPS-M5 SSCPS-M6 SSCPS-M8	SSCMS-M3 SSCMS-M4 SSCMS-M5 SSCMS-M6 SSCMS-M8
