  • Special Screws
  • Security screws, Tamper Resistant Screws

Button Head Cap Screws with Hexalobular Socket and Pin

SRBS

Safety Precautions

RoHS Compliant

  • Tamper Resistance
SRBSButton Head Cap Screws with Hexalobular Socket and Pin

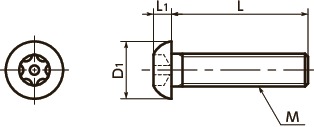

Dimension Drawing

SRBSButton Head Cap Screws with Hexalobular Socket and Pin寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
L
All
6
8
10
12
15
16
20
25
30
35
40
50

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 Applicable Wrench Type Applicable Bit Type Hexalobular
Socket
No.		 Qty per Pack Mass
(g)		 Price
(USD)		 CAD
Download		 QTY
(Pack)
Bit Driver
SRBS-M3-6 M3 0.5 6 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.48 9.50 CAD Cart
SRBS-M3-8 M3 0.5 8 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.57 9.50 CAD Cart
SRBS-M3-10 M3 0.5 10 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.65 9.80 CAD Cart
SRBS-M3-12 M3 0.5 12 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.73 10.01 CAD Cart
SRBS-M3-15 M3 0.5 15 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.88 56.92 CAD Cart
SRBS-M3-16 M3 0.5 16 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 0.93 10.60 CAD Cart
SRBS-M3-20 M3 0.5 20 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 1.1 11.87 CAD Cart
SRBS-M3-25 M3 0.5 25 5.7 1.65 SRX-10 SRXB-10 SRD-6.35 10 20 1.4 13.35 CAD Cart
SRBS-M4-6 M4 0.7 6 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.1 15.45 CAD Cart
SRBS-M4-8 M4 0.7 8 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.2 9.50 CAD Cart
SRBS-M4-10 M4 0.7 10 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.4 9.80 CAD Cart
SRBS-M4-12 M4 0.7 12 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.5 10.01 CAD Cart
SRBS-M4-15 M4 0.7 15 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.8 56.11 CAD Cart
SRBS-M4-16 M4 0.7 16 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 1.8 10.60 CAD Cart
SRBS-M4-20 M4 0.7 20 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 2.2 11.39 CAD Cart
SRBS-M4-25 M4 0.7 25 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 2.7 13.21 CAD Cart
SRBS-M4-30 M4 0.7 30 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 20 3.2 14.00 CAD Cart
SRBS-M4-35 M4 0.7 35 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 1 3.7 8.81 CAD Cart
SRBS-M4-40 M4 0.7 40 7.6 2.2 SRX-20 SRXB-20 SRD-6.35 20 1 4.2 8.81 CAD Cart
SRBS-M5-8 M5 0.8 8 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 1.8 22.23 CAD Cart
SRBS-M5-10 M5 0.8 10 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 2 12.17 CAD Cart
SRBS-M5-12 M5 0.8 12 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 2.3 13.21 CAD Cart
SRBS-M5-15 M5 0.8 15 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 2.7 59.09 CAD Cart
SRBS-M5-16 M5 0.8 16 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 2.8 14.00 CAD Cart
SRBS-M5-20 M5 0.8 20 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 3.3 15.27 CAD Cart
SRBS-M5-25 M5 0.8 25 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 4.1 16.04 CAD Cart
SRBS-M5-30 M5 0.8 30 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 4.9 18.79 CAD Cart
SRBS-M5-40 M5 0.8 40 9.5 2.75 SRX-25 SRXB-25 SRD-6.35 25 20 6.4 21.86 CAD Cart
SRBS-M6-8 M6 1 8 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 3 13.42 CAD Cart
SRBS-M6-10 M6 1 10 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 3.3 7.52 CAD Cart
SRBS-M6-12 M6 1 12 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 3.6 7.52 CAD Cart
SRBS-M6-15 M6 1 15 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 4.1 31.04 CAD Cart
SRBS-M6-16 M6 1 16 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 4.3 8.32 CAD Cart
SRBS-M6-20 M6 1 20 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 5.1 8.99 CAD Cart
SRBS-M6-25 M6 1 25 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 6.1 9.90 CAD Cart
SRBS-M6-30 M6 1 30 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 6.9 10.86 CAD Cart
SRBS-M6-40 M6 1 40 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 9.6 12.59 CAD Cart
SRBS-M6-50 M6 1 50 10.5 3.3 SRX-30 SRXB-30 SRD-6.35 30 10 12 15.77 CAD Cart
SRBS-M8-10 M8 1.25 10 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 7.3 13.90 CAD Cart
SRBS-M8-12 M8 1.25 12 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 7.9 13.90 CAD Cart
SRBS-M8-16 M8 1.25 16 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 9.1 13.90 CAD Cart
SRBS-M8-20 M8 1.25 20 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 10 15.45 CAD Cart
SRBS-M8-25 M8 1.25 25 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 12 17.33 CAD Cart
SRBS-M8-30 M8 1.25 30 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 14 19.11 CAD Cart
SRBS-M8-40 M8 1.25 40 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 18 21.26 CAD Cart
SRBS-M8-50 M8 1.25 50 14 4.4 SRX-40 SRXB-40 SRD-6.35 40 10 22 26.06 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here
Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Related Services

Material/Finish

SRBS
Main Body Equivalent to SUS304
Strength Class Equivalent to A2-50

Application

Equipment/devices disassembly/tampering prevention
Theft prevention for outdoor facilities
Security measures
Safety measures

Characteristics

  • Button head cap screws with a pin at the center of the hexalobular socket ＊1.
  • This prevents mounting and removing with regular tools.
  • Install and remove with SRX Dedicated Wrench or SRXB Dedicated Bit and SRD Dedicated Magnetic Screwdriver together.

＊1：　The hexalobular shape is prescribed by JIS B 1015: 2008(ISO 10664: 2005)"Hexalobular internal driving feature for bolts and screws".
