01When using EPU-210
* Swipe to scroll.
System Configuration
Here we introduce positioning systems using Auto-Positioning Units and their software.
System Configuration

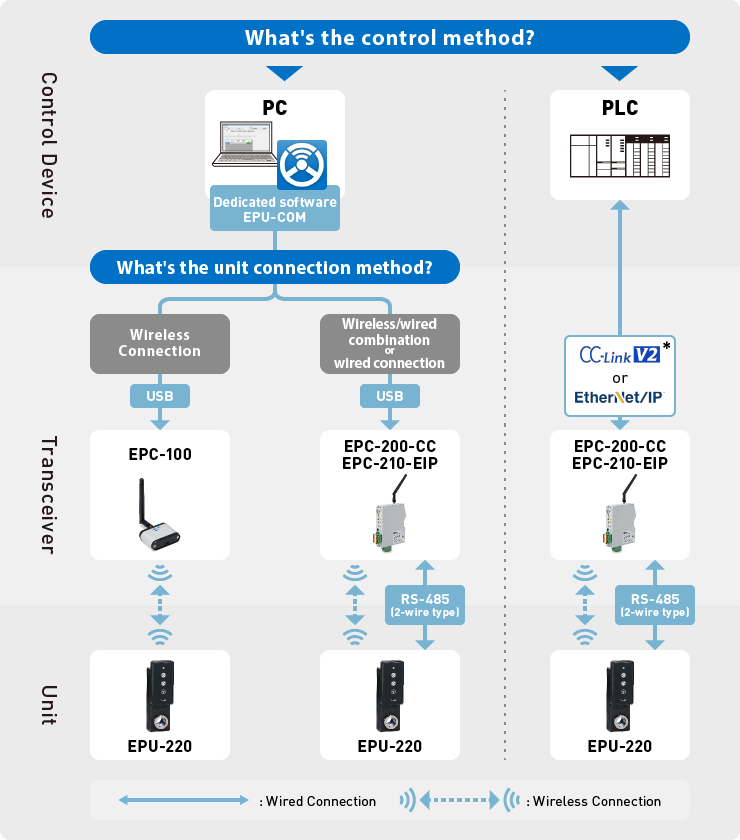

02When using EPU-220
* Swipe to scroll.
* Only initial setting uses EPU-COM with a PC.
The EPC-200-CC transceiver can be connected with a PLC through CC-Link.
The EPC-210-EIP transceiver can be connected with a PLC through EtherNet/IP™.

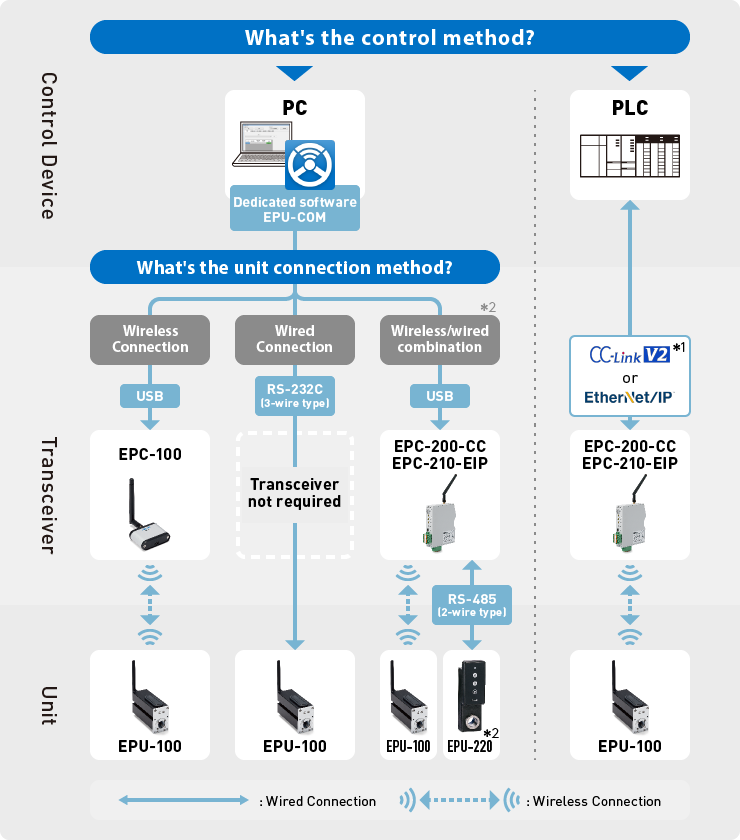

03When using EPU-100
* Swipe to scroll.
*1: Only initial setting uses EPU-COM with a PC.
The EPC-200-CC transceiver can be connected with a PLC through CC-Link.
The EPC-210-EIP transceiver can be connected with a PLC through EtherNet/IP™.
*2: When using wireless connection EPU-100 and wired connection EPU-220 together, the transceiver is either EPC-200-CC or EPC-210-EIP.
Software
MOD-COM and EPU-COM, dedicated software for Auto-Positioning Units, are available free of charge.
The software can be downloaded here.
Are you in need of more information on device configuration and connection methods?
Data on product configuration
Configuration for each product is introduced in detail.
Contact
Please feel free to consult with us regarding the selection and connection of units and transceivers, or anything else on your mind.
