Using the Clamp Lever / Tension Lever

Using the Clamp Lever / Tension Lever

Clamp Lever
Miniature Clamp Lever		 Clamp Lever
(Double Arm Type)		 Tension Lever
❶Pull up the lever.
   The built-in spring will be
   compressed and the engaged
   serrations will be disengaged.		 Lever Lever Lever
❷Next, turn the freed lever
   to the desired position.		 Lever Lever Lever
❸Release the lever to retract it
   with the spring force, re-engage the
   serrations, and lock it.		 Lever Lever Lever

Definitions of Max. Load and Max. Tightening Force

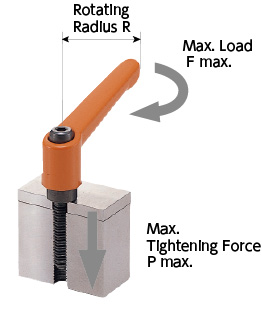

● Clamp Lever
   Miniature Clamp Lever

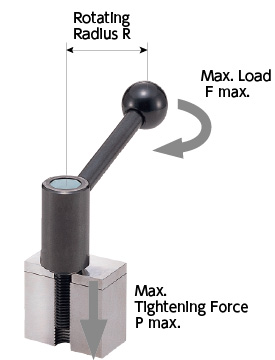

● Clamp Lever
   （Double Arm Type)

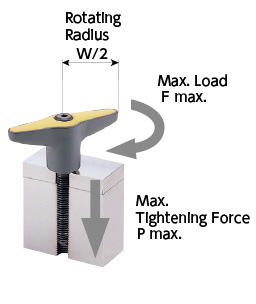

● Tension Lever

Only takes a minute to understand! How to Use Clamp Levers.
