HAK

Aluminum Knurled Handwheel

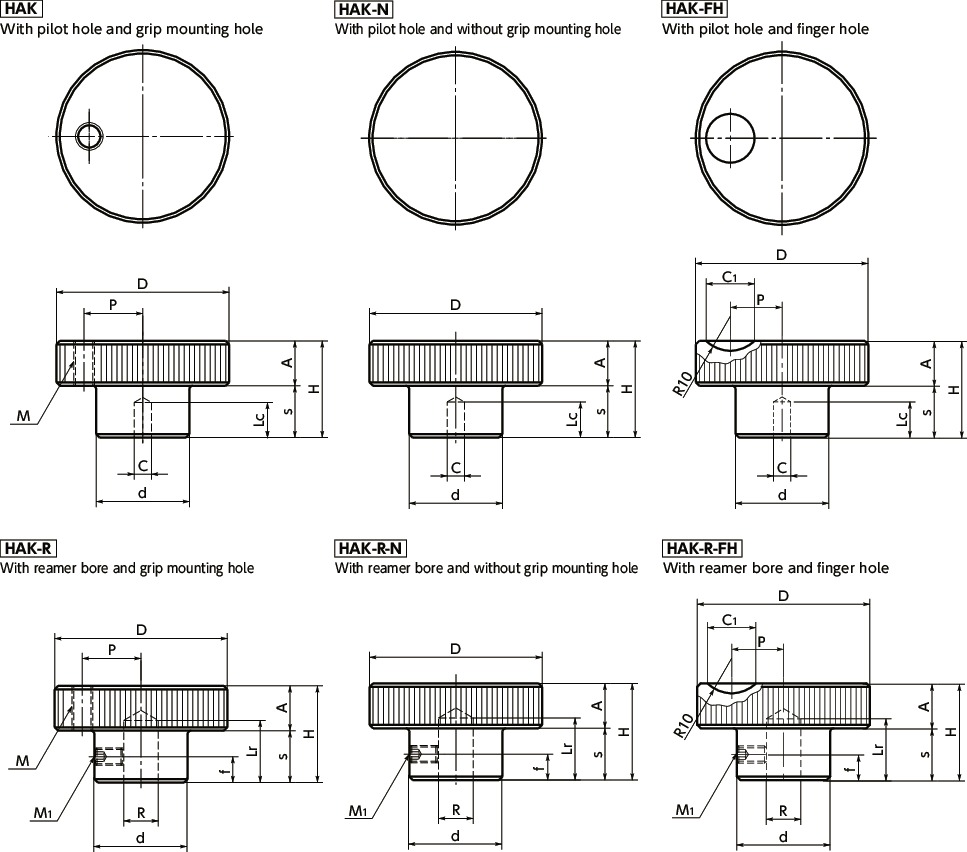

Dimension Drawing

HAKAluminum Knurled Handwheel寸法図

Specs/CAD

Select

Color
All
SG
BK

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch D H A s d C Lc P Mass
(g)
Color Price
(USD)
CAD Add to Cart
HAK-40-SG M6 1 40 25 12 13 22 5 15 14.5 50 SG 14.49 CAD Cart
HAK-40 M6 1 40 25 12 13 22 5 15 14.5 50 BK 14.49 CAD Cart
HAK-50-SG M6 1 50 28 13 15 27 5 15 17 87 SG 19.84 CAD Cart
HAK-50 M6 1 50 28 13 15 27 5 15 17 87 BK 19.84 CAD Cart
HAK-63-SG M6 1 63 32 14 18 35 5 15 23 161 SG 29.60 CAD Cart
HAK-63 M6 1 63 32 14 18 35 5 15 23 161 BK 29.60 CAD Cart
HAK-80-SG M6 1 80 40 15 25 45 5 15 30 299 SG 44.23 CAD Cart
HAK-80 M6 1 80 40 15 25 45 5 15 30 299 BK 44.23 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

HAK
Main body A5056
Alumite Treatment (Various Color)

Characteristics

  • Mini handwheel made of aluminum alloy
  • Bore type and with / without grip mounting hole and finger hole can be selected by a product code.
Product Code Bore Type Grip Mounting Hole Finger Hole
HAK Pilot Hole Yes No
HAK-N Pilot Hole No No
HAK-FH Pilot Hole No Yes
HAK-R Reamer Bore Yes No
HAK-R-N Reamer Bore No No
HAK-R-FH Reamer Bore No Yes
  • There are two color variations. They can be selected by the end symbol of the part number.
    No end symbol----Black
    End Symbol SG----Silver gray
  • There is no grip supplied with this product. Order a grip separately. ⇒Grips
