• Grips

GGB

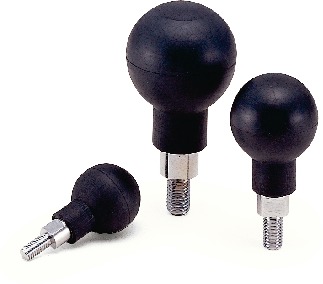

Rubber Ball Revolving Grip

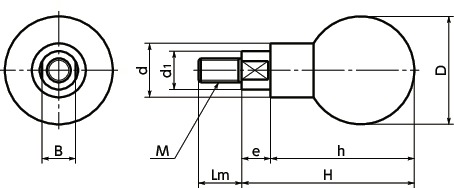

Dimension Drawing

GGBRubber Ball Revolving Grip寸法図

Specs/CAD

Unit : mm

Part Number D M (Coarse)
Nominal of Thread
Pitch Lm d d1 H h e B Mass
(g)
Price
(USD)
CAD
Download
Add to Cart
GGB-6 28 M6 1 13 14 10 45.5 37.5 8 8 25 11.82 CAD Cart
GGB-8 35.5 M8 1.25 15 17.8 13 56.5 47.5 9 10 40 14.18 CAD Cart
GGB-10 45 M10 1.5 18 22.5 16 72 60 12 14 85 17.95 CAD Cart

Material/Finish

GGB
Grip Part EPDM (Matte Black)
Thread Part SUM22L
Chrome Plating

Related Products

KGB
Rubber ball-shaped knob is available.
KGB

GGBRubber Ball Revolving Grip
