Stages

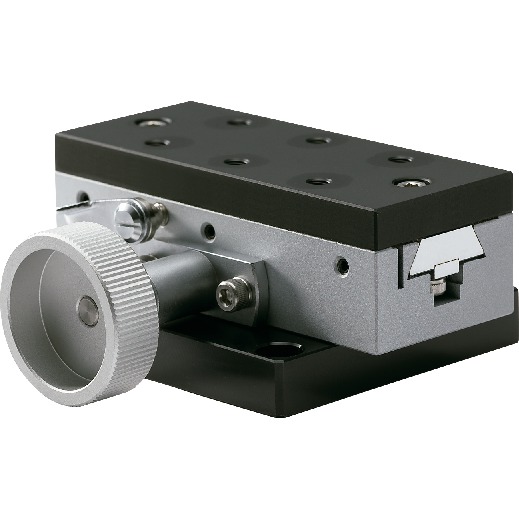

Image | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|---|---|---|---|---|
Part Name | Miniature X-axis Rack-and-Pinion Stages | Miniature X / Y-axis Rack-and-Pinion Stages | Miniature Z-axis Rack-and-Pinion Stages | X-axis Rack-and-Pinion Stages | Miniature X-axis Rack-and-Pinion Stages | Precision X-axis Rack-and-Pinion Stages | Precision Rotary Stages | Precision Rotary Stages | X-axis Screw Stages |
Part Number | TAR-X | TAR-XY | TAR-Z | TAR | TAR-25 | TAR-D | TKSP | TAKS | TAS |
Feature | X-axis | X-axis Y-axis |
Z-axis | X-axis | X-axis | X-axis | Rotation | Rotation | X-axis |
stage | 25×50 | 25×50 | 25×50 | 34×60 | 25×30 | 38×60 | φ60 | φ98 | 24×30 |
move | ±10 | ±10 | ±10 | ±15 | ±25 | - | - | - | ±4 |
CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
List | TAR-2550X | TAR-2550XY | TAR-2550Z | TAR-60 TAR-80 | TAR-25121 TAR-25161 TAR-2581 | TAR-60D TAR-80D | TKSP-60 | TAKS-100 | TAS-30 TAS-60 |
Image | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
---|---|---|---|---|---|---|---|---|---|
Part Name | XY-axis Screw Stages | Miniature X-axis Block Stages | Miniature XY-axis Block Stages | X-axis Aluminum Cross Roller Stages | XY-axis Aluminum Cross Roller Stages | X-axis Tilting Stages | Jackscrew | ||
Part Number | TAS-XY | TAS-1 | TAS-2 | TAM-S | TAM-SXY | TGOH | TLJK | ||
Feature | X-axis Y-axis |
X-axis | X-axis Y-axis |
X-axis High Precision |
X-axis Y-axis High Precision |
X-axis | Z-axis Suitable for Heavy Load |
||
stage | 24×30 | 25×25 | 25×25 | 40×40 | 40×40 | 25×25 | 80×132 | ||
move | ±4 | ±3 | ±3 | ±6.5 | ±6.5 | ±20° | 22 | ||
CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | ||
Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | ||
List | TAS-30XY TAS-60XY | TAS-251 TAS-401 | TAS-252 TAS-402 | TAM-100S TAM-120S TAM-40S TAM-60S | TAM-100SXY TAM-120SXY TAM-40SXY TAM-60SXY | TGOH-251 TGOH-6 TGOHN-3 | TLJK-1 TLJK-2 TLJK-3 |
