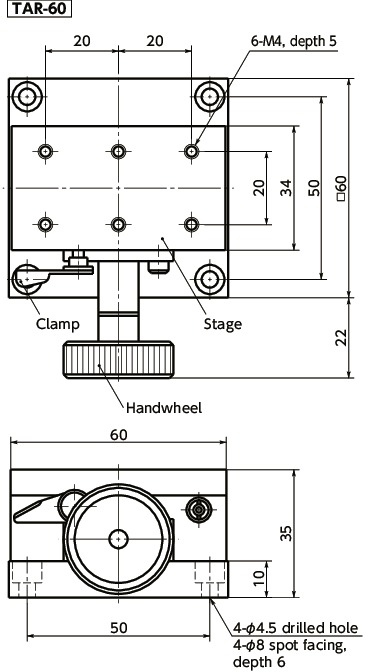

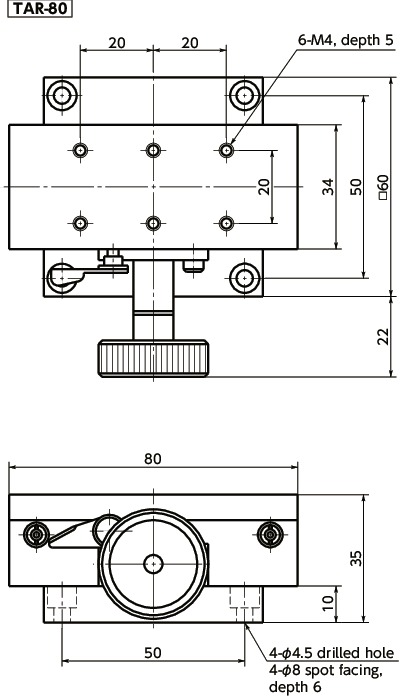

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | Stage Face | Travel Guide | Travel Distance | Stroke (mm / Rotation) |
Mass (g) |
Straightness | Parallelism | Display Resolution | Position Resolution | Withstand Load (N) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAR-60 | 34×60 | Dovetail Groove Method | ±15 | 20 | 500 | 0.02 | 0.06 | 0.1 | 0.1 | 147 | 481.33 | CAD | Cart |

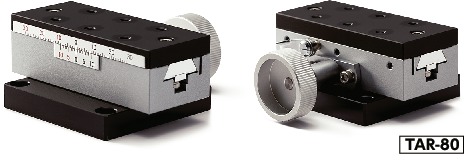

| TAR-80 | 34×80 | Dovetail Groove Method | ±25 | 20 | 800 | 0.03 | 0.06 | 0.1 | 0.1 | 196 | 550.95 | CAD | Cart |
Material/Finish
| TAR | |
|---|---|
| Stage | Brass Black chrome plating |
| Main Body | Brass Coating (Silver) |
| Lower surface spacer | Aluminum Alloy Anodized (Black) |
Characteristics
- Rack-and-pinion method allows for quicker feeding.
- Dovetail groove method is adopted for the travel guide.A rattle correction function is provided.
