PH

Plastic Handwheel

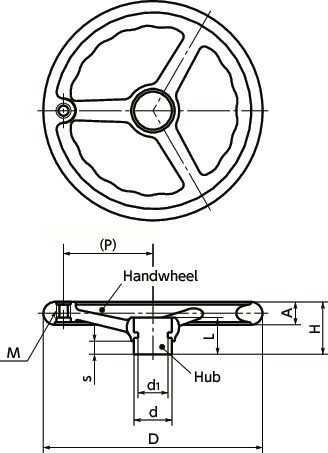

Dimension Drawing

PHPlastic Handwheel寸法図

Specs/CAD

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch D H A s d d1 L P Mass
(g)
Number of spokes Price
(USD)
CAD Add to Cart
PH-80 M5 0.8 80 40 14 10 24 18 26 29 130 3 10.60 CAD Cart
PH-100 M5 0.8 100 44 15 10 28 22 29 40 200 3 12.29 CAD Cart
PH-125 M6 1 125 48 16 10 32 26 30 51 280 3 15.36 CAD Cart
PH-140 M6 1 140 54 17 10 34 26 35 58 400 3 19.35 CAD Cart
PH-160 M8 1.25 160 57 18 10 36 28 36 67 440 3 28.08 CAD Cart
PH-200 M10 1.5 200 64 22 12 38 30 42 84 670 3 37.45 CAD Cart
PH-250 M10 1.5 250 66 26 15 44 36 42 102 980 5 54.94 CAD Cart

Material/Finish

PH Cast Iron Hub
Handwheel Part Nylon 6 (Black)
Hub Part FC200
Ferrosoferric Oxide Film (Black)
Grip Mounting Hole
Insert
Steel
Trivalent Chromate Treatment

Characteristics

  • Standard model with a plastic handwheel.
  • There are two types of hub materials.
    PH----Cast Iron Hub
    PHS----Stainless Steel Hub
  • With grip mounting hole.
  • There is no grip supplied with this product. Order a grip separately. ⇒Grips

Recommended applicable grip

Part Number
Cast Iron Hub
Recommended applicable grip Part Number
Stainless Steel Hub
Recommended applicable grip
GTR GTR GTM GTM GTMS GTF GTFS GNTRS GNTR GNTRS GTMS GTM GTMS GTF GTFS
PH-80 GTR-18-M5 GTM-18-M5 PHS-80 GNTRS-18-M5 GTMS-18-M5
PH-100 GTR-18-M5 GTM-18-M5 PHS-100 GNTRS-18-M5 GTMS-18-M5
PH-125 GTR-19-M6 GTM-19-M6 PHS-125 GNTRS-19-M6 GTMS-19-M6
PH-140 GTR-19-M6 GTM-19-M6 PHS-140 GNTRS-19-M6 GTMS-19-M6
PH-160 GTR-24-M8 GTM-24-M8 PHS-160 GNTRS-24-M8 GTMS-24-M8
PH-200 GTR-28-M10 GTM-28-M10 PHS-200 GNTRS-28-M10 GTMS-28-M10
PH-250 GTR-28-M10 GTM-28-M10 PHS-250 GNTRS-28-M10 GTMS-28-M10
