Hints for Correctly Using NBK Products
The video is an example using KDMS-SC(KDMS-SC). You can perform the same operation using this product.

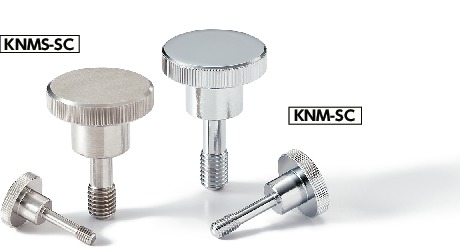

- Captive type knurled knob. Prevents fall-off and loss of the knob.
- Foreign matter entry countermeasures and CE marking support (⇒Captive Series).
- Made of SUS304. For applications including food processing machinery, packaging machinery, etc., where corrosion resistance is called for.
- A wide variety of screw sizes from M3 to M10.

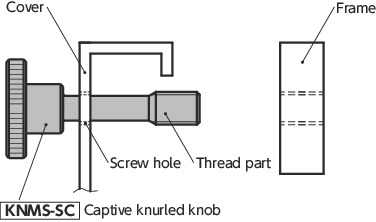

Precautions for UseScrew hole inner diameter on the cover side shall be at least d1.
The cover thickness should be 0.8mm or above.
Related ProductsSteel KNM-SC with the same shape is available.
