• Clamp Levers

LEM-W

Plastic Clamp Levers - Spring Washer Integrated Type

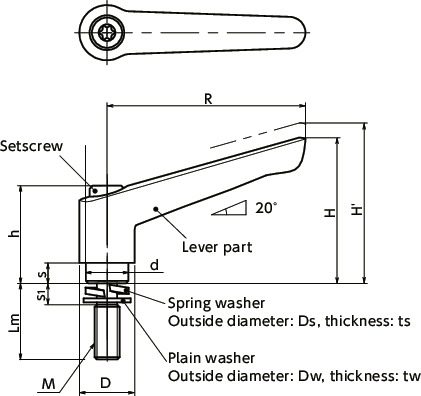

Dimension Drawing

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type寸法図

Specs/CAD

Select

M (Coarse)
All
M5
M6
M8
M10
Lm
All
12
16
20
25
32
40
50
63
80
Body
Color
All
BK
OR
SG

Unit : mm

Part Number M (Coarse) Lm R H H' h s D d Ds ts Dw tw s1 B*1 Tooth No. Max. Load Max. Clamping Force Mass
(g)
Body
Color
Price
(USD)
CAD Add to Cart
LEM-5-12-W-BK M5 12 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 19 BK 8.76 CAD Cart
LEM-5-12-W-OR M5 12 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 19 OR 8.76 CAD Cart
LEM-5-12-W-SG M5 12 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 19 SG 8.76 CAD Cart
LEM-5-16-W-BK M5 16 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 BK 8.76 CAD Cart
LEM-5-16-W-OR M5 16 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 OR 8.76 CAD Cart
LEM-5-16-W-SG M5 16 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 SG 8.76 CAD Cart
LEM-5-20-W-BK M5 20 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 BK 8.76 CAD Cart
LEM-5-20-W-OR M5 20 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 OR 8.76 CAD Cart
LEM-5-20-W-SG M5 20 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 20 SG 8.76 CAD Cart
LEM-5-25-W-BK M5 25 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 BK 8.76 CAD Cart
LEM-5-25-W-OR M5 25 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 OR 8.76 CAD Cart
LEM-5-25-W-SG M5 25 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 SG 8.76 CAD Cart
LEM-5-32-W-BK M5 32 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 BK 8.76 CAD Cart
LEM-5-32-W-OR M5 32 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 OR 8.76 CAD Cart
LEM-5-32-W-SG M5 32 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 21 SG 8.76 CAD Cart
LEM-5-40-W-BK M5 40 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 22 BK 8.76 CAD Cart
LEM-5-40-W-OR M5 40 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 22 OR 8.76 CAD Cart
LEM-5-40-W-SG M5 40 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 22 SG 8.76 CAD Cart
LEM-5-50-W-BK M5 50 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 24 BK 9.52 CAD Cart
LEM-5-50-W-OR M5 50 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 24 OR 9.52 CAD Cart
LEM-5-50-W-SG M5 50 45 35.5 39 24.5 4.2 13 10 9.2 1.3 10 0.5 4 5.5 18 42 2.7 24 SG 9.52 CAD Cart
LEM-6-12-W-BK M6 12 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 BK 8.76 CAD Cart
LEM-6-12-W-OR M6 12 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 OR 8.76 CAD Cart
LEM-6-12-W-SG M6 12 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 SG 8.76 CAD Cart
LEM-6-16-W-BK M6 16 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 BK 8.76 CAD Cart
LEM-6-16-W-OR M6 16 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 OR 8.76 CAD Cart
LEM-6-16-W-SG M6 16 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 20 SG 8.76 CAD Cart
LEM-6-20-W-BK M6 20 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 21 BK 8.76 CAD Cart
LEM-6-20-W-OR M6 20 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 21 OR 8.76 CAD Cart
LEM-6-20-W-SG M6 20 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 21 SG 8.76 CAD Cart
LEM-6-25-W-BK M6 25 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 22 BK 8.76 CAD Cart
LEM-6-25-W-OR M6 25 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 22 OR 8.76 CAD Cart
LEM-6-25-W-SG M6 25 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 22 SG 8.76 CAD Cart
LEM-6-32-W-BK M6 32 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 23 BK 8.76 CAD Cart
LEM-6-32-W-OR M6 32 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 23 OR 8.76 CAD Cart
LEM-6-32-W-SG M6 32 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 23 SG 8.76 CAD Cart
LEM-6-40-W-BK M6 40 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 24 BK 8.76 CAD Cart
LEM-6-40-W-OR M6 40 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 24 OR 8.76 CAD Cart
LEM-6-40-W-SG M6 40 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 24 SG 8.76 CAD Cart
LEM-6-50-W-BK M6 50 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 26 BK 9.52 CAD Cart
LEM-6-50-W-OR M6 50 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 26 OR 9.52 CAD Cart
LEM-6-50-W-SG M6 50 45 35.5 39 24.5 4.2 13 10 12.2 1.5 12 0.6 5 6.6 18 70 3.8 26 SG 9.52 CAD Cart
LEM-8-12-W-BK M8 12 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 40 BK 10.12 CAD Cart
LEM-8-12-W-OR M8 12 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 40 OR 10.12 CAD Cart
LEM-8-12-W-SG M8 12 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 40 SG 10.12 CAD Cart
LEM-8-16-W-BK M8 16 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 42 BK 10.12 CAD Cart
LEM-8-16-W-OR M8 16 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 42 OR 10.12 CAD Cart
LEM-8-16-W-SG M8 16 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 42 SG 10.12 CAD Cart
LEM-8-20-W-BK M8 20 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 43 BK 10.12 CAD Cart
LEM-8-20-W-OR M8 20 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 43 OR 10.12 CAD Cart
LEM-8-20-W-SG M8 20 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 43 SG 10.12 CAD Cart
LEM-8-25-W-BK M8 25 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 45 BK 10.12 CAD Cart
LEM-8-25-W-OR M8 25 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 45 OR 10.12 CAD Cart
LEM-8-25-W-SG M8 25 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 45 SG 10.12 CAD Cart
LEM-8-32-W-BK M8 32 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 47 BK 10.12 CAD Cart
LEM-8-32-W-OR M8 32 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 47 OR 10.12 CAD Cart
LEM-8-32-W-SG M8 32 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 47 SG 10.12 CAD Cart
LEM-8-40-W-BK M8 40 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 49 BK 10.12 CAD Cart
LEM-8-40-W-OR M8 40 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 49 OR 10.12 CAD Cart
LEM-8-40-W-SG M8 40 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 49 SG 10.12 CAD Cart
LEM-8-50-W-BK M8 50 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 52 BK 10.12 CAD Cart
LEM-8-50-W-OR M8 50 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 52 OR 10.12 CAD Cart
LEM-8-50-W-SG M8 50 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 52 SG 10.12 CAD Cart
LEM-8-63-W-BK M8 63 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 56 BK 11.35 CAD Cart
LEM-8-63-W-OR M8 63 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 56 OR 11.35 CAD Cart
LEM-8-63-W-SG M8 63 63 46.3 50.3 31 6.5 17.5 13.5 15.4 2 16 0.8 6 9 24 120 7 56 OR 11.35 CAD Cart
LEM-10-16-W-BK M10 16 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 69 BK 12.43 CAD Cart
LEM-10-16-W-OR M10 16 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 69 OR 12.43 CAD Cart
LEM-10-16-W-SG M10 16 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 69 SG 12.43 CAD Cart
LEM-10-20-W-BK M10 20 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 71 BK 12.43 CAD Cart
LEM-10-20-W-OR M10 20 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 71 OR 12.43 CAD Cart
LEM-10-20-W-SG M10 20 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 71 SG 12.43 CAD Cart
LEM-10-25-W-BK M10 25 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 74 BK 12.43 CAD Cart
LEM-10-25-W-OR M10 25 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 74 OR 12.43 CAD Cart
LEM-10-25-W-SG M10 25 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 74 SG 12.43 CAD Cart
LEM-10-32-W-BK M10 32 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 77 BK 12.89 CAD Cart
LEM-10-32-W-OR M10 32 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 77 OR 12.89 CAD Cart
LEM-10-32-W-SG M10 32 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 77 SG 12.89 CAD Cart
LEM-10-40-W-BK M10 40 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 81 BK 12.89 CAD Cart
LEM-10-40-W-OR M10 40 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 81 OR 12.89 CAD Cart
LEM-10-40-W-SG M10 40 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 81 SG 12.89 CAD Cart
LEM-10-50-W-BK M10 50 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 86 BK 12.89 CAD Cart
LEM-10-50-W-OR M10 50 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 86 OR 12.89 CAD Cart
LEM-10-50-W-SG M10 50 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 86 SG 12.89 CAD Cart
LEM-10-63-W-BK M10 63 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 92 BK 13.66 CAD Cart
LEM-10-63-W-OR M10 63 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 92 OR 13.66 CAD Cart
LEM-10-63-W-SG M10 63 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 92 SG 13.66 CAD Cart
LEM-10-80-W-BK M10 80 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 101 BK 15.51 CAD Cart
LEM-10-80-W-OR M10 80 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 101 OR 15.51 CAD Cart
LEM-10-80-W-SG M10 80 78 55.4 59.4 36 8 21 16 18.4 2.5 20 1 7 11 26 200 11 101 SG 15.51 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

LEM-W
Lever Part Nylon 6 (Various Color)
Thread Part SUM22L
Ferrosoferric Oxide Film (Black)
Setscrew Steel
Ferrosoferric Oxide Film (Black)
Serration Ring (Insert) Zinc Die Cast
Spring Washer SUS304
Plain Washer SUS304
Spring Stainless Steel Wire

Characteristics

  • Plastic clamp lever with spring washer.
  • This eliminates the need to mount spring washers.
  • The special shape of the plain washer holds the spring washer captive.
  • The plain washer can be rotated along the thread ridges and removed. The spring washer can be replaced with a different washer component.

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type

  • The zinc die cast serration ring is inserted into the plastic lever main unit. It achieves sufficient fitting strength with the metal screw serrations.
  • The lever is available in 3 color variations. They can be selected by the end symbol of the part number.
End Symbol Lever Part Color
BK Matte Black
SG Matte Silver
OR Matte Orange

Only takes a minute to understand! How to Use Clamp Levers.

Precautions for Use

Before tightening the lever, make sure that the plain washers are located at the relief cut section as shown in Fig. 1. Tightening the plain washer while hooked on the screw thread as shown in Fig. 2 may cause the plain washer to be deformed.

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type

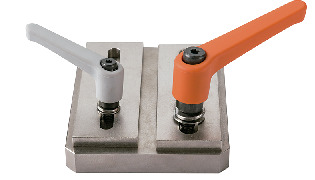

Usage Example

Can be used for tightening slotted holes.

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type

Nominal of thread for slotted hole widths should be +0.5 mm or less.


Related Products

Plastic LEM clamp levers without spring washers are available.
LEM

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type

Plastic LEM-LW clamp levers with plain washers are available.
LEM-LW

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type

Plastic LEM-LWP clamp levers with flat washers for slotted holes are available.
LEM-LWP

LEM-WPlastic Clamp Levers - Spring Washer Integrated Type
