  • Clamp Levers

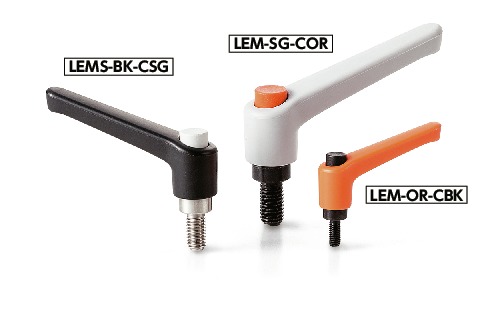

Plastic Clamp Lever, Male Screw - with Push Button

LEMS-C

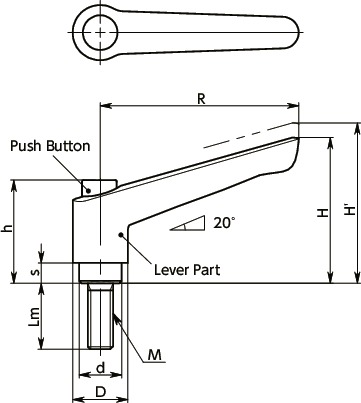

Dimension Drawing

LEMS-CPlastic Clamp Lever, Male Screw - with Push Button寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
Lm
All
6
8
10
12
16
20
25
32
40
50
63
80
Lever Part
Color
All
BK
OR
SG

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch Lm R H H' h s D d Tooth No. Max. load
(N)
Max. tightening force
(kN)
Lever Part
Color
Mass
(g)
Price
(USD)
CAD
Download
Add to Cart
LEMS-3-6-BK-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-8-BK-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-10-BK-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-12-BK-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-16-BK-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-6-BK-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-8-BK-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-10-BK-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-12-BK-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-16-BK-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-6-BK-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-8-BK-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-10-BK-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-12-BK-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-16-BK-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 BK 15 17.65 CAD Cart
LEMS-3-6-OR-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-8-OR-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-10-OR-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-12-OR-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-16-OR-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-6-OR-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-8-OR-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-10-OR-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-12-OR-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-16-OR-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-6-OR-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-8-OR-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-10-OR-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-12-OR-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-16-OR-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 OR 15 17.65 CAD Cart
LEMS-3-6-SG-CBK M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-8-SG-CBK M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-10-SG-CBK M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-12-SG-CBK M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-16-SG-CBK M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-6-SG-COR M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-8-SG-COR M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-10-SG-COR M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-12-SG-COR M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-16-SG-COR M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-6-SG-CSG M3 0.5 6 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-8-SG-CSG M3 0.5 8 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-10-SG-CSG M3 0.5 10 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-12-SG-CSG M3 0.5 12 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-3-16-SG-CSG M3 0.5 16 45 35.5 39 24 4.2 13 10 18 9 0.95 SG 15 17.65 CAD Cart
LEMS-4-10-BK-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-12-BK-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-16-BK-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-20-BK-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-25-BK-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-32-BK-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-10-BK-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-12-BK-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-16-BK-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-20-BK-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-25-BK-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-32-BK-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-10-BK-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-12-BK-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-16-BK-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-20-BK-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 15 17.25 CAD Cart
LEMS-4-25-BK-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-32-BK-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 BK 16 17.25 CAD Cart
LEMS-4-10-OR-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-12-OR-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-16-OR-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-20-OR-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-25-OR-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-32-OR-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-10-OR-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-12-OR-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-16-OR-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-20-OR-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-25-OR-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-32-OR-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-10-OR-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-12-OR-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-16-OR-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-20-OR-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 15 17.25 CAD Cart
LEMS-4-25-OR-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-32-OR-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 OR 16 17.25 CAD Cart
LEMS-4-10-SG-CBK M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-12-SG-CBK M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-16-SG-CBK M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-20-SG-CBK M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-25-SG-CBK M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-4-32-SG-CBK M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-4-10-SG-COR M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-12-SG-COR M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-16-SG-COR M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-20-SG-COR M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-25-SG-COR M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-4-32-SG-COR M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-4-10-SG-CSG M4 0.7 10 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-12-SG-CSG M4 0.7 12 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-16-SG-CSG M4 0.7 16 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-20-SG-CSG M4 0.7 20 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 15 17.25 CAD Cart
LEMS-4-25-SG-CSG M4 0.7 25 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-4-32-SG-CSG M4 0.7 32 45 35.5 39 24 4.2 13 10 18 21 1.7 SG 16 17.25 CAD Cart
LEMS-5-12-BK-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-16-BK-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-20-BK-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-25-BK-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 17.25 CAD Cart
LEMS-5-32-BK-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 17.25 CAD Cart
LEMS-5-40-BK-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 17.25 CAD Cart
LEMS-5-50-BK-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 17.98 CAD Cart
LEMS-5-12-BK-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-16-BK-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-20-BK-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-25-BK-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 17.25 CAD Cart
LEMS-5-32-BK-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 17.25 CAD Cart
LEMS-5-40-BK-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 17.25 CAD Cart
LEMS-5-50-BK-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 17.98 CAD Cart
LEMS-5-12-BK-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-16-BK-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-20-BK-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 16 17.25 CAD Cart
LEMS-5-25-BK-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 17 17.25 CAD Cart
LEMS-5-32-BK-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 18 17.25 CAD Cart
LEMS-5-40-BK-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 19 17.25 CAD Cart
LEMS-5-50-BK-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 BK 20 17.98 CAD Cart
LEMS-5-12-OR-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-16-OR-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-20-OR-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-25-OR-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 17.25 CAD Cart
LEMS-5-32-OR-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 17.25 CAD Cart
LEMS-5-40-OR-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 17.25 CAD Cart
LEMS-5-50-OR-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 17.98 CAD Cart
LEMS-5-12-OR-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-16-OR-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-20-OR-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-25-OR-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 17.25 CAD Cart
LEMS-5-32-OR-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 17.25 CAD Cart
LEMS-5-40-OR-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 17.25 CAD Cart
LEMS-5-50-OR-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 17.98 CAD Cart
LEMS-5-12-OR-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-16-OR-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-20-OR-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 16 17.25 CAD Cart
LEMS-5-25-OR-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 17 17.25 CAD Cart
LEMS-5-32-OR-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 18 17.25 CAD Cart
LEMS-5-40-OR-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 19 17.25 CAD Cart
LEMS-5-50-OR-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 OR 20 17.98 CAD Cart
LEMS-5-12-SG-CBK M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-16-SG-CBK M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-20-SG-CBK M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-25-SG-CBK M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 17.25 CAD Cart
LEMS-5-32-SG-CBK M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 17.25 CAD Cart
LEMS-5-40-SG-CBK M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 17.25 CAD Cart
LEMS-5-50-SG-CBK M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 17.98 CAD Cart
LEMS-5-12-SG-COR M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-16-SG-COR M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-20-SG-COR M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-25-SG-COR M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 17.25 CAD Cart
LEMS-5-32-SG-COR M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 17.25 CAD Cart
LEMS-5-40-SG-COR M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 17.25 CAD Cart
LEMS-5-50-SG-COR M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 17.98 CAD Cart
LEMS-5-12-SG-CSG M5 0.8 12 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-16-SG-CSG M5 0.8 16 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-20-SG-CSG M5 0.8 20 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 16 17.25 CAD Cart
LEMS-5-25-SG-CSG M5 0.8 25 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 17 17.25 CAD Cart
LEMS-5-32-SG-CSG M5 0.8 32 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 18 17.25 CAD Cart
LEMS-5-40-SG-CSG M5 0.8 40 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 19 17.25 CAD Cart
LEMS-5-50-SG-CSG M5 0.8 50 45 35.5 39 24 4.2 13 10 18 42 2.7 SG 20 17.98 CAD Cart
LEMS-6-12-BK-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-16-BK-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-20-BK-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 17.25 CAD Cart
LEMS-6-25-BK-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 17.25 CAD Cart
LEMS-6-32-BK-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 17.25 CAD Cart
LEMS-6-40-BK-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 17.25 CAD Cart
LEMS-6-50-BK-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 17.98 CAD Cart
LEMS-6-12-BK-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-16-BK-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-20-BK-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 17.25 CAD Cart
LEMS-6-25-BK-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 17.25 CAD Cart
LEMS-6-32-BK-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 17.25 CAD Cart
LEMS-6-40-BK-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 17.25 CAD Cart
LEMS-6-50-BK-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 17.98 CAD Cart
LEMS-6-12-BK-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-16-BK-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 16 17.25 CAD Cart
LEMS-6-20-BK-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 17 17.25 CAD Cart
LEMS-6-25-BK-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 18 17.25 CAD Cart
LEMS-6-32-BK-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 19 17.25 CAD Cart
LEMS-6-40-BK-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 21 17.25 CAD Cart
LEMS-6-50-BK-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 BK 22 17.98 CAD Cart
LEMS-6-12-OR-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-16-OR-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-20-OR-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 17.25 CAD Cart
LEMS-6-25-OR-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 17.25 CAD Cart
LEMS-6-32-OR-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 17.25 CAD Cart
LEMS-6-40-OR-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 17.25 CAD Cart
LEMS-6-50-OR-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 17.98 CAD Cart
LEMS-6-12-OR-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-16-OR-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-20-OR-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 17.25 CAD Cart
LEMS-6-25-OR-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 17.25 CAD Cart
LEMS-6-32-OR-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 17.25 CAD Cart
LEMS-6-40-OR-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 17.25 CAD Cart
LEMS-6-50-OR-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 17.98 CAD Cart
LEMS-6-12-OR-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-16-OR-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 16 17.25 CAD Cart
LEMS-6-20-OR-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 17 17.25 CAD Cart
LEMS-6-25-OR-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 18 17.25 CAD Cart
LEMS-6-32-OR-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 19 17.25 CAD Cart
LEMS-6-40-OR-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 21 17.25 CAD Cart
LEMS-6-50-OR-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 OR 22 17.98 CAD Cart
LEMS-6-12-SG-CBK M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-16-SG-CBK M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-20-SG-CBK M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 17.25 CAD Cart
LEMS-6-25-SG-CBK M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 17.25 CAD Cart
LEMS-6-32-SG-CBK M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 17.25 CAD Cart
LEMS-6-40-SG-CBK M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 17.25 CAD Cart
LEMS-6-50-SG-CBK M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 17.98 CAD Cart
LEMS-6-12-SG-COR M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-16-SG-COR M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-20-SG-COR M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 17.25 CAD Cart
LEMS-6-25-SG-COR M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 17.25 CAD Cart
LEMS-6-32-SG-COR M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 17.25 CAD Cart
LEMS-6-40-SG-COR M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 17.25 CAD Cart
LEMS-6-50-SG-COR M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 17.98 CAD Cart
LEMS-6-12-SG-CSG M6 1 12 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-16-SG-CSG M6 1 16 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 16 17.25 CAD Cart
LEMS-6-20-SG-CSG M6 1 20 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 17 17.25 CAD Cart
LEMS-6-25-SG-CSG M6 1 25 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 18 17.25 CAD Cart
LEMS-6-32-SG-CSG M6 1 32 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 19 17.25 CAD Cart
LEMS-6-40-SG-CSG M6 1 40 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 21 17.25 CAD Cart
LEMS-6-50-SG-CSG M6 1 50 45 35.5 39 24 4.2 13 10 18 70 3.8 SG 22 17.98 CAD Cart
LEMS-6B-16-BK-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 19.87 CAD Cart
LEMS-6B-20-BK-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 19.87 CAD Cart
LEMS-6B-25-BK-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 19.87 CAD Cart
LEMS-6B-32-BK-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 19.87 CAD Cart
LEMS-6B-40-BK-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 20.38 CAD Cart
LEMS-6B-50-BK-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 21.30 CAD Cart
LEMS-6B-63-BK-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 24.91 CAD Cart
LEMS-6B-16-BK-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 19.87 CAD Cart
LEMS-6B-20-BK-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 19.87 CAD Cart
LEMS-6B-25-BK-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 19.87 CAD Cart
LEMS-6B-32-BK-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 19.87 CAD Cart
LEMS-6B-40-BK-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 20.38 CAD Cart
LEMS-6B-50-BK-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 21.30 CAD Cart
LEMS-6B-63-BK-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 24.91 CAD Cart
LEMS-6B-16-BK-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 36 19.87 CAD Cart
LEMS-6B-20-BK-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 37 19.87 CAD Cart
LEMS-6B-25-BK-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 38 19.87 CAD Cart
LEMS-6B-32-BK-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 39 19.87 CAD Cart
LEMS-6B-40-BK-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 41 20.38 CAD Cart
LEMS-6B-50-BK-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 42 21.30 CAD Cart
LEMS-6B-63-BK-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 BK 44 24.91 CAD Cart
LEMS-6B-16-OR-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 19.87 CAD Cart
LEMS-6B-20-OR-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 19.87 CAD Cart
LEMS-6B-25-OR-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 19.87 CAD Cart
LEMS-6B-32-OR-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 19.87 CAD Cart
LEMS-6B-40-OR-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 20.38 CAD Cart
LEMS-6B-50-OR-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 21.30 CAD Cart
LEMS-6B-63-OR-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 24.91 CAD Cart
LEMS-6B-16-OR-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 19.87 CAD Cart
LEMS-6B-20-OR-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 19.87 CAD Cart
LEMS-6B-25-OR-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 19.87 CAD Cart
LEMS-6B-32-OR-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 19.87 CAD Cart
LEMS-6B-40-OR-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 20.38 CAD Cart
LEMS-6B-50-OR-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 21.30 CAD Cart
LEMS-6B-63-OR-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 24.91 CAD Cart
LEMS-6B-16-OR-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 36 19.87 CAD Cart
LEMS-6B-20-OR-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 37 19.87 CAD Cart
LEMS-6B-25-OR-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 38 19.87 CAD Cart
LEMS-6B-32-OR-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 39 19.87 CAD Cart
LEMS-6B-40-OR-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 41 20.38 CAD Cart
LEMS-6B-50-OR-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 42 21.30 CAD Cart
LEMS-6B-63-OR-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 OR 44 24.91 CAD Cart
LEMS-6B-16-SG-CBK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 19.87 CAD Cart
LEMS-6B-20-SG-CBK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 19.87 CAD Cart
LEMS-6B-25-SG-CBK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 19.87 CAD Cart
LEMS-6B-32-SG-CBK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 19.87 CAD Cart
LEMS-6B-40-SG-CBK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 20.38 CAD Cart
LEMS-6B-50-SG-CBK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 21.30 CAD Cart
LEMS-6B-63-SG-CBK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 24.91 CAD Cart
LEMS-6B-16-SG-COR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 19.87 CAD Cart
LEMS-6B-20-SG-COR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 19.87 CAD Cart
LEMS-6B-25-SG-COR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 19.87 CAD Cart
LEMS-6B-32-SG-COR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 19.87 CAD Cart
LEMS-6B-40-SG-COR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 20.38 CAD Cart
LEMS-6B-50-SG-COR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 21.30 CAD Cart
LEMS-6B-63-SG-COR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 24.91 CAD Cart
LEMS-6B-16-SG-CSG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 36 19.87 CAD Cart
LEMS-6B-20-SG-CSG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 37 19.87 CAD Cart
LEMS-6B-25-SG-CSG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 38 19.87 CAD Cart
LEMS-6B-32-SG-CSG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 39 19.87 CAD Cart
LEMS-6B-40-SG-CSG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 41 20.38 CAD Cart
LEMS-6B-50-SG-CSG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 42 21.30 CAD Cart
LEMS-6B-63-SG-CSG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 SG 44 24.91 CAD Cart
LEMS-8-16-BK-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 19.87 CAD Cart
LEMS-8-20-BK-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 19.87 CAD Cart
LEMS-8-25-BK-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 19.87 CAD Cart
LEMS-8-32-BK-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 19.87 CAD Cart
LEMS-8-40-BK-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 20.38 CAD Cart
LEMS-8-50-BK-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 21.30 CAD Cart
LEMS-8-63-BK-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 24.91 CAD Cart
LEMS-8-16-BK-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 19.87 CAD Cart
LEMS-8-20-BK-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 19.87 CAD Cart
LEMS-8-25-BK-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 19.87 CAD Cart
LEMS-8-32-BK-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 19.87 CAD Cart
LEMS-8-40-BK-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 20.38 CAD Cart
LEMS-8-50-BK-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 21.30 CAD Cart
LEMS-8-63-BK-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 24.91 CAD Cart
LEMS-8-16-BK-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 39 19.87 CAD Cart
LEMS-8-20-BK-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 40 19.87 CAD Cart
LEMS-8-25-BK-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 42 19.87 CAD Cart
LEMS-8-32-BK-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 43 19.87 CAD Cart
LEMS-8-40-BK-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 46 20.38 CAD Cart
LEMS-8-50-BK-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 49 21.30 CAD Cart
LEMS-8-63-BK-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 BK 53 24.91 CAD Cart
LEMS-8-16-OR-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 19.87 CAD Cart
LEMS-8-20-OR-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 19.87 CAD Cart
LEMS-8-25-OR-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 19.87 CAD Cart
LEMS-8-32-OR-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 19.87 CAD Cart
LEMS-8-40-OR-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 20.38 CAD Cart
LEMS-8-50-OR-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 21.30 CAD Cart
LEMS-8-63-OR-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 24.91 CAD Cart
LEMS-8-16-OR-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 19.87 CAD Cart
LEMS-8-20-OR-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 19.87 CAD Cart
LEMS-8-25-OR-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 19.87 CAD Cart
LEMS-8-32-OR-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 19.87 CAD Cart
LEMS-8-40-OR-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 20.38 CAD Cart
LEMS-8-50-OR-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 21.30 CAD Cart
LEMS-8-63-OR-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 24.91 CAD Cart
LEMS-8-16-OR-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 39 19.87 CAD Cart
LEMS-8-20-OR-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 40 19.87 CAD Cart
LEMS-8-25-OR-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 42 19.87 CAD Cart
LEMS-8-32-OR-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 43 19.87 CAD Cart
LEMS-8-40-OR-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 46 20.38 CAD Cart
LEMS-8-50-OR-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 49 21.30 CAD Cart
LEMS-8-63-OR-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 OR 53 24.91 CAD Cart
LEMS-8-16-SG-CBK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 19.87 CAD Cart
LEMS-8-20-SG-CBK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 19.87 CAD Cart
LEMS-8-25-SG-CBK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 19.87 CAD Cart
LEMS-8-32-SG-CBK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 19.87 CAD Cart
LEMS-8-40-SG-CBK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 20.38 CAD Cart
LEMS-8-50-SG-CBK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 21.30 CAD Cart
LEMS-8-63-SG-CBK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 24.91 CAD Cart
LEMS-8-16-SG-COR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 19.87 CAD Cart
LEMS-8-20-SG-COR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 19.87 CAD Cart
LEMS-8-25-SG-COR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 19.87 CAD Cart
LEMS-8-32-SG-COR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 19.87 CAD Cart
LEMS-8-40-SG-COR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 20.38 CAD Cart
LEMS-8-50-SG-COR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 21.30 CAD Cart
LEMS-8-63-SG-COR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 24.91 CAD Cart
LEMS-8-16-SG-CSG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 39 19.87 CAD Cart
LEMS-8-20-SG-CSG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 40 19.87 CAD Cart
LEMS-8-25-SG-CSG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 42 19.87 CAD Cart
LEMS-8-32-SG-CSG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 43 19.87 CAD Cart
LEMS-8-40-SG-CSG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 46 20.38 CAD Cart
LEMS-8-50-SG-CSG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 49 21.30 CAD Cart
LEMS-8-63-SG-CSG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 SG 53 24.91 CAD Cart
LEMS-8B-20-BK-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 22.93 CAD Cart
LEMS-8B-25-BK-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 22.93 CAD Cart
LEMS-8B-32-BK-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 23.12 CAD Cart
LEMS-8B-40-BK-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 23.98 CAD Cart
LEMS-8B-50-BK-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 25.15 CAD Cart
LEMS-8B-63-BK-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 30.01 CAD Cart
LEMS-8B-80-BK-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 31.81 CAD Cart
LEMS-8B-20-BK-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 22.93 CAD Cart
LEMS-8B-25-BK-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 22.93 CAD Cart
LEMS-8B-32-BK-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 23.12 CAD Cart
LEMS-8B-40-BK-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 23.98 CAD Cart
LEMS-8B-50-BK-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 25.15 CAD Cart
LEMS-8B-63-BK-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 30.01 CAD Cart
LEMS-8B-80-BK-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 31.81 CAD Cart
LEMS-8B-20-BK-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 BK 62 22.93 CAD Cart
LEMS-8B-25-BK-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 BK 63 22.93 CAD Cart
LEMS-8B-32-BK-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 BK 66 23.12 CAD Cart
LEMS-8B-40-BK-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 BK 70 23.98 CAD Cart
LEMS-8B-50-BK-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 BK 73 25.15 CAD Cart
LEMS-8B-63-BK-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 BK 77 30.01 CAD Cart
LEMS-8B-80-BK-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 BK 82 31.81 CAD Cart
LEMS-8B-20-OR-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 22.93 CAD Cart
LEMS-8B-25-OR-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 22.93 CAD Cart
LEMS-8B-32-OR-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 23.12 CAD Cart
LEMS-8B-40-OR-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 23.98 CAD Cart
LEMS-8B-50-OR-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 25.15 CAD Cart
LEMS-8B-63-OR-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 30.01 CAD Cart
LEMS-8B-80-OR-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 31.81 CAD Cart
LEMS-8B-20-OR-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 22.93 CAD Cart
LEMS-8B-25-OR-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 22.93 CAD Cart
LEMS-8B-32-OR-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 23.12 CAD Cart
LEMS-8B-40-OR-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 23.98 CAD Cart
LEMS-8B-50-OR-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 25.15 CAD Cart
LEMS-8B-63-OR-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 30.01 CAD Cart
LEMS-8B-80-OR-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 31.81 CAD Cart
LEMS-8B-20-OR-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 OR 62 22.93 CAD Cart
LEMS-8B-25-OR-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 OR 63 22.93 CAD Cart
LEMS-8B-32-OR-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 OR 66 23.12 CAD Cart
LEMS-8B-40-OR-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 OR 70 23.98 CAD Cart
LEMS-8B-50-OR-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 OR 73 25.15 CAD Cart
LEMS-8B-63-OR-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 OR 77 30.01 CAD Cart
LEMS-8B-80-OR-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 OR 82 31.81 CAD Cart
LEMS-8B-20-SG-CBK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 22.93 CAD Cart
LEMS-8B-25-SG-CBK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 22.93 CAD Cart
LEMS-8B-32-SG-CBK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 23.12 CAD Cart
LEMS-8B-40-SG-CBK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 23.98 CAD Cart
LEMS-8B-50-SG-CBK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 25.15 CAD Cart
LEMS-8B-63-SG-CBK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 30.01 CAD Cart
LEMS-8B-80-SG-CBK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 31.81 CAD Cart
LEMS-8B-20-SG-COR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 22.93 CAD Cart
LEMS-8B-25-SG-COR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 22.93 CAD Cart
LEMS-8B-32-SG-COR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 23.12 CAD Cart
LEMS-8B-40-SG-COR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 23.98 CAD Cart
LEMS-8B-50-SG-COR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 25.15 CAD Cart
LEMS-8B-63-SG-COR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 30.01 CAD Cart
LEMS-8B-80-SG-COR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 31.81 CAD Cart
LEMS-8B-20-SG-CSG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 SG 62 22.93 CAD Cart
LEMS-8B-25-SG-CSG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 SG 63 22.93 CAD Cart
LEMS-8B-32-SG-CSG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 SG 66 23.12 CAD Cart
LEMS-8B-40-SG-CSG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 SG 70 23.98 CAD Cart
LEMS-8B-50-SG-CSG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 SG 73 25.15 CAD Cart
LEMS-8B-63-SG-CSG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 SG 77 30.01 CAD Cart
LEMS-8B-80-SG-CSG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 SG 82 31.81 CAD Cart
LEMS-10-20-BK-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 22.93 CAD Cart
LEMS-10-25-BK-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 22.93 CAD Cart
LEMS-10-32-BK-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 23.12 CAD Cart
LEMS-10-40-BK-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 23.98 CAD Cart
LEMS-10-50-BK-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 25.15 CAD Cart
LEMS-10-63-BK-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 30.01 CAD Cart
LEMS-10-80-BK-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 31.81 CAD Cart
LEMS-10-20-BK-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 22.93 CAD Cart
LEMS-10-25-BK-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 22.93 CAD Cart
LEMS-10-32-BK-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 23.12 CAD Cart
LEMS-10-40-BK-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 23.98 CAD Cart
LEMS-10-50-BK-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 25.15 CAD Cart
LEMS-10-63-BK-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 30.01 CAD Cart
LEMS-10-80-BK-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 31.81 CAD Cart
LEMS-10-20-BK-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 BK 66 22.93 CAD Cart
LEMS-10-25-BK-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 BK 69 22.93 CAD Cart
LEMS-10-32-BK-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 BK 72 23.12 CAD Cart
LEMS-10-40-BK-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 BK 76 23.98 CAD Cart
LEMS-10-50-BK-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 BK 81 25.15 CAD Cart
LEMS-10-63-BK-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 BK 88 30.01 CAD Cart
LEMS-10-80-BK-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 BK 96 31.81 CAD Cart
LEMS-10-20-OR-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 22.93 CAD Cart
LEMS-10-25-OR-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 22.93 CAD Cart
LEMS-10-32-OR-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 23.12 CAD Cart
LEMS-10-40-OR-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 23.98 CAD Cart
LEMS-10-50-OR-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 25.15 CAD Cart
LEMS-10-63-OR-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 30.01 CAD Cart
LEMS-10-80-OR-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 31.81 CAD Cart
LEMS-10-20-OR-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 22.93 CAD Cart
LEMS-10-25-OR-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 22.93 CAD Cart
LEMS-10-32-OR-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 23.12 CAD Cart
LEMS-10-40-OR-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 23.98 CAD Cart
LEMS-10-50-OR-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 25.15 CAD Cart
LEMS-10-63-OR-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 30.01 CAD Cart
LEMS-10-80-OR-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 31.81 CAD Cart
LEMS-10-20-OR-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 OR 66 22.93 CAD Cart
LEMS-10-25-OR-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 OR 69 22.93 CAD Cart
LEMS-10-32-OR-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 OR 72 23.12 CAD Cart
LEMS-10-40-OR-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 OR 76 23.98 CAD Cart
LEMS-10-50-OR-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 OR 81 25.15 CAD Cart
LEMS-10-63-OR-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 OR 88 30.01 CAD Cart
LEMS-10-80-OR-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 OR 96 31.81 CAD Cart
LEMS-10-20-SG-CBK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 22.93 CAD Cart
LEMS-10-25-SG-CBK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 22.93 CAD Cart
LEMS-10-32-SG-CBK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 23.12 CAD Cart
LEMS-10-40-SG-CBK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 23.98 CAD Cart
LEMS-10-50-SG-CBK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 25.15 CAD Cart
LEMS-10-63-SG-CBK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 30.01 CAD Cart
LEMS-10-80-SG-CBK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 31.81 CAD Cart
LEMS-10-20-SG-COR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 22.93 CAD Cart
LEMS-10-25-SG-COR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 22.93 CAD Cart
LEMS-10-32-SG-COR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 23.12 CAD Cart
LEMS-10-40-SG-COR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 23.98 CAD Cart
LEMS-10-50-SG-COR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 25.15 CAD Cart
LEMS-10-63-SG-COR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 30.01 CAD Cart
LEMS-10-80-SG-COR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 31.81 CAD Cart
LEMS-10-20-SG-CSG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 SG 66 22.93 CAD Cart
LEMS-10-25-SG-CSG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 SG 69 22.93 CAD Cart
LEMS-10-32-SG-CSG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 SG 72 23.12 CAD Cart
LEMS-10-40-SG-CSG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 SG 76 23.98 CAD Cart
LEMS-10-50-SG-CSG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 SG 81 25.15 CAD Cart
LEMS-10-63-SG-CSG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 SG 88 30.01 CAD Cart
LEMS-10-80-SG-CSG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 SG 96 31.81 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

LEMS-C
Lever Part Nylon 6 (Various Color)
Thread Part SUS303
Push Button Nylon 6 (Various Color)
Serration Ring
(Insert)
Zinc die cast
Spring Stainless Steel Wire

Characteristics

  • A plastic clamp lever with push button. Male screw type.
  • When the lever part is pulled up for position adjustment, the force is easily transmitted to help the operation if a push button is available.
  • A serration ring made of zinc die cast is inserted into the lever body made of plastic. They also realize sufficient strength for fitting with metal thread serration.
  • A rich variety of thread sizes from M3 to M12 are available.
  • There are two types of thread part materials:
    LEM-C----Made of steel
    LEMS-C----Made of stainless steel
  • Three color variations for the lever part and three for the push button are available. Each color can be selected by the symbol of the part number.
  • Color variations of the lever part
Symbol Lever Part Color
BK Matte black
SG Matte silver
OR Matte orange
  • Operation Button Color Variations
Symbol Operation Button Color
CBK Matte black
CSG Matte silver
COR Matte orange

Only takes a minute to understand! How to Use Clamp Levers.

Related Products

SWAS-PPK washers suitable for positioning and fixing slide mechanisms using slotted holes are available. SWAS-PPK

LEMS-CPlastic Clamp Levers, Male Screw - with Push Button


Related Services

Product List
