Specs/CAD
Unit : mm
Part Number | D1*1 | D2*1 | B1*1 | B2*1 | A | W | P | M(coarse) | H | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCCA-8-8-C | 8 | 8 | - | - | 12 | 32 | 10 | M3 | 11 | 9 | 24.92 | CAD | Cart |
FCCA-8-10-C | 8 | 10 | - | 8 | 14 | 40 | 12 | M4 | 14 | 16 | 28.44 | CAD | Cart |
FCCA-10-10-C | 10 | 10 | 8 | 8 | 14 | 40 | 12 | M4 | 14 | 15 | 28.44 | CAD | Cart |
FCCA-10-12-C | 10 | 12 | 8 | 10 | 16 | 45 | 15 | M4 | 15 | 22 | 32.51 | CAD | Cart |
FCCA-12-12-C | 12 | 12 | 10 | 10 | 16 | 45 | 15 | M4 | 15 | 21 | 32.51 | CAD | Cart |
FCCA-10-15-C | 10 | 15 | 8 | 12 | 19 | 55 | 19 | M5 | 18 | 39 | 37.75 | CAD | Cart |
FCCA-12-15-C | 12 | 15 | 10 | 12 | 19 | 55 | 19 | M5 | 18 | 38 | 37.75 | CAD | Cart |
FCCA-15-15-C | 15 | 15 | 12 | 12 | 19 | 55 | 19 | M5 | 18 | 34 | 37.75 | CAD | Cart |
FCCA-12-20-C | 12 | 20 | 10 | 16 | 25 | 64 | 24 | M5 | 20 | 77 | 45.26 | CAD | Cart |
FCCA-15-20-C | 15 | 20 | 12 | 16 | 25 | 64 | 24 | M5 | 20 | 73 | 45.26 | CAD | Cart |
FCCA-20-20-C | 20 | 20 | 16 | 16 | 25 | 64 | 24 | M5 | 20 | 64 | 45.26 | CAD | Cart |
*1: Dimensional allowance before slit machining.
● Recommended dimensional allowance of the shaft is g6. Use a long wrench to tighten the screw.
Material/Finish

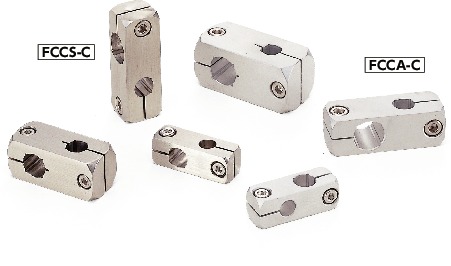

FCCA-C Made of Aluminum | |
---|---|
Main Body | Aluminum Alloy |
Hex Socket Head Cap Screw | SUSXM7 |
Characteristics
- The clamper joints 2 shafts with cross.
- Clamping Type. Mounting shaft and removing shaft are easy. Moreover this does not scratch the shaft.
- Convenient for adjustment of side guide and sensors of the conveyance line.
- Light aluminum and stainless steel with highly corrosion-resistant are standardized.
- Compatible with both round shaft and square shaft.
- All products are provided with hex socket head cap screw.
