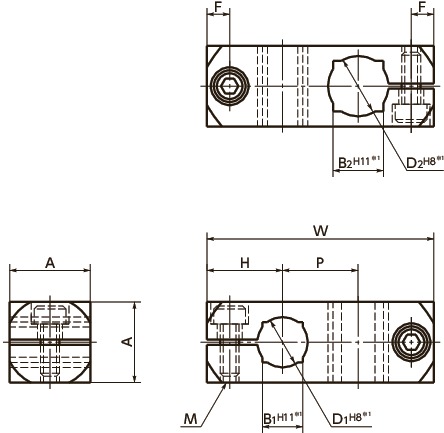

Dimension Drawing
＊1： Dimensional allowance before slit machining.
Specs/CAD
Unit : mm
| Part Number | D1＊1 | D2＊1 | B1＊1 | B2＊1 | A | W | P | M（coarse） | H | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FCCS-8-8-C | 8 | 8 | - | - | 12 | 32 | 10 | M3 | 11 | 26 | 33.42 | CAD | Cart |
| FCCS-8-10-C | 8 | 10 | - | 8 | 14 | 40 | 12 | M4 | 14 | 46 | 38.82 | CAD | Cart |
| FCCS-10-10-C | 10 | 10 | 8 | 8 | 14 | 40 | 12 | M4 | 14 | 43 | 38.82 | CAD | Cart |
| FCCS-10-12-C | 10 | 12 | 8 | 10 | 16 | 45 | 15 | M4 | 15 | 65 | 44.09 | CAD | Cart |
| FCCS-12-12-C | 12 | 12 | 10 | 10 | 16 | 45 | 15 | M4 | 15 | 61 | 44.09 | CAD | Cart |
| FCCS-10-15-C | 10 | 15 | 8 | 12 | 19 | 55 | 19 | M5 | 18 | 116 | 51.28 | CAD | Cart |
| FCCS-12-15-C | 12 | 15 | 10 | 12 | 19 | 55 | 19 | M5 | 18 | 111 | 51.28 | CAD | Cart |
| FCCS-15-15-C | 15 | 15 | 12 | 12 | 19 | 55 | 19 | M5 | 18 | 102 | 51.28 | CAD | Cart |
| FCCS-12-20-C | 12 | 20 | 10 | 16 | 25 | 64 | 24 | M5 | 20 | 229 | 61.40 | CAD | Cart |
| FCCS-15-20-C | 15 | 20 | 12 | 16 | 25 | 64 | 24 | M5 | 20 | 217 | 61.40 | CAD | Cart |
| FCCS-20-20-C | 20 | 20 | 16 | 16 | 25 | 64 | 24 | M5 | 20 | 190 | 61.40 | CAD | Cart |
＊1： Dimensional allowance before slit machining.
● Recommended dimensional allowance of the shaft is g6. Use a long wrench to tighten the screw.
Material/Finish
| FCCS-C Made of Stainless Steel |
|
|---|---|
| Main body | SUS304 |
| Hex Socket Head Cap Screw |
SUSXM7 Molybdenum Disulfide Coating |
Characteristics
- The clamper joints 2 shafts with cross.
- Clamping Type. Mounting shaft and removing shaft are easy. Moreover this does not scratch the shaft.
- Convenient for adjustment of side guide and sensors of the conveyance line.
- Light aluminum and stainless steel with highly corrosion-resistant are standardized.
- Compatible with both round shaft and square shaft.
- All products are provided with hex socket head cap screw.
Usage Example
