• Cross Clampers

FCTA-C

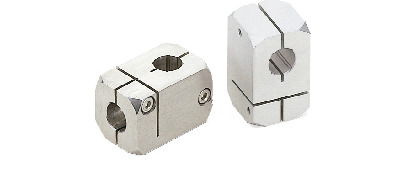

T-Cross Clamper

Dimension Drawing

FCTA-CT-Cross Clamper寸法図

*1: Dimensional allowance before slit machining.

Specs/CAD

Unit : mm

Part Number D1*1 D2*1 B1 A W L H F1 F2 M (Coarse) Mass
(g)
Price
(USD)
CAD
Download
Add to Cart
FCTA-8-10-C 8 10 - 22 35 12.5 11 5.5 3.7 M3 37 28.97 CAD Cart
FCTA-10-10-C 10 10 8 22 35 12.5 11 5.5 3.7 M3 36 28.97 CAD Cart
FCTA-12-12-C 12 12 10 25 40 14.5 12.5 6 3.8 M3 52 33.05 CAD Cart
FCTA-15-15-C 15 15 12 30 50 18 15.5 7 4.5 M4 93 39.19 CAD Cart
FCTA-20-20-C 20 20 16 38 63 21.5 20 9 5.5 M5 187 46.72 CAD Cart

Material/Finish

FCTA-C Made of Aluminum
Main Body Aluminum Alloy
Hex Socket Head Cap Screw SUSXM7

Characteristics

  • The clamper joints 2 shafts with T-shaped cross.
  • Clamping Type. Mounting shaft and removing shaft are easy. Moreover this does not scratch the shaft.
  • Space-saving layout is possible.
  • Convenient for fixing of side guide and sensors of the conveyance line.
  • Light aluminum and stainless steel with highly corrosion-resistant are standardized.
  • Compatible with both round shaft and square shaft.
  • All products are provided with hex socket head cap screw.
