• Knobs

KUDM

Plastic Miniature Knob

  • COLOR UNIVERSAL DESIGN

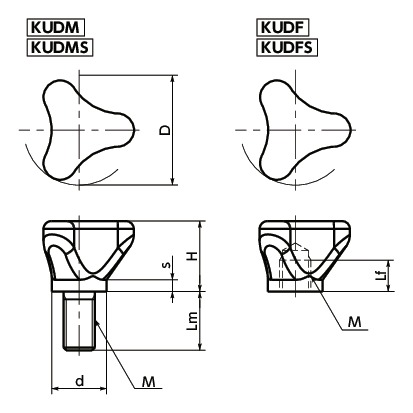

Dimension Drawing

KUDMPlastic Miniature Knob寸法図

Specs/CAD

Select

D
All
16
20
25
32
40
Color
All
BK
BL
OR
SG
YW

Unit : mm

Part Number D M(coarse) Lm H s d Mass
(g)
Color Price
(USD)
CAD Add to Cart
KUDM-16-M3-10-BK 16 M3 10 12.5 2 9 9 BK 4.17 CAD Cart
KUDM-16-M3-10-BL 16 M3 10 12.5 2 9 9 BL 4.17 CAD Cart
KUDM-16-M3-10-OR 16 M3 10 12.5 2 9 9 OR 4.17 CAD Cart
KUDM-16-M3-10-SG 16 M3 10 12.5 2 9 9 SG 4.17 CAD Cart
KUDM-16-M3-10-YW 16 M3 10 12.5 2 9 9 YW 4.17 CAD Cart
KUDM-16-M3-16-BK 16 M3 16 12.5 2 9 10 BK 4.17 CAD Cart
KUDM-16-M3-16-BL 16 M3 16 12.5 2 9 10 BL 4.17 CAD Cart
KUDM-16-M3-16-OR 16 M3 16 12.5 2 9 10 OR 4.17 CAD Cart
KUDM-16-M3-16-SG 16 M3 16 12.5 2 9 10 SG 4.17 CAD Cart
KUDM-16-M3-16-YW 16 M3 16 12.5 2 9 10 YW 4.17 CAD Cart
KUDM-16-M4-10-BK 16 M4 10 12.5 2 9 10 BK 4.17 CAD Cart
KUDM-16-M4-10-BL 16 M4 10 12.5 2 9 10 BL 4.17 CAD Cart
KUDM-16-M4-10-OR 16 M4 10 12.5 2 9 10 OR 4.17 CAD Cart
KUDM-16-M4-10-SG 16 M4 10 12.5 2 9 10 SG 4.17 CAD Cart
KUDM-16-M4-10-YW 16 M4 10 12.5 2 9 10 YW 4.17 CAD Cart
KUDM-16-M4-16-BK 16 M4 16 12.5 2 9 11 BK 4.17 CAD Cart
KUDM-16-M4-16-BL 16 M4 16 12.5 2 9 11 BL 4.17 CAD Cart
KUDM-16-M4-16-OR 16 M4 16 12.5 2 9 11 OR 4.17 CAD Cart
KUDM-16-M4-16-SG 16 M4 16 12.5 2 9 11 SG 4.17 CAD Cart
KUDM-16-M4-16-YW 16 M4 16 12.5 2 9 11 YW 4.17 CAD Cart
KUDM-16-M5-10-BK 16 M5 10 12.5 2 9 11 BK 4.17 CAD Cart
KUDM-16-M5-10-BL 16 M5 10 12.5 2 9 11 BL 4.17 CAD Cart
KUDM-16-M5-10-OR 16 M5 10 12.5 2 9 11 OR 4.17 CAD Cart
KUDM-16-M5-10-SG 16 M5 10 12.5 2 9 11 SG 4.17 CAD Cart
KUDM-16-M5-10-YW 16 M5 10 12.5 2 9 11 YW 4.17 CAD Cart
KUDM-16-M5-16-BK 16 M5 16 12.5 2 9 12 BK 4.17 CAD Cart
KUDM-16-M5-16-BL 16 M5 16 12.5 2 9 12 BL 4.17 CAD Cart
KUDM-16-M5-16-OR 16 M5 16 12.5 2 9 12 OR 4.17 CAD Cart
KUDM-16-M5-16-SG 16 M5 16 12.5 2 9 12 SG 4.17 CAD Cart
KUDM-16-M5-16-YW 16 M5 16 12.5 2 9 12 YW 4.17 CAD Cart
KUDM-16-M5-20-BK 16 M5 20 12.5 2 9 13 BK 4.17 CAD Cart
KUDM-16-M5-20-BL 16 M5 20 12.5 2 9 13 BL 4.17 CAD Cart
KUDM-16-M5-20-OR 16 M5 20 12.5 2 9 13 OR 4.17 CAD Cart
KUDM-16-M5-20-SG 16 M5 20 12.5 2 9 13 SG 4.17 CAD Cart
KUDM-16-M5-20-YW 16 M5 20 12.5 2 9 13 YW 4.17 CAD Cart
KUDM-20-M5-10-BK 20 M5 10 14 2.5 10 13 BK 4.31 CAD Cart
KUDM-20-M5-10-BL 20 M5 10 14 2.5 10 13 BL 4.31 CAD Cart
KUDM-20-M5-10-OR 20 M5 10 14 2.5 10 13 OR 4.31 CAD Cart
KUDM-20-M5-10-SG 20 M5 10 14 2.5 10 13 SG 4.31 CAD Cart
KUDM-20-M5-10-YW 20 M5 10 14 2.5 10 13 YW 4.31 CAD Cart
KUDM-20-M5-16-BK 20 M5 16 14 2.5 10 13 BK 4.31 CAD Cart
KUDM-20-M5-16-BL 20 M5 16 14 2.5 10 13 BL 4.31 CAD Cart
KUDM-20-M5-16-OR 20 M5 16 14 2.5 10 13 OR 4.31 CAD Cart
KUDM-20-M5-16-SG 20 M5 16 14 2.5 10 13 SG 4.31 CAD Cart
KUDM-20-M5-16-YW 20 M5 16 14 2.5 10 13 YW 4.31 CAD Cart
KUDM-20-M5-20-BK 20 M5 20 14 2.5 10 14 BK 4.31 CAD Cart
KUDM-20-M5-20-BL 20 M5 20 14 2.5 10 14 BL 4.31 CAD Cart
KUDM-20-M5-20-OR 20 M5 20 14 2.5 10 14 OR 4.31 CAD Cart
KUDM-20-M5-20-SG 20 M5 20 14 2.5 10 14 SG 4.31 CAD Cart
KUDM-20-M5-20-YW 20 M5 20 14 2.5 10 14 YW 4.31 CAD Cart
KUDM-20-M6-10-BK 20 M6 10 14 2.5 10 13 BK 4.31 CAD Cart
KUDM-20-M6-10-BL 20 M6 10 14 2.5 10 13 BL 4.31 CAD Cart
KUDM-20-M6-10-OR 20 M6 10 14 2.5 10 13 OR 4.31 CAD Cart
KUDM-20-M6-10-SG 20 M6 10 14 2.5 10 13 SG 4.31 CAD Cart
KUDM-20-M6-10-YW 20 M6 10 14 2.5 10 13 YW 4.31 CAD Cart
KUDM-20-M6-16-BK 20 M6 16 14 2.5 10 14 BK 4.31 CAD Cart
KUDM-20-M6-16-BL 20 M6 16 14 2.5 10 14 BL 4.31 CAD Cart
KUDM-20-M6-16-OR 20 M6 16 14 2.5 10 14 OR 4.31 CAD Cart
KUDM-20-M6-16-SG 20 M6 16 14 2.5 10 14 SG 4.31 CAD Cart
KUDM-20-M6-16-YW 20 M6 16 14 2.5 10 14 YW 4.31 CAD Cart
KUDM-20-M6-20-BK 20 M6 20 14 2.5 10 15 BK 4.31 CAD Cart
KUDM-20-M6-20-BL 20 M6 20 14 2.5 10 15 BL 4.31 CAD Cart
KUDM-20-M6-20-OR 20 M6 20 14 2.5 10 15 OR 4.31 CAD Cart
KUDM-20-M6-20-SG 20 M6 20 14 2.5 10 15 SG 4.31 CAD Cart
KUDM-20-M6-20-YW 20 M6 20 14 2.5 10 15 YW 4.31 CAD Cart
KUDM-20-M6-25-BK 20 M6 25 14 2.5 10 16 BK 4.31 CAD Cart
KUDM-20-M6-25-BL 20 M6 25 14 2.5 10 16 BL 4.31 CAD Cart
KUDM-20-M6-25-OR 20 M6 25 14 2.5 10 16 OR 4.31 CAD Cart
KUDM-20-M6-25-SG 20 M6 25 14 2.5 10 16 SG 4.31 CAD Cart
KUDM-20-M6-25-YW 20 M6 25 14 2.5 10 16 YW 4.31 CAD Cart
KUDM-25-M5-20-BK 25 M5 20 15.5 3 12 15 BK 5.07 CAD Cart
KUDM-25-M5-20-BL 25 M5 20 15.5 3 12 15 BL 5.07 CAD Cart
KUDM-25-M5-20-OR 25 M5 20 15.5 3 12 15 OR 5.07 CAD Cart
KUDM-25-M5-20-SG 25 M5 20 15.5 3 12 15 SG 5.07 CAD Cart
KUDM-25-M5-20-YW 25 M5 20 15.5 3 12 15 YW 5.07 CAD Cart
KUDM-25-M5-25-BK 25 M5 25 15.5 3 12 16 BK 5.07 CAD Cart
KUDM-25-M5-25-BL 25 M5 25 15.5 3 12 16 BL 5.07 CAD Cart
KUDM-25-M5-25-OR 25 M5 25 15.5 3 12 16 OR 5.07 CAD Cart
KUDM-25-M5-25-SG 25 M5 25 15.5 3 12 16 SG 5.07 CAD Cart
KUDM-25-M5-25-YW 25 M5 25 15.5 3 12 16 YW 5.07 CAD Cart
KUDM-25-M6-16-BK 25 M6 16 15.5 3 12 16 BK 5.07 CAD Cart
KUDM-25-M6-16-BL 25 M6 16 15.5 3 12 16 BL 5.07 CAD Cart
KUDM-25-M6-16-OR 25 M6 16 15.5 3 12 16 OR 5.07 CAD Cart
KUDM-25-M6-16-SG 25 M6 16 15.5 3 12 16 SG 5.07 CAD Cart
KUDM-25-M6-16-YW 25 M6 16 15.5 3 12 16 YW 5.07 CAD Cart
KUDM-25-M6-20-BK 25 M6 20 15.5 3 12 16 BK 5.07 CAD Cart
KUDM-25-M6-20-BL 25 M6 20 15.5 3 12 16 BL 5.07 CAD Cart
KUDM-25-M6-20-OR 25 M6 20 15.5 3 12 16 OR 5.07 CAD Cart
KUDM-25-M6-20-SG 25 M6 20 15.5 3 12 16 SG 5.07 CAD Cart
KUDM-25-M6-20-YW 25 M6 20 15.5 3 12 16 YW 5.07 CAD Cart
KUDM-25-M6-25-BK 25 M6 25 15.5 3 12 17 BK 5.07 CAD Cart
KUDM-25-M6-25-BL 25 M6 25 15.5 3 12 17 BL 5.07 CAD Cart
KUDM-25-M6-25-OR 25 M6 25 15.5 3 12 17 OR 5.07 CAD Cart
KUDM-25-M6-25-SG 25 M6 25 15.5 3 12 17 SG 5.07 CAD Cart
KUDM-25-M6-25-YW 25 M6 25 15.5 3 12 17 YW 5.07 CAD Cart
KUDM-32-M6-20-BK 32 M6 20 21 4 16 21 BK 5.53 CAD Cart
KUDM-32-M6-20-BL 32 M6 20 21 4 16 21 BL 5.53 CAD Cart
KUDM-32-M6-20-OR 32 M6 20 21 4 16 21 OR 5.53 CAD Cart
KUDM-32-M6-20-SG 32 M6 20 21 4 16 21 SG 5.53 CAD Cart
KUDM-32-M6-20-YW 32 M6 20 21 4 16 21 YW 5.53 CAD Cart
KUDM-32-M6-25-BK 32 M6 25 21 4 16 22 BK 5.53 CAD Cart
KUDM-32-M6-25-BL 32 M6 25 21 4 16 22 BL 5.53 CAD Cart
KUDM-32-M6-25-OR 32 M6 25 21 4 16 22 OR 5.53 CAD Cart
KUDM-32-M6-25-SG 32 M6 25 21 4 16 22 SG 5.53 CAD Cart
KUDM-32-M6-25-YW 32 M6 25 21 4 16 22 YW 5.53 CAD Cart
KUDM-32-M8-16-BK 32 M8 16 21 4 16 34 BK 5.53 CAD Cart
KUDM-32-M8-16-BL 32 M8 16 21 4 16 34 BL 5.53 CAD Cart
KUDM-32-M8-16-OR 32 M8 16 21 4 16 34 OR 5.53 CAD Cart
KUDM-32-M8-16-SG 32 M8 16 21 4 16 34 SG 5.53 CAD Cart
KUDM-32-M8-16-YW 32 M8 16 21 4 16 34 YW 5.53 CAD Cart
KUDM-32-M8-20-BK 32 M8 20 21 4 16 35 BK 5.53 CAD Cart
KUDM-32-M8-20-BL 32 M8 20 21 4 16 35 BL 5.53 CAD Cart
KUDM-32-M8-20-OR 32 M8 20 21 4 16 35 OR 5.53 CAD Cart
KUDM-32-M8-20-SG 32 M8 20 21 4 16 35 SG 5.53 CAD Cart
KUDM-32-M8-20-YW 32 M8 20 21 4 16 35 YW 5.53 CAD Cart
KUDM-32-M8-25-BK 32 M8 25 21 4 16 37 BK 5.53 CAD Cart
KUDM-32-M8-25-BL 32 M8 25 21 4 16 37 BL 5.53 CAD Cart
KUDM-32-M8-25-OR 32 M8 25 21 4 16 37 OR 5.53 CAD Cart
KUDM-32-M8-25-SG 32 M8 25 21 4 16 37 SG 5.53 CAD Cart
KUDM-32-M8-25-YW 32 M8 25 21 4 16 37 YW 5.53 CAD Cart
KUDM-40-M8-16-BK 40 M8 16 25 4 19.5 48 BK 7.22 CAD Cart
KUDM-40-M8-16-BL 40 M8 16 25 4 19.5 48 BL 7.22 CAD Cart
KUDM-40-M8-16-OR 40 M8 16 25 4 19.5 48 OR 7.22 CAD Cart
KUDM-40-M8-16-SG 40 M8 16 25 4 19.5 48 SG 7.22 CAD Cart
KUDM-40-M8-16-YW 40 M8 16 25 4 19.5 48 YW 7.22 CAD Cart
KUDM-40-M8-20-BK 40 M8 20 25 4 19.5 50 BK 7.22 CAD Cart
KUDM-40-M8-20-BL 40 M8 20 25 4 19.5 50 BL 7.22 CAD Cart
KUDM-40-M8-20-OR 40 M8 20 25 4 19.5 50 OR 7.22 CAD Cart
KUDM-40-M8-20-SG 40 M8 20 25 4 19.5 50 SG 7.22 CAD Cart
KUDM-40-M8-20-YW 40 M8 20 25 4 19.5 50 YW 7.22 CAD Cart
KUDM-40-M8-25-BK 40 M8 25 25 4 19.5 52 BK 7.22 CAD Cart
KUDM-40-M8-25-BL 40 M8 25 25 4 19.5 52 BL 7.22 CAD Cart
KUDM-40-M8-25-OR 40 M8 25 25 4 19.5 52 OR 7.22 CAD Cart
KUDM-40-M8-25-SG 40 M8 25 25 4 19.5 52 SG 7.22 CAD Cart
KUDM-40-M8-25-YW 40 M8 25 25 4 19.5 52 YW 7.22 CAD Cart
KUDM-40-M8-30-BK 40 M8 30 25 4 19.5 54 BK 7.22 CAD Cart
KUDM-40-M8-30-BL 40 M8 30 25 4 19.5 54 BL 7.22 CAD Cart
KUDM-40-M8-30-OR 40 M8 30 25 4 19.5 54 OR 7.22 CAD Cart
KUDM-40-M8-30-SG 40 M8 30 25 4 19.5 54 SG 7.22 CAD Cart
KUDM-40-M8-30-YW 40 M8 30 25 4 19.5 54 YW 7.22 CAD Cart
KUDM-40-M8-40-BK 40 M8 40 25 4 19.5 56 BK 7.22 CAD Cart
KUDM-40-M8-40-BL 40 M8 40 25 4 19.5 56 BL 7.22 CAD Cart
KUDM-40-M8-40-OR 40 M8 40 25 4 19.5 56 OR 7.22 CAD Cart
KUDM-40-M8-40-SG 40 M8 40 25 4 19.5 56 SG 7.22 CAD Cart
KUDM-40-M8-40-YW 40 M8 40 25 4 19.5 56 YW 7.22 CAD Cart
KUDM-40-M8-50-BK 40 M8 50 25 4 19.5 59 BK 7.22 CAD Cart
KUDM-40-M8-50-BL 40 M8 50 25 4 19.5 59 BL 7.22 CAD Cart
KUDM-40-M8-50-OR 40 M8 50 25 4 19.5 59 OR 7.22 CAD Cart
KUDM-40-M8-50-SG 40 M8 50 25 4 19.5 59 SG 7.22 CAD Cart
KUDM-40-M8-50-YW 40 M8 50 25 4 19.5 59 YW 7.22 CAD Cart
KUDM-40-M10-20-BK 40 M10 20 25 4 19.5 67 BK 7.22 CAD Cart
KUDM-40-M10-20-BL 40 M10 20 25 4 19.5 67 BL 7.22 CAD Cart
KUDM-40-M10-20-OR 40 M10 20 25 4 19.5 67 OR 7.22 CAD Cart
KUDM-40-M10-20-SG 40 M10 20 25 4 19.5 67 SG 7.22 CAD Cart
KUDM-40-M10-20-YW 40 M10 20 25 4 19.5 67 YW 7.22 CAD Cart
KUDM-40-M10-25-BK 40 M10 25 25 4 19.5 70 BK 7.22 CAD Cart
KUDM-40-M10-25-BL 40 M10 25 25 4 19.5 70 BL 7.22 CAD Cart
KUDM-40-M10-25-OR 40 M10 25 25 4 19.5 70 OR 7.22 CAD Cart
KUDM-40-M10-25-SG 40 M10 25 25 4 19.5 70 SG 7.22 CAD Cart
KUDM-40-M10-25-YW 40 M10 25 25 4 19.5 70 YW 7.22 CAD Cart
KUDM-40-M10-30-BK 40 M10 30 25 4 19.5 73 BK 7.22 CAD Cart
KUDM-40-M10-30-BL 40 M10 30 25 4 19.5 73 BL 7.22 CAD Cart
KUDM-40-M10-30-OR 40 M10 30 25 4 19.5 73 OR 7.22 CAD Cart
KUDM-40-M10-30-SG 40 M10 30 25 4 19.5 73 SG 7.22 CAD Cart
KUDM-40-M10-30-YW 40 M10 30 25 4 19.5 73 YW 7.22 CAD Cart
KUDM-40-M10-40-BK 40 M10 40 25 4 19.5 77 BK 7.22 CAD Cart
KUDM-40-M10-40-BL 40 M10 40 25 4 19.5 77 BL 7.22 CAD Cart
KUDM-40-M10-40-OR 40 M10 40 25 4 19.5 77 OR 7.22 CAD Cart
KUDM-40-M10-40-SG 40 M10 40 25 4 19.5 77 SG 7.22 CAD Cart
KUDM-40-M10-40-YW 40 M10 40 25 4 19.5 77 YW 7.22 CAD Cart
KUDM-40-M10-50-BK 40 M10 50 25 4 19.5 82 BK 7.22 CAD Cart
KUDM-40-M10-50-BL 40 M10 50 25 4 19.5 82 BL 7.22 CAD Cart
KUDM-40-M10-50-OR 40 M10 50 25 4 19.5 82 OR 7.22 CAD Cart
KUDM-40-M10-50-SG 40 M10 50 25 4 19.5 82 SG 7.22 CAD Cart
KUDM-40-M10-50-YW 40 M10 50 25 4 19.5 82 YW 7.22 CAD Cart

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

KUDM
knob Nylon 6 (Various Color)
Thread Part SWCH10R
Trivalent Chromate Treatment

Characteristics

  • Designed in consideration of the seven principles of universal design. A shape for easy application of forces and operations.
  • About Universal Design ⇒Universal design UDEX® series
  • A rich variety of thread sizes from M3 to M10 are available.
  • Five-color variations support the color universal design of machines / devices. Two-tone color of dark gray and various colors.
  • Types and thread part materials can be selected by a product code.
Product Code Type Thread Part Material
KUDM Male Screw Made of Steel
KUDMS Male Screw Made of Stainless Steel
KUDF Female Screw Made of Steel
KUDFS Female Screw Made of Stainless Steel
  • Knob colors can be selected by the end symbol of the part number.
End Symbol Knob Color
BK Matte black
SG Matte silver
OR Matte orange
BL Matte blue
YW Matte yellow

Related Products

Plastic wing knob of the universal design KUWM is available.
KUWMKUWMSKUWFKUWFS

KUDMPlastic Miniature Knob


Related Services

Product List

Customer Service

  • Usage Method
  • Technical Question
  • Customization Products

NBK America LLC

9:00 to 17:00 on weekdays, Eastern Standard Time
