• Pulls

UNFS-80H

U - shaped Pull

Stainless Steel Pull

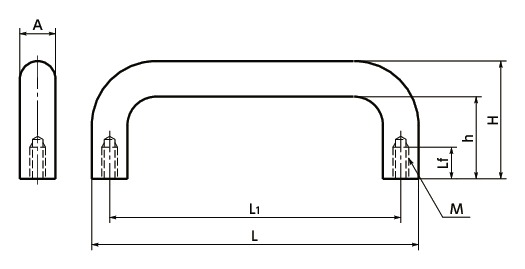

Dimension Drawing

UNFS-HU - shaped Pull寸法図

Specs/CAD

Unit : mm

Part Number L1 M Lf H h A L Mass
(g)
Allowable load*1
(N)
Screw supply service Screw size Price
(USD)
CAD
Download
Add to Cart
UNFS-80H 80 M5 10 45 35 10 90 86 1000 M5×12 5.84 CAD Cart

*1: Allowed load for a person.

Material/Finish

UNFS-H
Main body SUS304
Barrel Polishing
Hex Socket Head Cap Screws
(Screw supply service)
SUSXM7

Characteristics

  • Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).

Related Products

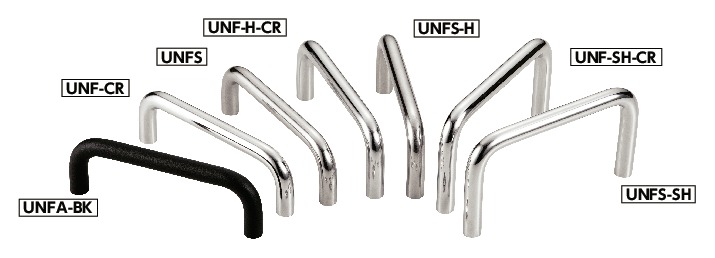

U - shaped Pulls with the washer UNF-WUNFS-WUNFA-W is available.
