Hints for Correctly Using NBK Products
The video is an example using SCS-F(SCS-F). You can perform the same operation using this product.
Dimension Drawing
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D | d | B | Mass (g) |
Price (USD) |
CAD Download |
Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| SCSS-M10-25-FB | M10 | 1.5 | 25 | 7 | 6 | 5 | 11 | 13.45 | CAD | Cart |
＊： SCSS-M8-10-FBSCSS-M10-12-FBSCSS-M12-16-FBSCSS-M16-20-FB has a shallow Hex Socket hole depth.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish

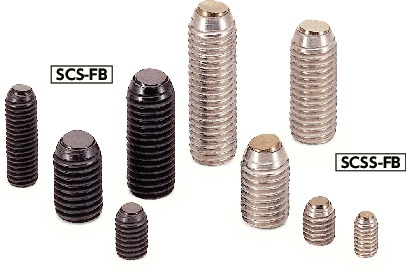

| SCSS-FB Made of Stainless Steel |
|
|---|---|
| Thread Part |
SUSXM7 |
| Ball | SUS440C (hardness: 55-60 HRC) Temper Color (Brown) |
Characteristics
- The ball rotates flexibly . The reversal protection mechanism always ensures secure clamping on the flat plane on the ball.
- We also produce products of special specifications, e.g. nominal diameter of thread, length and surface treatment. Please feel free to contact our customer service.
