Date Published:May. 10. 2020
Solving common issues with Semiconductor Manufacturing Equipment（Post-Process）

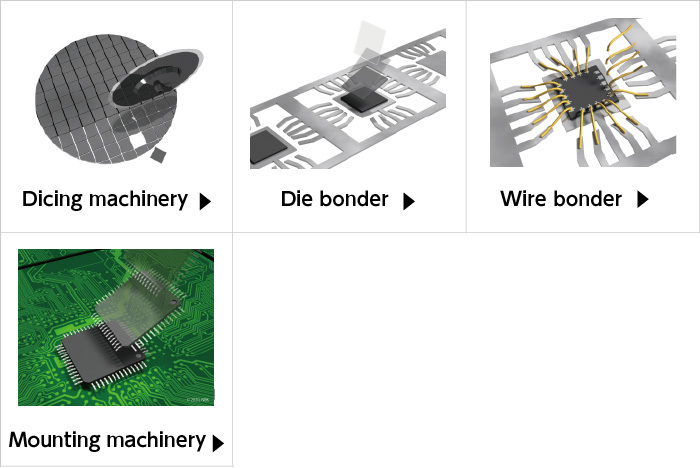

Dicing machinery
Dicing process
Improved productivity is required
High-strength components and components to increase the rigidity of the equipment can be used to improve equipment responsivity.
Realizes even greater servomotor gain, leading to reduced stabilization time.
Characteristics required for drive components：High gain support
|
Recommended product |
|
|---|---|
|
High-gain Rubber Couplings |
Improved equipment accuracy is required
Screws with low thermal expansion and minimal dimension changes should be used.
Characteristics required for special screws：Low thermal expansion
|
Recommended product |
|
|---|---|
|
Super Invar Screws |
Components must be prevented from loosening due to vibrations
High-strength screws achieve greater fastening strength than regular screws, and consequently have loosening-preventing effects.
Characteristics required for special screws：High strength
|
High strength |
Heat resistance |
Chemical resistance |
Non-Magnetic |
Recommended product |
|
|---|---|---|---|---|---|
|
High-Strength Stainless Steel Screws |
○ |
○ |
○ |
○ |
Die bonder
Mounting process
Achieves high-speed bonding
Realizes even greater servomotor gain, leading to reduced stabilization time.
Characteristics required for couplings：High gain support
|
Recommended product |
|
|---|---|
|
High-gain Rubber Couplings |
Prevents components from loosening due to vibrations
High-strength screws achieve greater fastening strength than regular screws, and consequently have loosening-preventing effects.
Characteristics required for special screws：High strength
|
High strength |
Chemical resistance |
Non-Magnetic |
Lightweight |
Recommended product |
|
|---|---|---|---|---|---|
|
Titanium Screws |
○ |
○ |
○ |
○ |
Wire bonder
Bonding
Achieves high-speed bonding
Realizes even greater servomotor gain, leading to reduced stabilization time.
Characteristics required for couplings：High gain support
|
Recommended product |
|
|---|---|
|
High-gain Rubber Couplings |
The equipment needs to weigh less to reduce the dynamic load.
Characteristics required for special screws：Lightweight Space-saving
|
Lightweight |
High strength |
Chemical resistance |
Non-Magnetic |
Space-saving |
Recommended product |
|
|---|---|---|---|---|---|---|
|
Titanium Screws |
○ |
○ |
○ |
○ |
|
|
|
Miniature Screws |
|
○ |
||||
Low Profile Screws |
|
○ |
Space-saving screws See here for further details▶
Prevents components from loosening or falling out due to vibrations
Screws with a fall-out prevention mechanism (captive screws) should be used so that they won't fall out even if loosened by vibrations.
Characteristics required for special screws：Fall-out prevention
|
Recommended product |
|
|---|---|
|
Captive Screws |
High-strength screws achieve greater fastening strength than regular screws, and consequently have loosening-preventing effects.
Characteristics required for components：High strength
|
High strength |
Heat resistance |
Chemical resistance |
Non-Magnetic |
Recommended product |
|
|---|---|---|---|---|---|
|
SUS316L |
○ |
○ |
○ |
○ |
Mounting machinery
Mounting process
Achieves high-speed bonding
Realizes even greater servomotor gain, leading to reduced stabilization time.
Characteristics required for couplings：High gain support
|
Recommended product |
|
|---|---|
|
High-gain Rubber Couplings |
The equipment needs to weigh less to reduce the dynamic load.
Characteristics required for special screws：Lightweight
|
High strength |
Chemical resistance |
Non-Magnetic |
Lightweight |
Recommended product |
|
|---|---|---|---|---|---|
|
Titanium Screws |
○ |
○ |
○ |
○ |
